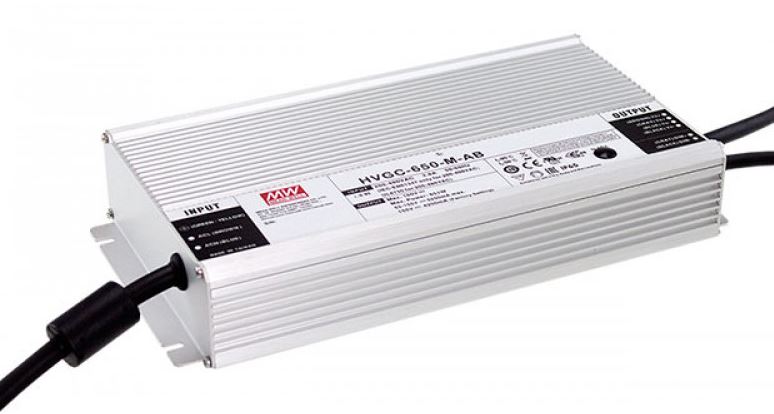

HVGC-650 High Performance LED Driver

Product information "HVGC-650 High Performance LED Driver"

High-performance LED Driver HVGC-650 Watt for 2,8mA-11,2mA incl. 3 in 1 Dimming Function / DALI

Product Description:

HVGC-650 series is a 650W LED AC/DC driver featuring the constant power mode with wide output voltage range. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 2800mA and 11200mA. Thanks to the high efficiency up to 95.5%, with the fanless design, all models are able to operate for -40°C to +85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture and stadium lighting.
HVGC-650 is equipped with various function options, such as dimming methodologies in order to provide the optimal design flexibility for LED lighting system.

HVGC-650

Features of HVCG650 series:

  • Wide input range 180 ~ 528VAC
  • Constant power mode output
  • Metal housing with Class I design
  • Surge protection with 8KV/4KV
  • Built-in active PFC function
  • IP67 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
  • Auxiliary DC output optional
  • Typical lifetime>50000 hours
  • 5 years warranty
  • Applications:
    • Harbor lighting
    • LED high-bay lighting
    • Parking lot lighting
    • LED fishing lamp
    • Horticulture lighting
    • Stadium lighting

Technical Data for HVGC-650A-x-x (Rated current, Type):

Model -L-AB   -M-AB -H-AB  -U-AB
Rated current
2800 mA  4200 mA  5600 mA  11200 mA
Version For LED lighting applications (DIN EN61347)
Nominal voltage 230 VAC
Min. input voltage 180 VAC
Max. input voltage 528 VAC
Constant current region 92,8-232 VDC 62-155 VDC 46,4-116 VDC 24-58 VDC
Rated power (output) 649,6 W 651,0 W 649,6 W 649,6 W
Frequency range 47-63 Hz
Efficiency 95,0 %  95,0 %  95,0 %  95,5 %
Working temperature  -40°C to +85°C
Storage temperature -40°C to +80°C
Type of construction Closed
Material (housing) Primary aluminium
Protection level IP67
Service life >50.000 h
Dimensions 280*144*48,5 mm (L*W*H)

The data sheet in the download tab provides further information.
Properties "HVGC-650 High Performance LED Driver"
#Kategoriefilter: LED-Treiber-alles mit CC
·Application/IP-Code: IP20 - IP44 (Indoor), IP65/67 (Outdoor)
·Constant Current: 2,8A, 4,2A, 5,6A, 11,2A
·Dimmable/Control: 1..10V, DALI, DALI2, PWM
·Meanwell Series: HVGC
·Power range: 250 - 1000 W
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry
