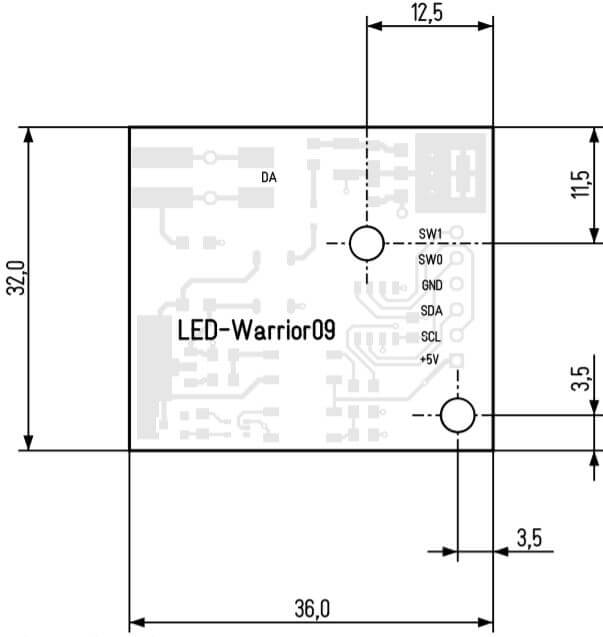

The LW09-01MOD is a ready to use module. It is primarily intended to be used as a I2C to IEC62386 bridge and needs a 5 V power supply. Two switches may be connected.
Features
IEC62386 master
I2C to IEC62386 bridge
Turns standard light switch into a IEC62386 master
According to DIN EN 62386-103
Minimal external circuitry
5V supply
Functional overview

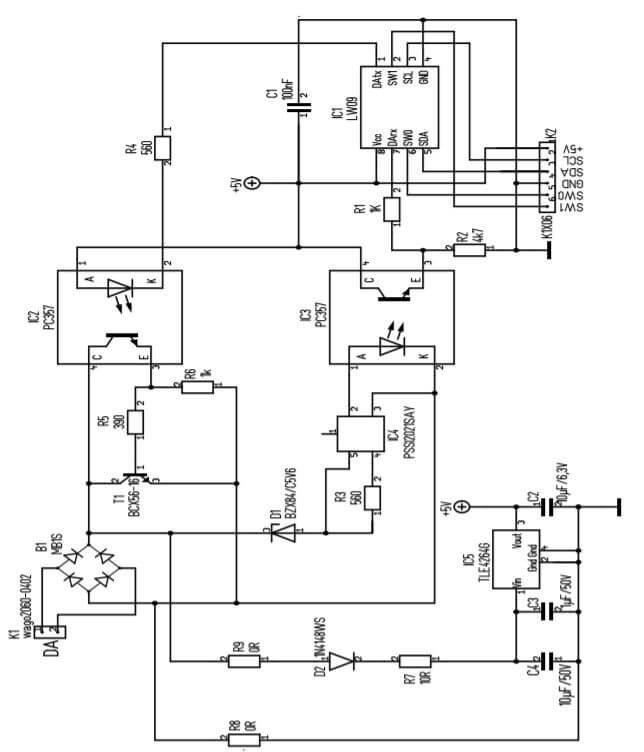

LED-Warrior09 is a type II IEC62386 master. It can coexist with other masters on the same bus but is not addressable. LED-Warrior09 generates the necessary IEC62386 commands to set light levels from simple I2C commands, or two switch inputs. Standard light switches can be turned into IEC62386 masters with the LED-Warrior09. The function of the two switch inputs is programmable via I2C. On/off switching and dimming can be controlled by one or two switches for individual IEC62386 ballasts, groups, or broadcast.
Operating specifications
Supply Voltage (+5V relative to GND)
4,5V to 5,25V
Operating temperature
-20°C to +65°C
IEC62386 input voltage (differential)
max. 24V
Supply current
max. 25 mA
