Lunatone DALI CS presence sensor

Variants from 113.73€ *
Net price: 95.57€

Prices incl. VAT plus shipping costs

Please select a variant first


Lunatone DALI presence detector CS Lunatone's compact DALI presence detector DALI CS with... more

Lunatone DALI presence detector CS

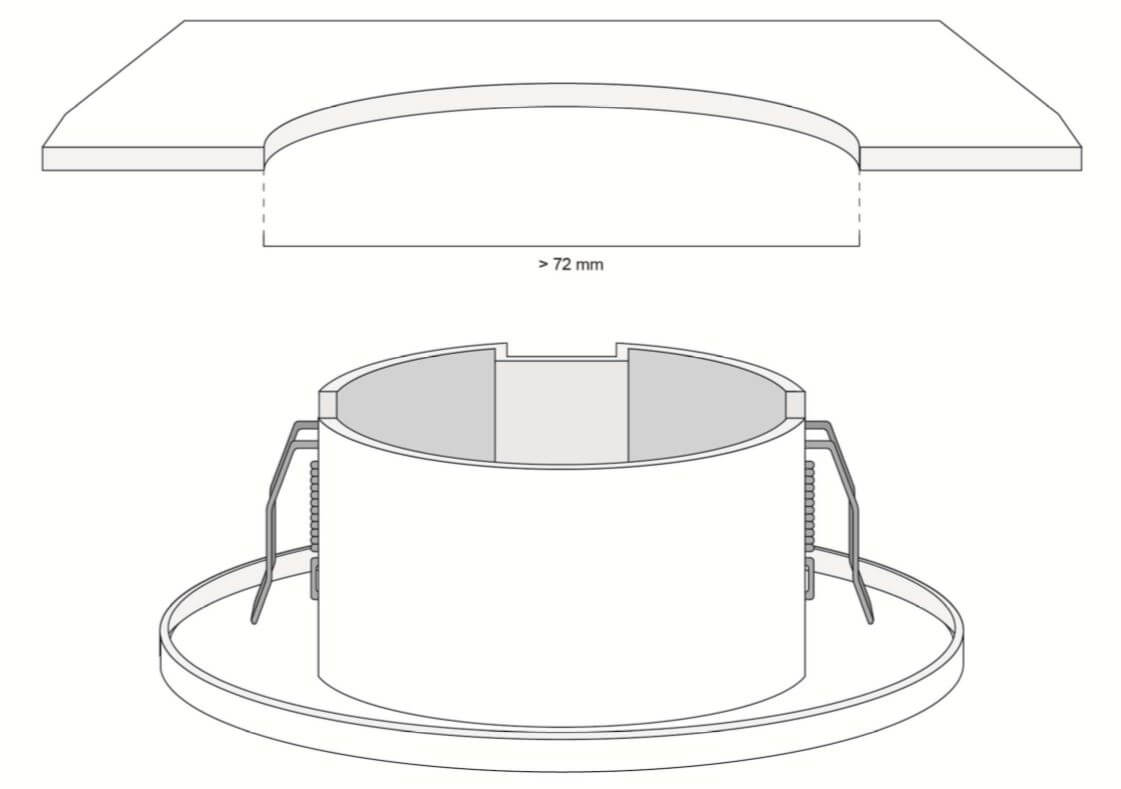

Lunatone's compact DALI presence detector DALI CS with integrated light and temperature sensor. The module can either be used directly to control the DALI system, or it can be used for measured value acquisition in conjunction with a central control system. The area of application ranges from office applications, corridors, classrooms to factory buildings. If there are several sensors in a group, they synchronize automatically. The device is suitable for direct mounting on installation boxes or in cavity walls; variants for surface mounting and false ceiling installation are available.

Technical data

Part number 89453862 89453862-15 89453862-O
Application Standard Hall Office
Principle PIR PIR PIR
Detection range 12m 15m 2,3m / 3m
Max. mounting height 8m 12m 3m
Zones 92 128 36 /48
Horizontal ±51° ±35,5° ±44°/±90°
Vertical ±46° ±34,5° ±44°/±90°
Min temperature difference >4°C >4°C >4°C
Light sensor range 0-2500lux
Resolution 1lux
Temperature sensor Range: -20°C to +70°C
Resolution: 1°C
Group selector switch Yes
Function programmable

Electrical data

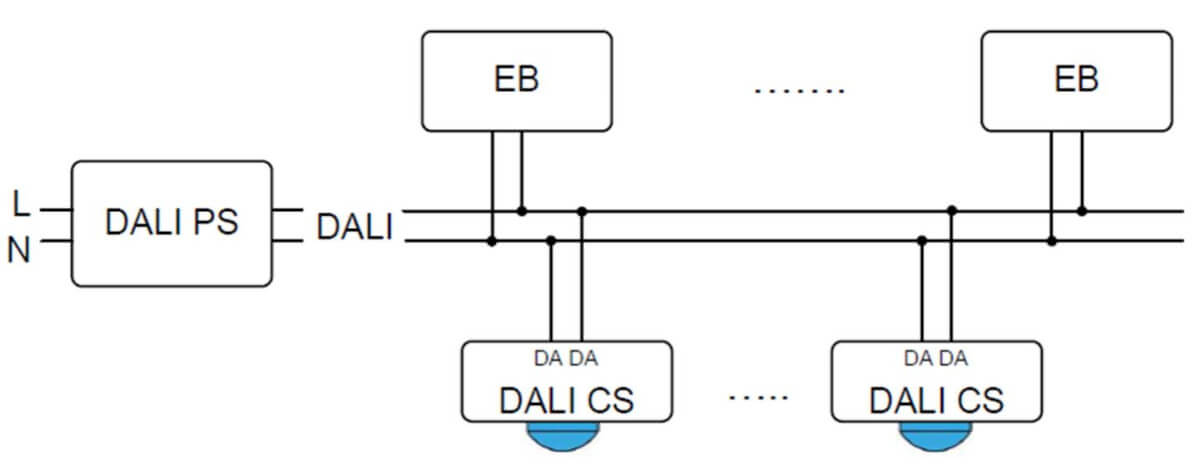

Supply from DALI bus (DALI voltage according to IEC62386)
Terminal designation DA, DA
Max. current consumption DALI 3.5 mA
Power consumption max. <100mW
Control DALI

Further data can be found in our download tab.

Related links to "Lunatone DALI CS presence sensor"
Compact DALI CS presence sensor from Lunatone more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Lunatone DALI CS
The data sheet for DALI CS and DALI CS PS 20mA
Read, write and discuss reviews... more
Customer evaluation for "Lunatone DALI CS presence sensor"
22 Oct 2020

Erfreulich empfindlich und vielseitig!

Hab die Office-Version im Einsatz. Reagiert im zentralen Präsenzbereich auf kleinste Bewegungen (Mausbewegungen aus Handgelenk, Montagehöhe ~2,65m).

5 Mar 2020

Sehr zuverlässig
