Lunatone DALI CS PS 20mA

136.12€ *
Net price: 114.39€

Prices incl. VAT plus shipping costs

Please select a variant first

versions:


piece

DALI CS PS 20mA by Lunatone  The DALI CS PS 20mA is a compact DALI motion detector with... more

DALI CS PS 20mA by Lunatone

The DALI CS PS 20mA is a compact DALI motion detector with integrated light sensor. The module can either be used directly to control the DALI system, or it can be used for measured value acquisition in conjunction with a central control system. Various applications are possible, such as office applications, corridors, classrooms up to factory halls. The following settings can be made:

  • effective range
  • DALI command on/off
  • activation / deactivation of the individual sensors
  • constant light control
  • hold time

If there are several sensors in a group, they synchronize automatically.

Technical data

Part number 89453862 89453862-15 89453862-O
Application Standard Hall Office
Principle PIR PIR PIR
Detection range 12m 15m 2,3m / 3m
Max. mounting height 8m 12m 3m
Zones 92 128 36 /48
Horizontal ±51° ±35,5° ±44°/±90°
Vertical ±46° ±34,5° ±44°/±90°
Min temperature difference >4°C >4°C >4°C
Light sensor range 0-2500lux
Resolution 1lux
Temperature sensor -
Group selector switch No
Function programmable

Electrical data

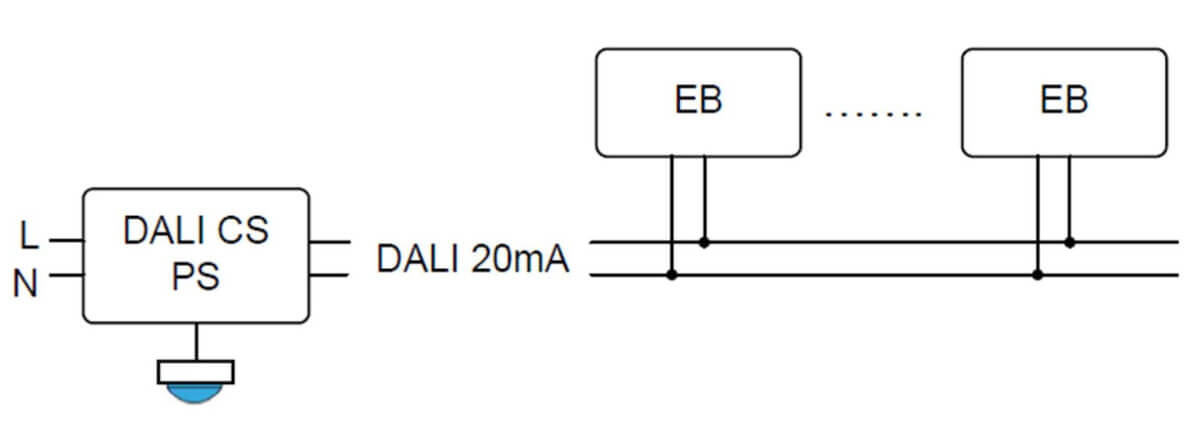

Supply From DALI bus (DALI voltage according to IEC62386 or mains (230Vac)
Terminal designation DA, DA or L, N(mains)
Max. current consumption DALI 3.5 mA
In mains operation Delivers up to 20mA
Control DALI

General data

Protction class II when mounted as intended
Kind of Protection IP20
Mounting Luminaire installation
Available colour  RAL9010

Further data can be found in our download tab.



Related links to "Lunatone DALI CS PS 20mA"
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Lunatone DALI CS PS 20mA
Data sheet for DALI CS and DALI CS PS 20mA
