Odion 3F XL

Variants from 208.25€ *
Net price: 175.00€
Content: 1

Prices incl. VAT plus shipping costs

D
Please select a variant first

Surface:

Beam angle:

Dimmability:

Colour temperature:


Stk

  • IL1395-35040361HA02
  • 35040361HA02
  • 1.432 kg
  • 8716197170694
  • Illuxtron International BV
Odoin 3F XL Trackspot These trackspots are available in 3000K and 4000K with different CRI... more

Odoin 3F XL Trackspot

These trackspots are available in 3000K and 4000K with different CRI types and body colors. The corresponding splints can be found here.

Meet the LUXEON STYLIST Series

LUXEON Stylist Series LEDs are designed specifically for restaurants, grocery and fashion stores. Various innovative technologies are used for this. Ask our sales department which solution best showcases your products.

New standards require new LEDs

The Illuminating Engineering Society (IES) has published a technical memorandum that includes a new method for measuring color rendering. The new color standard TM-30-15 promises to replace the color rendering index CRI as a color parameter. Various stability and spectrum parameters as well as a new set of color patterns have been introduced that are more representative of real-world objects than the pastel patterns used for the CRI parameters. The new color parameters also better represent LED-based Solid State Lighting (SSL).

The Television Lighting Consistency Index (TLCI)

Studies have shown that the industrial color rendering index CRI is not well suited for television because of the so-called floating white point. The new TLCI index mimics a complete TV camera and screen setting and takes into account the specific characteristics of the devices that affect color performance. The TLCI is calculated using software only. The only hardware required is a spectroradiometer to measure the spectral power distribution of the test fixture and a computer for the analysis program to perform the calculations. A light well with a high TLCI value allows the user to save costs because no subsequent color corrections are necessary.

The most important features of the Odoin 3F XL Trackspots:

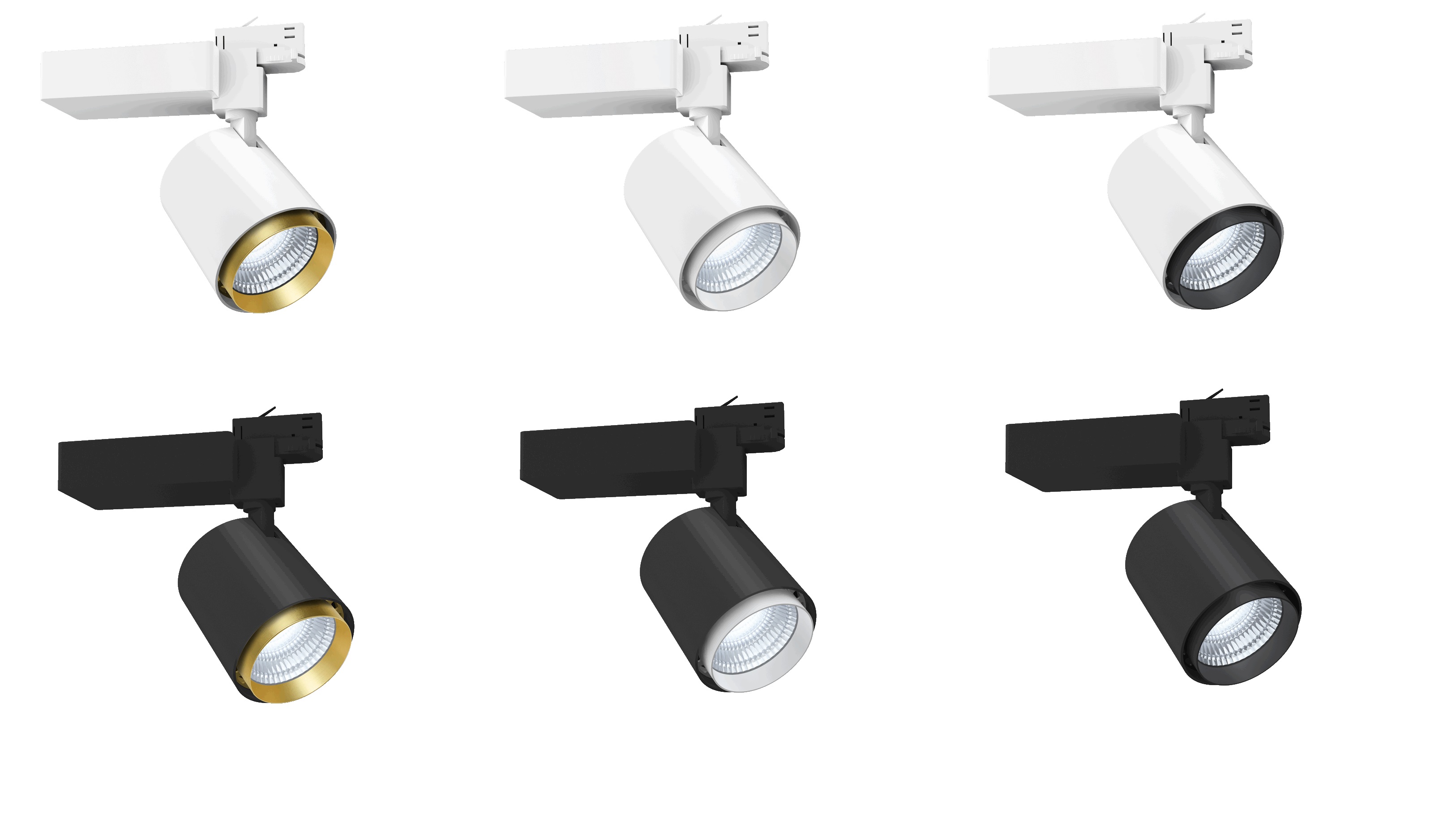

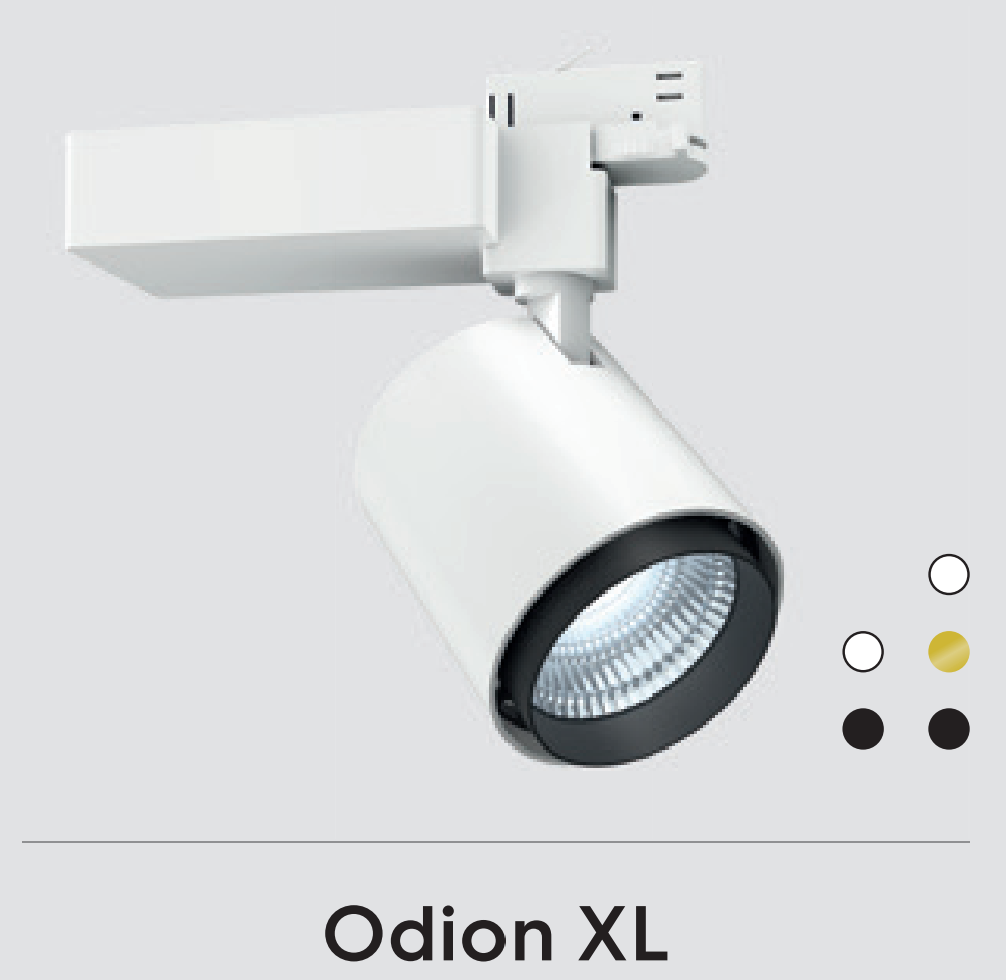

Body color

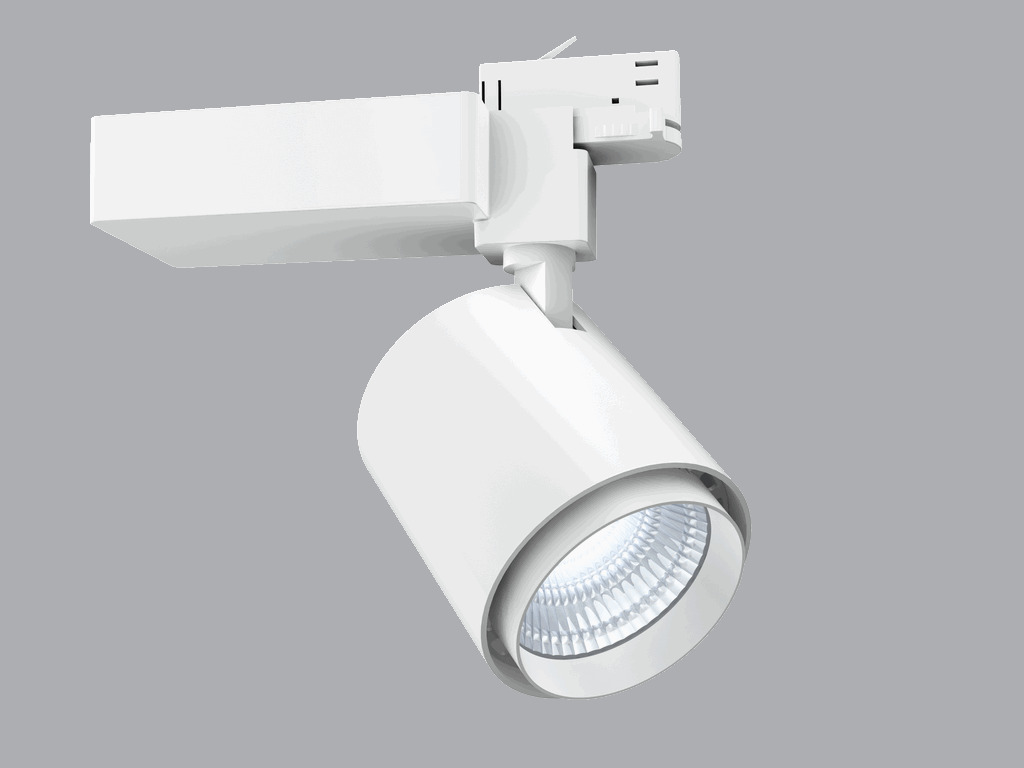

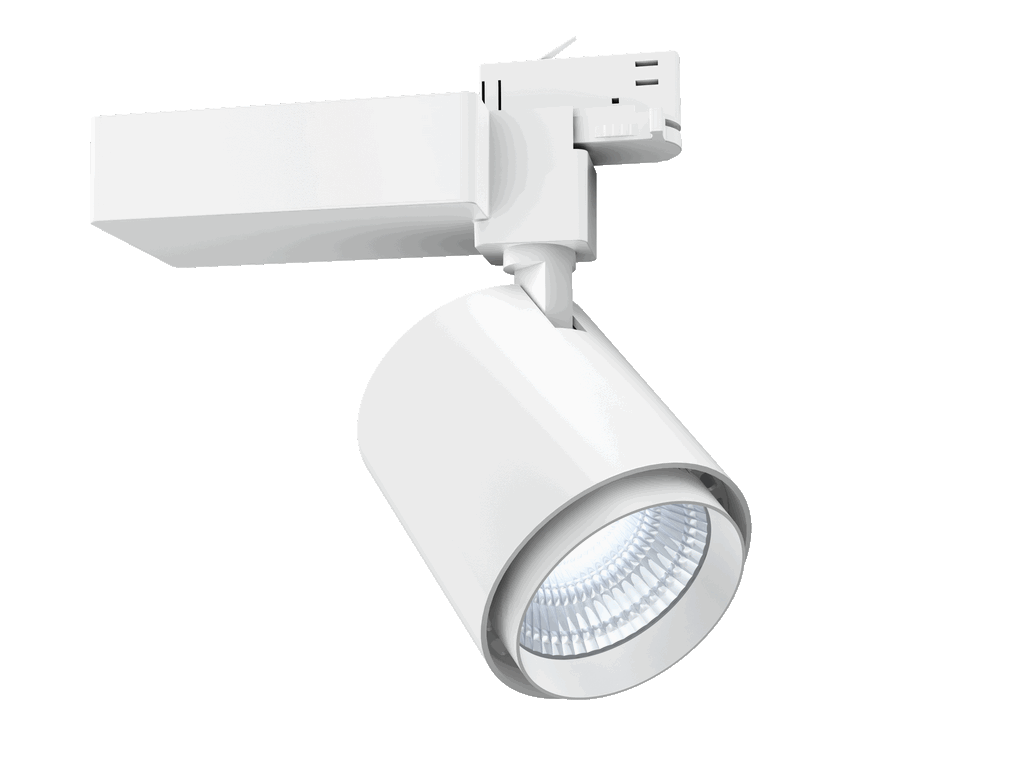

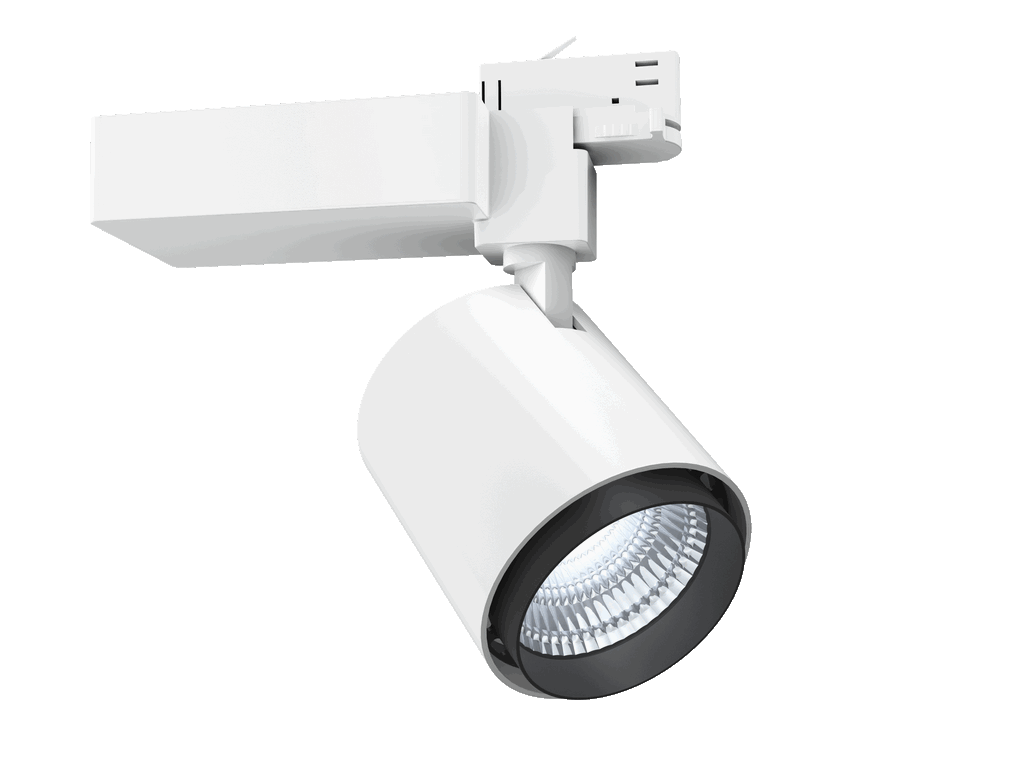

XX=65 Matte Whiteß / White

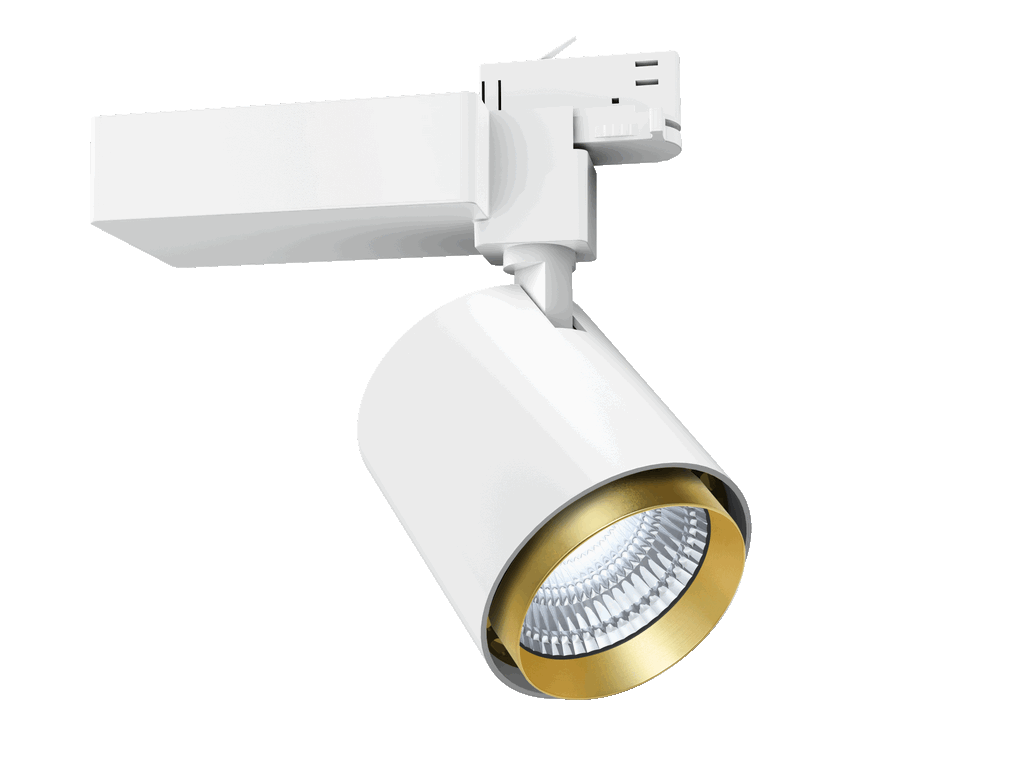

XX=61 Matte Whiteß / Gold

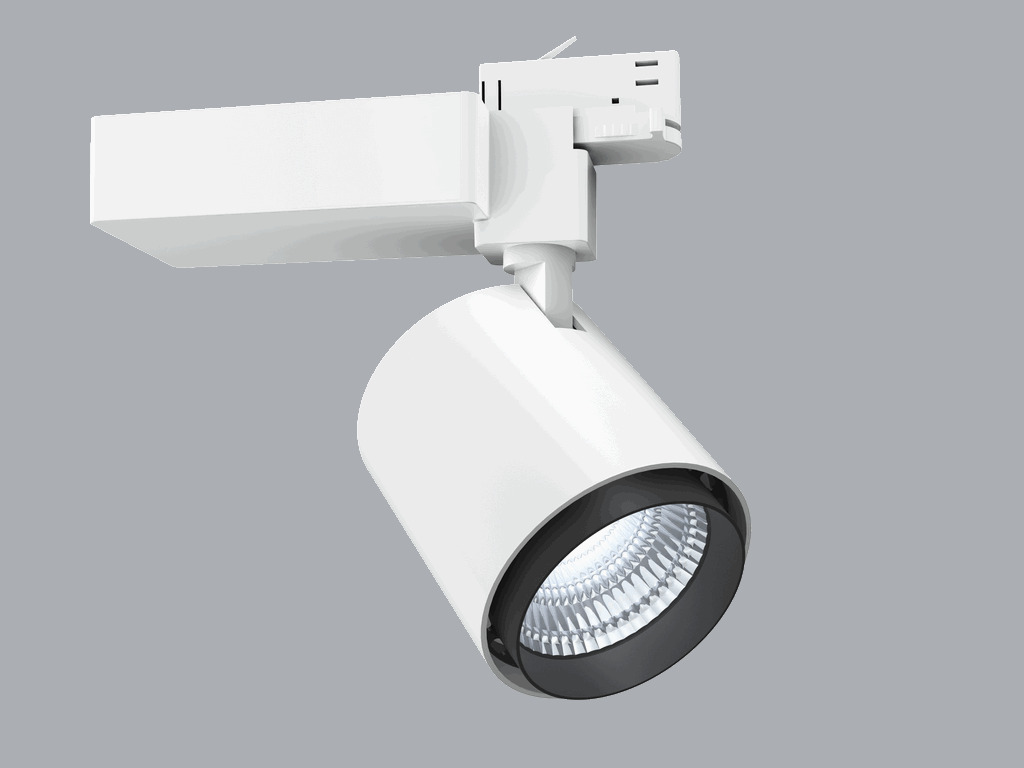

XX=62 Matte Whiteß / Black

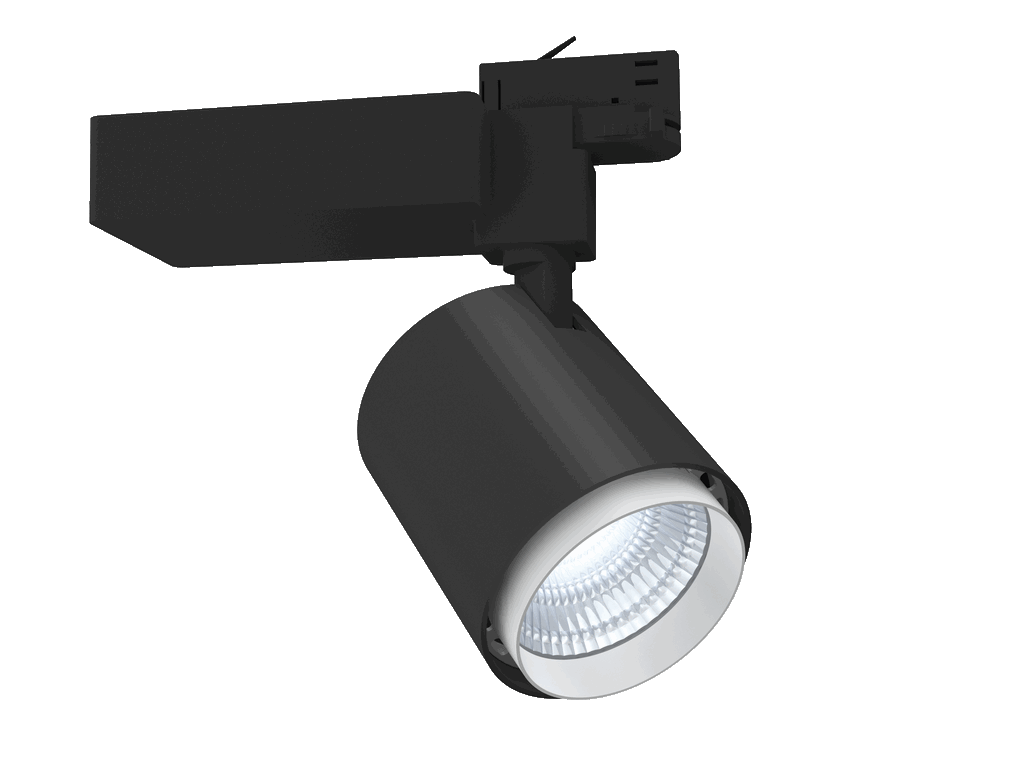

XX=76 Matte Black / White

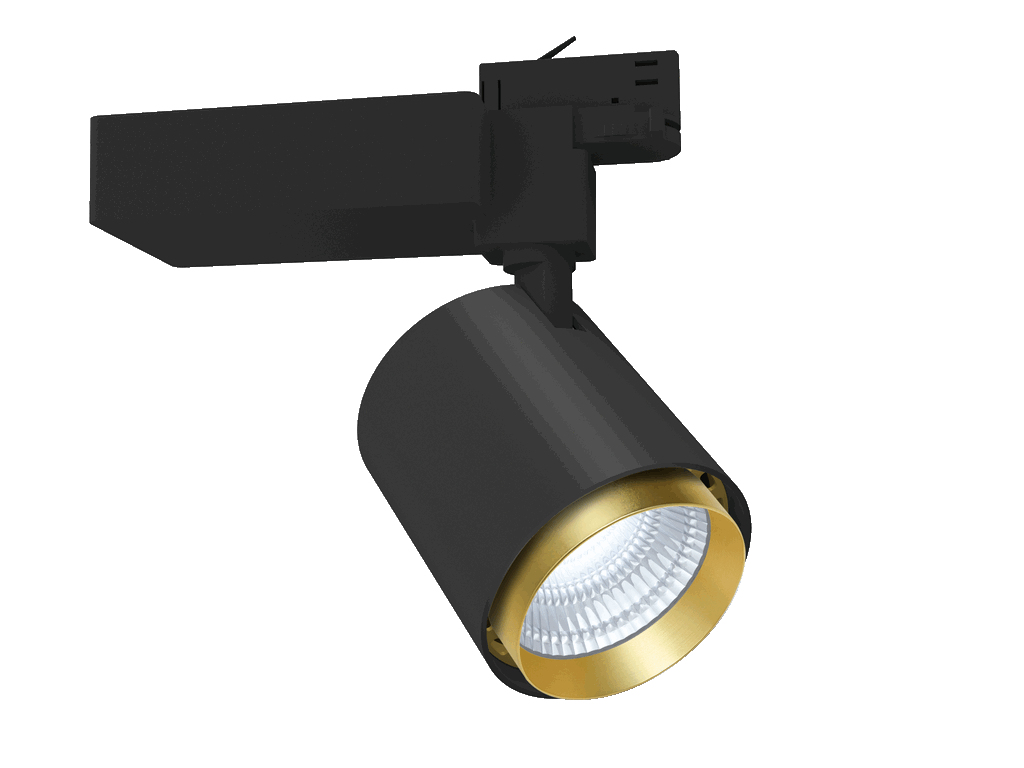

XX=71 Matte Black / Gold

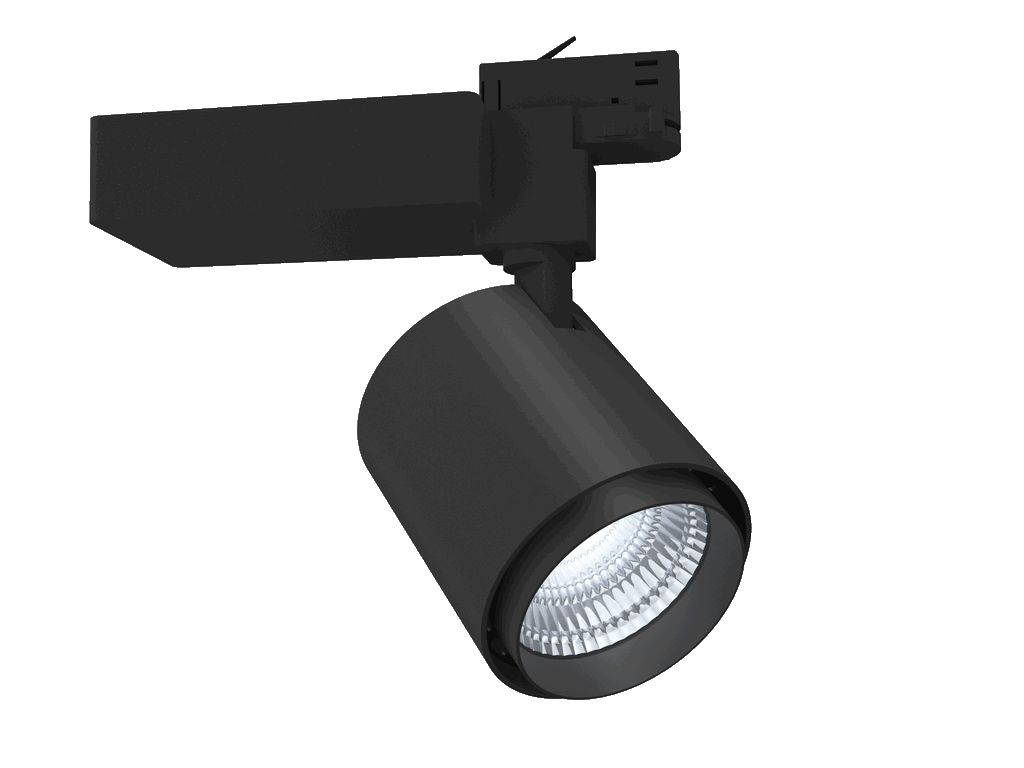

XX=72 Matte Black / Black

Material Housing: Die-cast aluminum
Reflector lens: polycarbonate

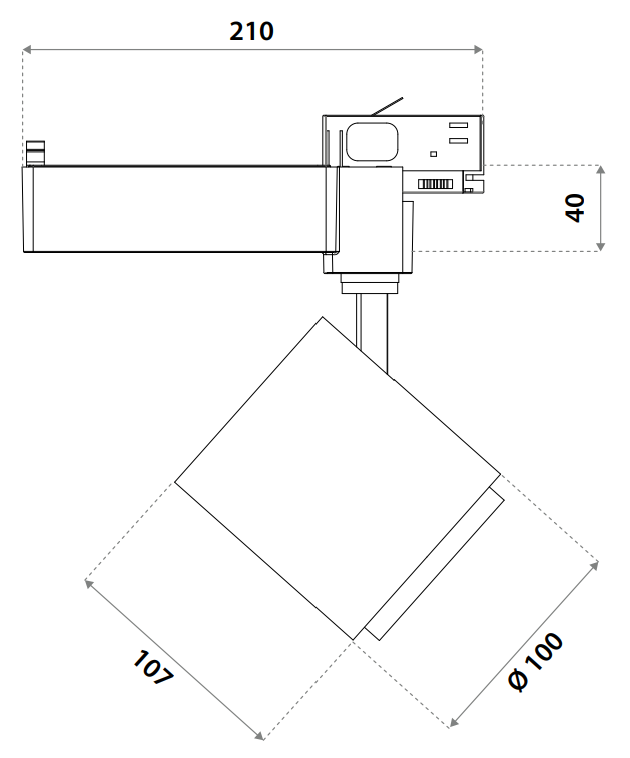

Dimensions 107mm x 100mm
rail height 14mm
Usage Interior
Beam angle (FWHM) 18° / 37° / 60°
CRI / Ra (typ.) 97 / 80
Color Consistency (MacAdam) SDCM3
IP code IP20 / IP44
IK code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25°C
L70B10 60,500 hours
L80B10 60,500 hours
L90B10 60,500 hours
safety character EN60598 / EN62031 / EN62471
EMC Directive EN55015
Warranty 7 years
Energy class  F (CRI97 3000K) / D (CRI80 3000K/4000K)

Odoin 3F XL

Pleasant shopping with Crispcolor TechnologyTM

In the world of retail, good looks are everything. Whether in an exclusive boutique or a large chain store, the importance of proper lighting for the store cannot be overstated. The LUXEON Stylist Series for fashion retail produces a brighter and more vibrant white; and fuller colors to show your merchandise in the best possible light. The CrispColor and CrispWhite technologies replace previous halogen, metal halide and incandescent lamps. The LUXEON Stylist series thus delivers exceptional lighting that will impress your customers.

Shining dresses; Crispwhite TechnologyTM

Only deep blue LEDs activate the Fluorescent Whitening Agents (FWAs), which are found in almost all textiles and fabrics of all colors. The CrispWhite Technology uses a patented double peak technology in the violet spectrum and makes the textile products appear even brighter and more attractive – and that (in contrast to the use of UV light) without any risk to health.

Atmoshere TechnologyTM for the perfect dinner

Whether it's an elegant restaurant with white tablecloths or a cozy café, more and more restaurants are striving to impress with an exceptional ambience. Forward-thinking restaurant owners understand that the right lighting plays a huge part in this. The LUXEON Stylist Series helps create unparalleled feel-good aesthetics in your restaurant without sacrificing efficiency. Because the LEDs are equipped with AtmoSphere Technology and consume less energy and have a much longer service life than traditional light sources. At the same time, the lamps produce less heat, which helps reduce cooling costs, especially in warmer areas.

Fresher food thanks to Freshfocus TechnologyTM

The LUXEON Stylist series whets the appetite! Grocery retailers know that the fresh produce section in their store attracts customers and should therefore be attractively presented. Optimizing the saturation of the most dominant colors in the range results in more impulse purchases, higher sales and less throw-away at the end of the day. The FreshFocus Technology helps to accentuate the freshness of food. For example, you can emphasize the red tones in the meat department, increase the appetite for bread or baked goods or present fish in natural colors. The LED lighting also saves energy and reduces environmental pollution.

Odoin 3F XL

Article number 350403XXHA02 350403XXHR02 350403XXHD02 350403XXHB02 350403XXHS02 350403XXHE02 350403XXHC02 350403XXHT02 350403XXHF02
Beam angle 18° 37° 60°
color temperature 3000K 4000K 3000K 4000K 3000K 4000K
Luminous flux 5000 lm 3750 lm 5700 lm 5000 lm 3750 lm 5700 lm 5000 lm 3750 lm 5700 lm
CRI 82 97 82 82 97 82 82 97 82
Lm/W (with ECG) 99 66 113 99 66 113 99 66 113
Type Onboard PSU
Input 1200 mA
Performance 50.5W 57.2 W 50.5W 57.2 W 50.5W 57.2 W
Input Current 5A 50µS
Protection class I
Pf 0.95


Data sheets of the Trackspot Odion 3F XL series see download tab. Note: The products from the manufacturer Illuxtron are made individually according to; Manufactured to your specification just for you. This also explains the longer delivery time of 1-3 weeks depending on workload.

Related links to "Odion 3F XL"
Elegant LED Trackspots from Illuxtron, diff. color temperature and housing colors. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Color Temperature/Color: 3000K, 4000K
Datasheet Odion 3F XL
