Strada 35

Product information "Strada 35"

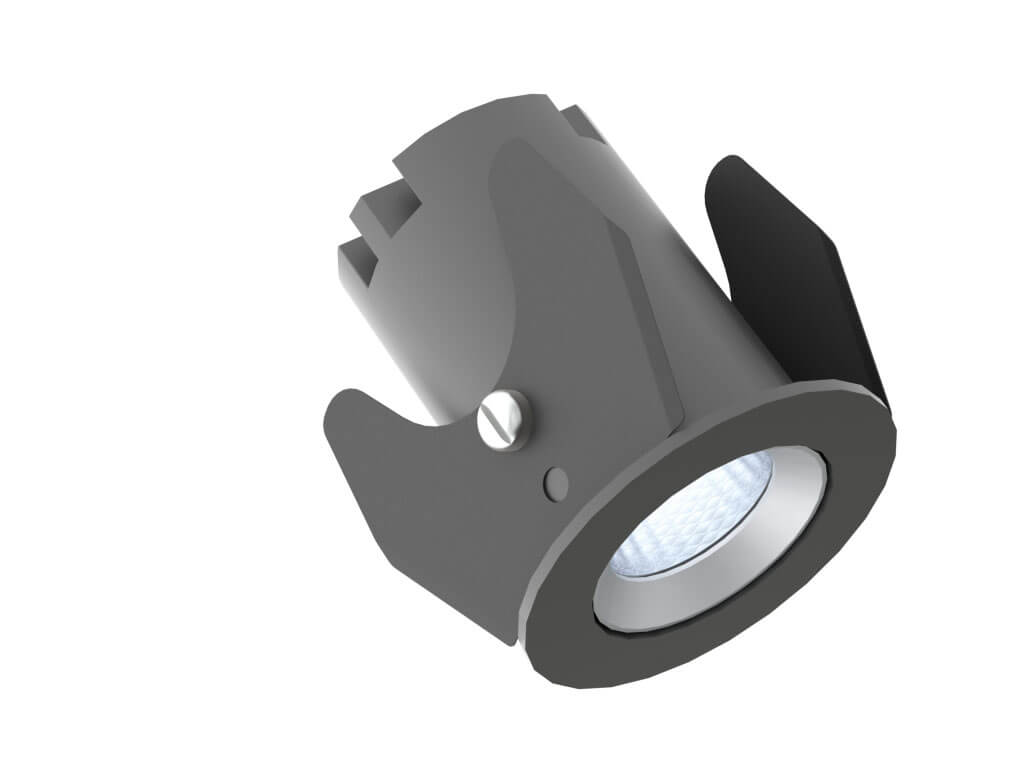

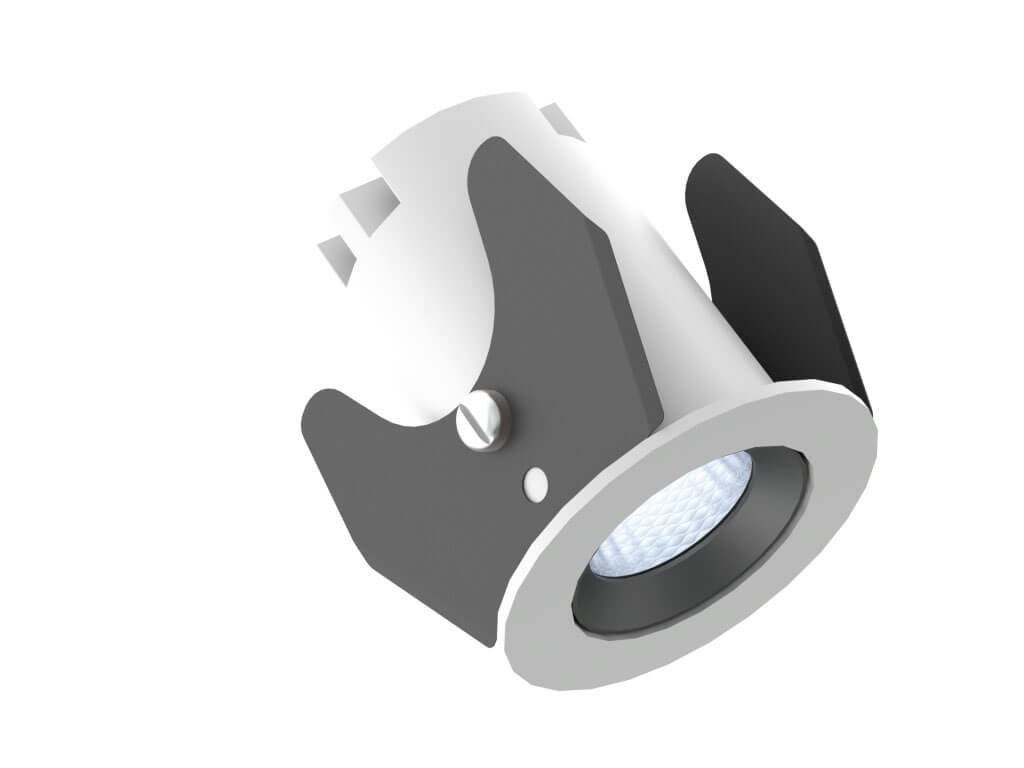

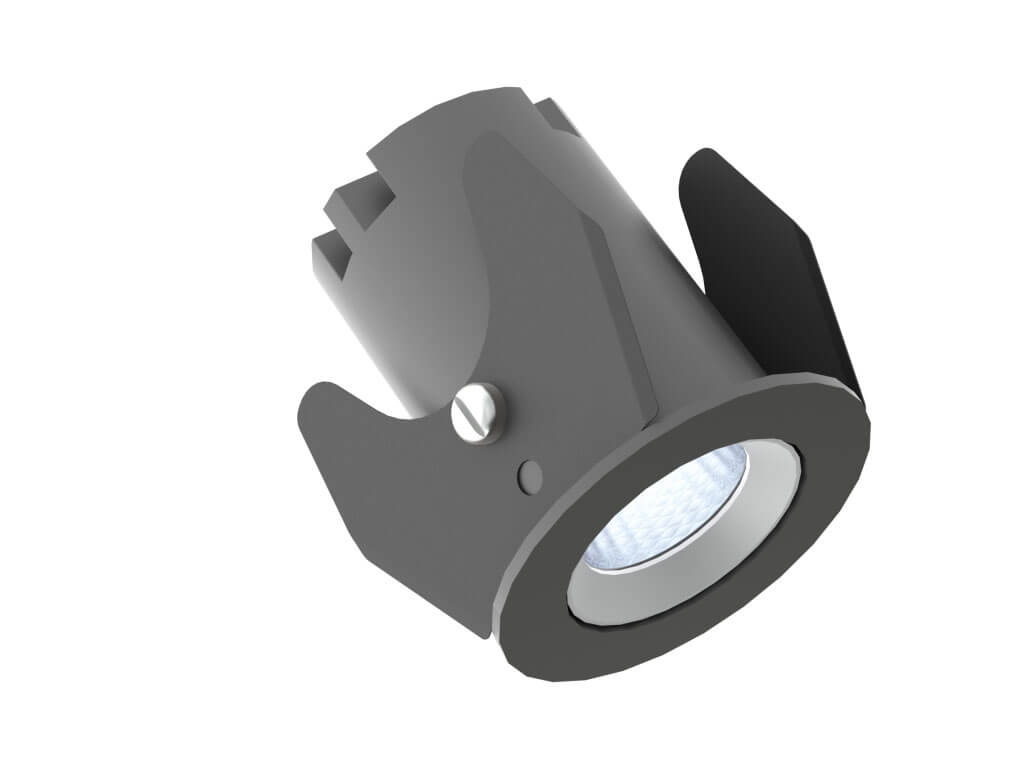

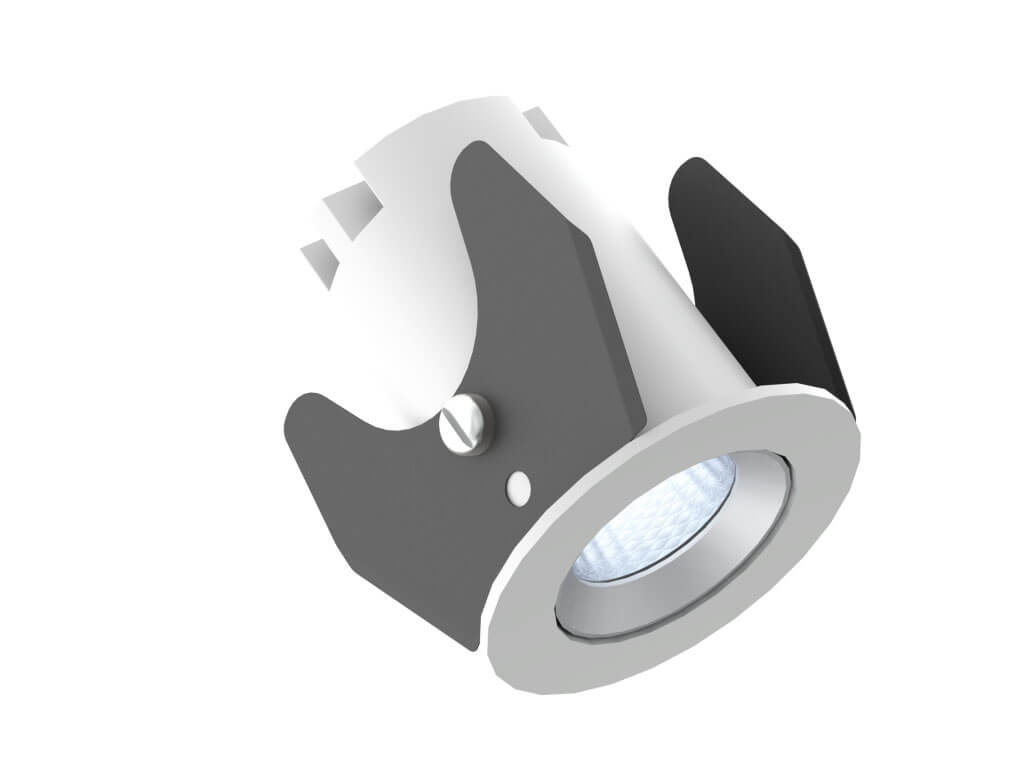

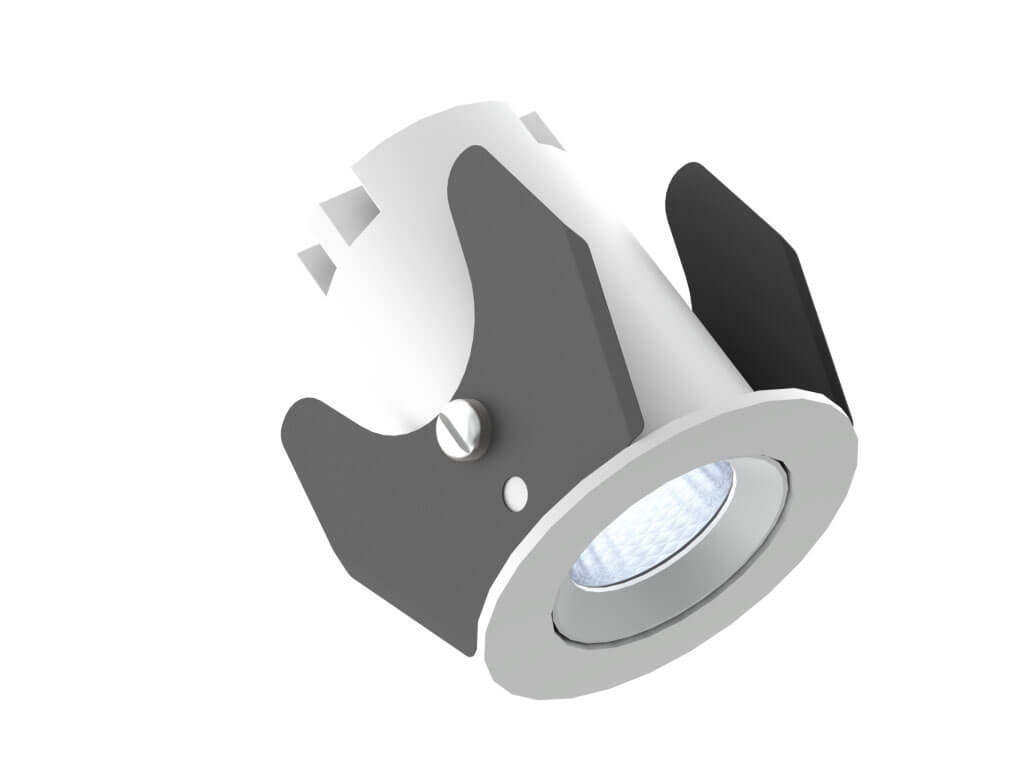

Illuxtron Strada 35

These Illuxtron LED downlights are available in 2700K, 3000K and 4000K. Different housing colours are selectable. They are available for 500mA (5.7W) or 230VAC (6.6W). Suitable for 35mm hole diameter.

The Strada series has a more robust appearance and is easy to install. It is also a lighting solution that brings light to life, ideal for restaurants, hospitality and residential applications.

Compact, technologically innovative and economical.

What makes these little powerhouses so special are the reflectors with micro-facets. These micro facets of the Strada 35 series provide perfect illumination of objects and rooms.
The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The adjustable version can be found here as Strada 50.


The most important technical details of the Strada 35 series:

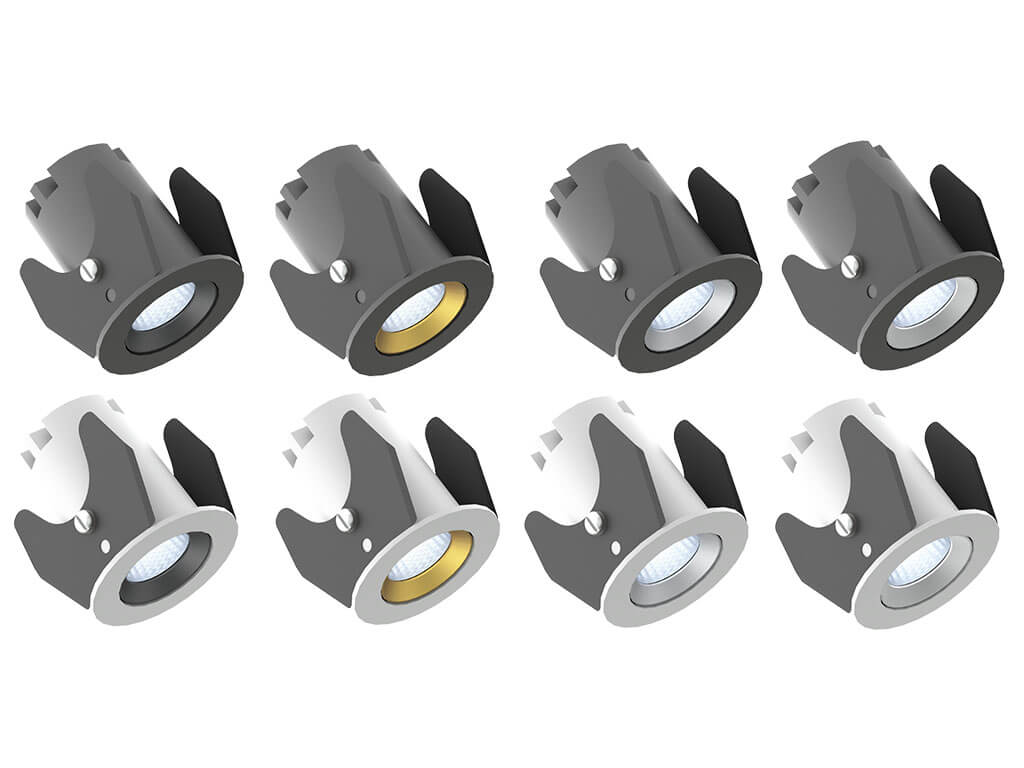

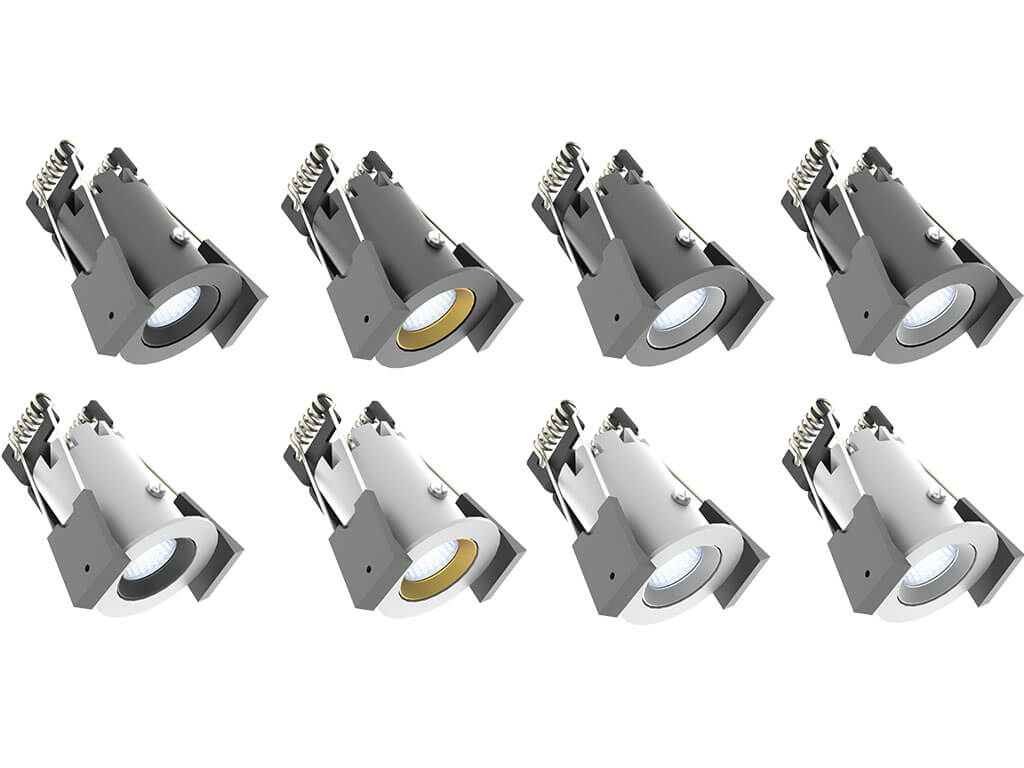

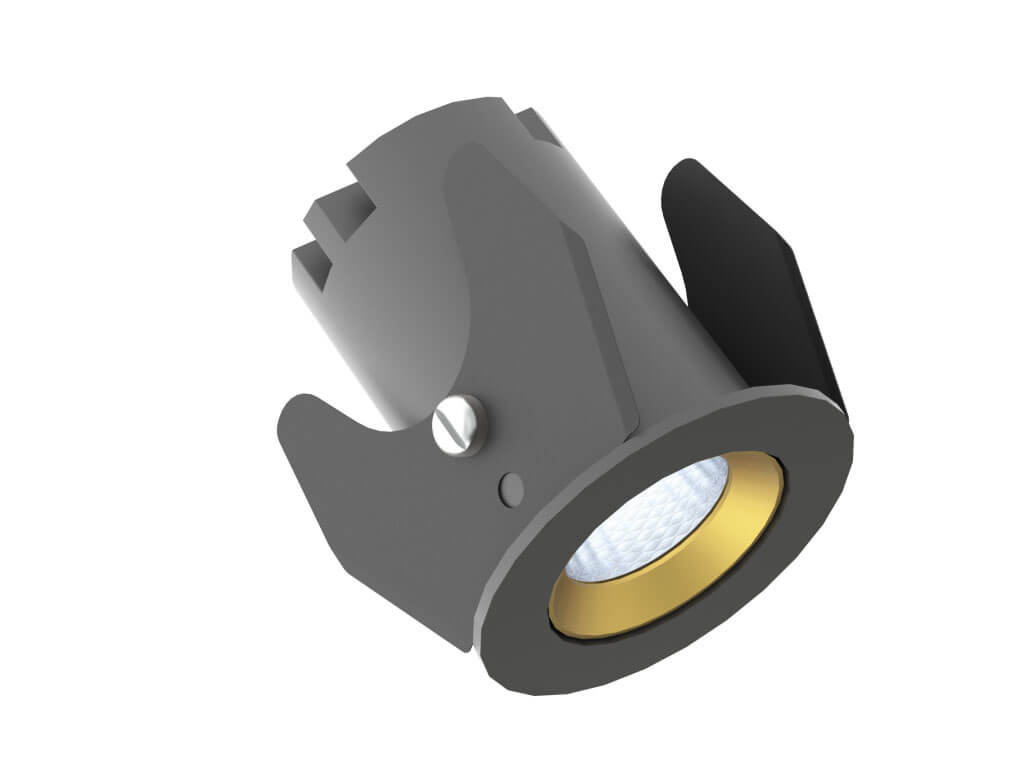

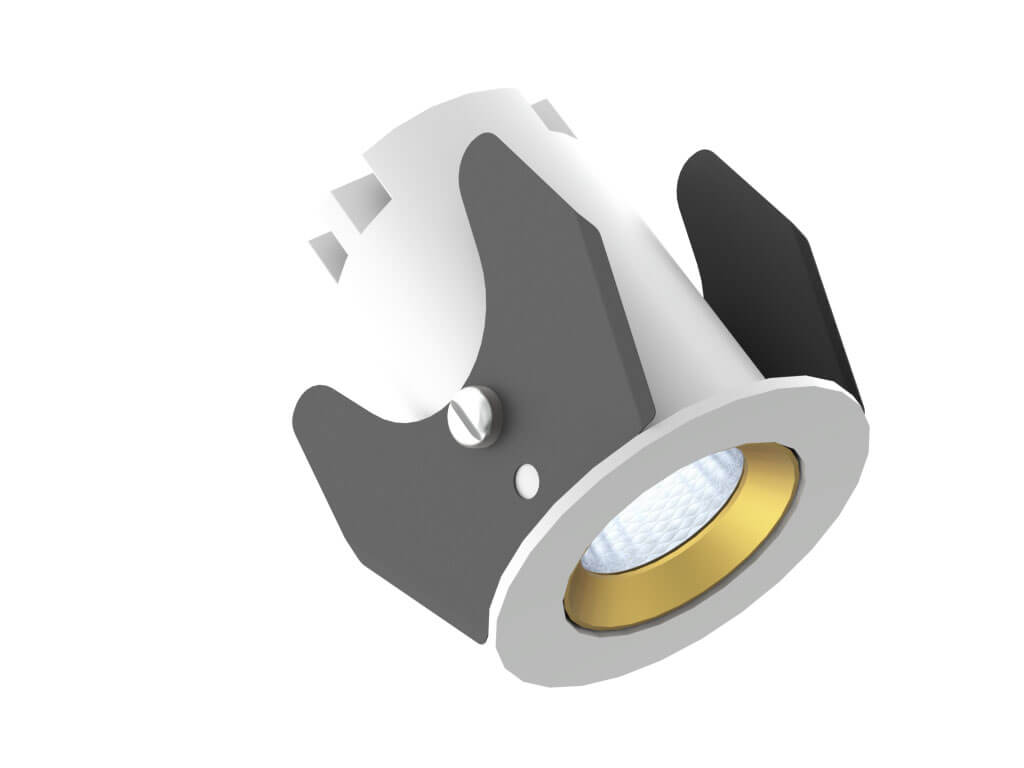

Housing colourmatt white RAL9016 / gold (XX=61)
matt white RAL9016 / silver (XX=63)
matt white RAL9016 / white (XX=64)
matt white RAL9016 / black (XX=62)
matt black RAL9005 / gold (XX=71)
matt black RAL9005 / silver (XX=74)
matt black RAL9005 / white (XX=75)
matt black RAL9005 / black (XX=72)
MaterialHousing: Die-cast aluminium
Reflector glass: Polycarbonate

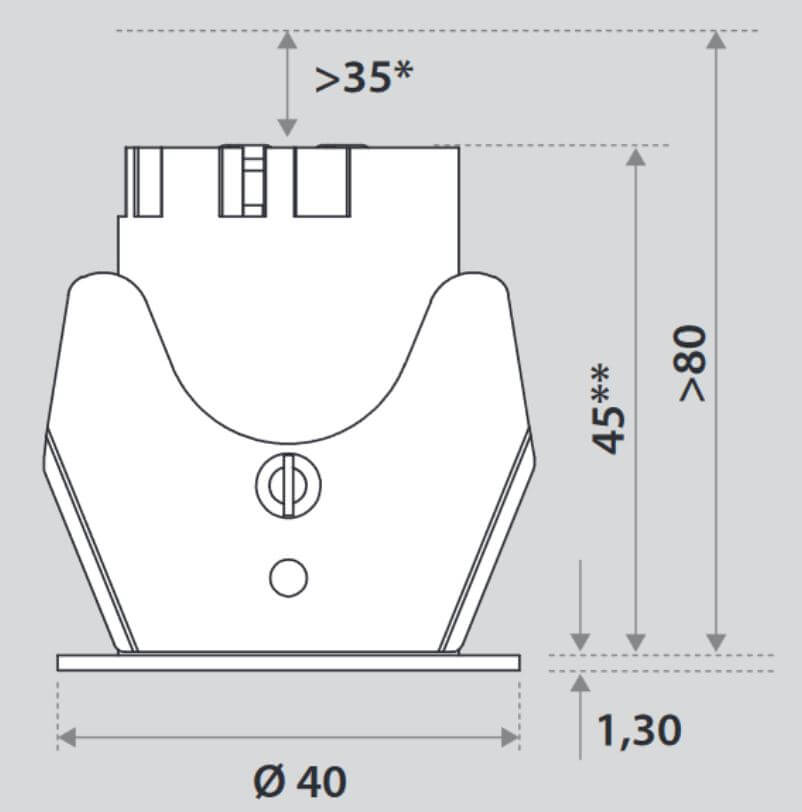

Dimensions40 mm x 46,3 mm
Hole diameter35 mm
Required installation depth> 80 mm
UsageInnenbereich
Beam angle (FWHM)40° (65° FWTM)
UGR15,0 / 15,2 / 15,4
CRI / Ra (typ.)82
Colour Consistency(MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK03
Operating temperature (Ta)-20°C / +45°C
Safety signsEN60598 / EN62031 / EN62471
EMV-DirectiveEN55015
Guarantee7 years
Energy classA

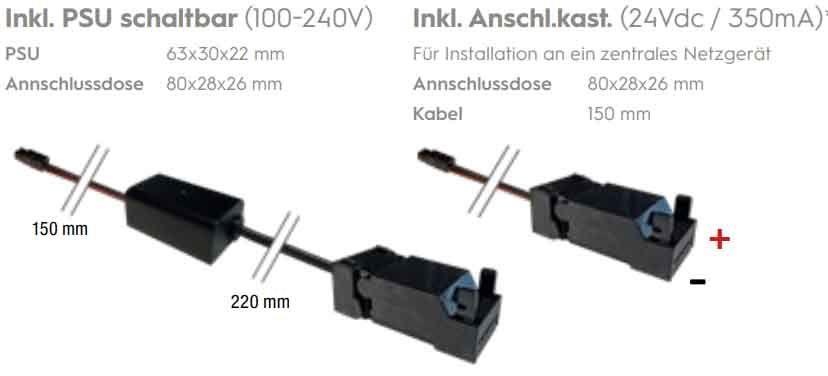

Strada 35 LV - 100-240 V

The power supply is already available in this version. This version is only switchable, dimming is not possible.
Further information about Strada 35 LV - 100-240 V Mini Downlights can be found in the data sheet.


Art.No.851903XX0102851903XX7202851903XX0202
Colour temperature2700K3000K4000K
Luminous flux375 lm400 lm425 lm
TypeIncl. PSU
Input100-240 V
Power6,6 W
Lm/W (with EVG)727680
Powerfactor0,6
Protection classII
Ripple< 3%
Input20A 170µS
Efficiency73
DimmabilityNo

Strada 35 LVC - 500 mA

This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.

You can order these additionally here: To the overview of suitable 500mA constant current sources (LED drivers).

Further information about Strada 35 LVC - 500 mA Mini Downlights can be found in the data sheet.

Art.No.851903XX01E2851903XX72E2851903XX02E2
Colour temperature2700K3000K4000K
Luminous flux375 lm400 lm425 lm
TypeIncl. connection box
Input500mA
Power5,7 W
Lm/W (without EVG)838892
Protection classIII
DimmabilityAlternative: DALI, 1-10V, Push, Triac(phase dimming)
depending on LED driver Selection

For data sheets of the Strada 35 series mini downlights, see download tab.

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.

Properties "Strada 35"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Dimmable/Control: 1..10V, DALI, Phase-Cut (Triac), Push-Button
·Hole diameter: 35mm
·Lamp shape: Recessed ceiling
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Datasheet Illuxtron

Strada 35

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
