Strada 68 LV

Product information "Strada 68 LV"

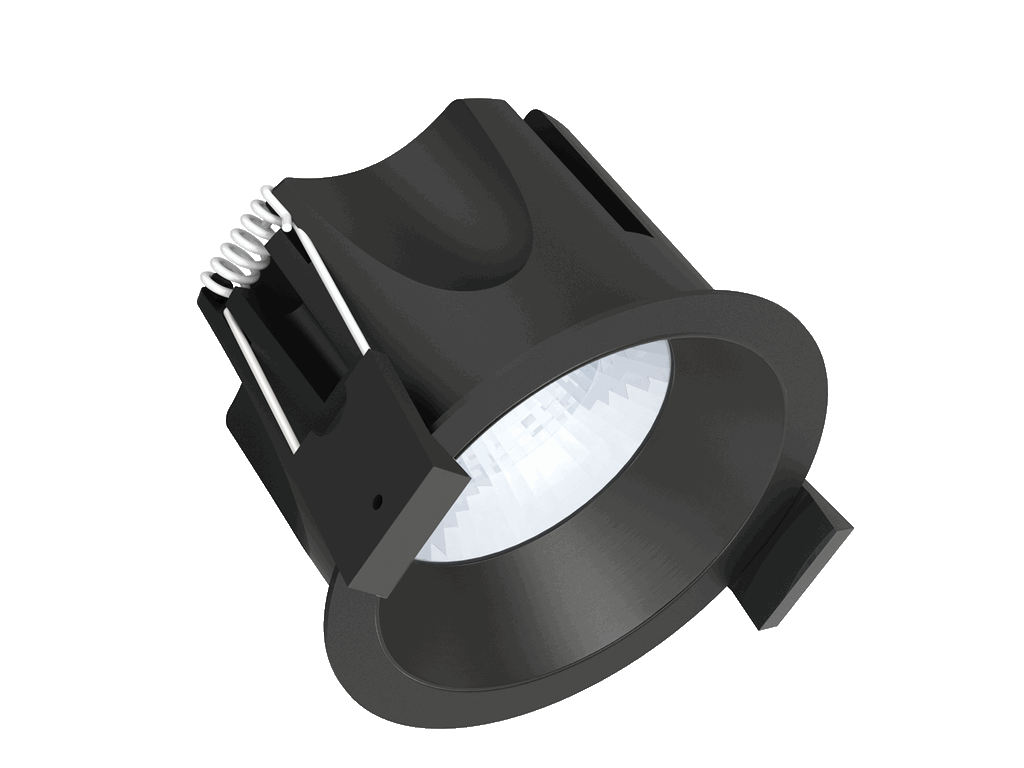

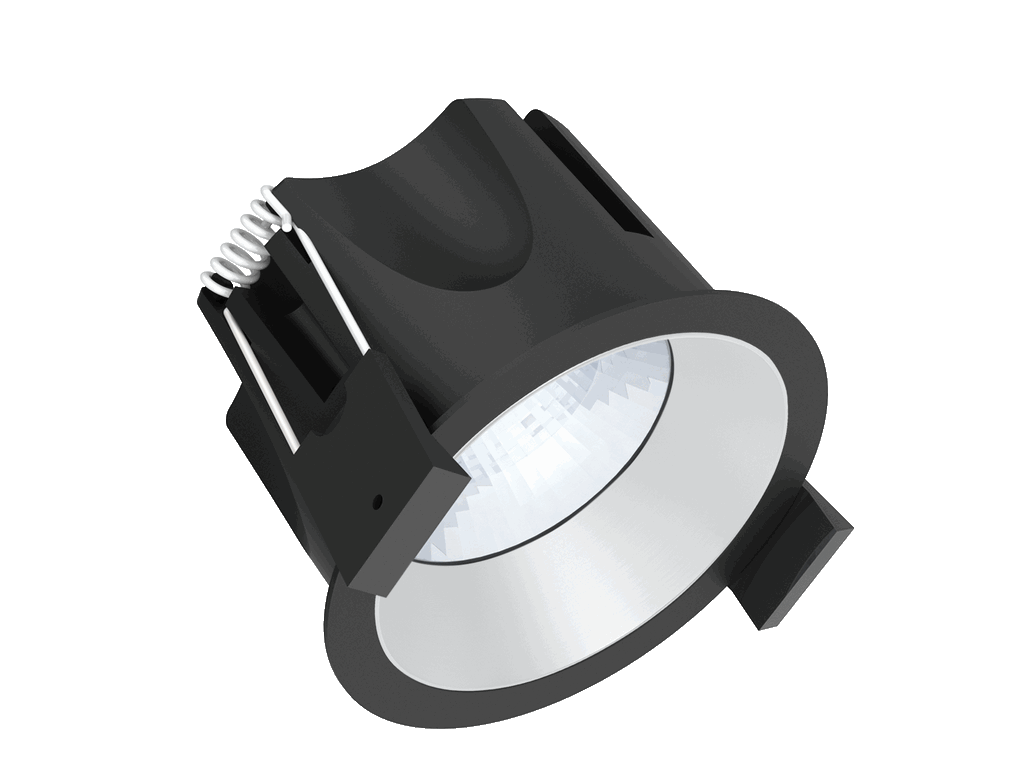

Illuxtron Strada 68 LV Downlight

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Strada 75 series ensure perfect lighting of objects and rooms. The microfacets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light  reflectors

  • High light output due to very good efficiency thanks to the very good reflectivity of the microfacet technology
  • Low glare values (UGR index) by avoiding unnecessary scattered light
  • Ideal light mixture of the LED light spectra for very good color rendering

More detailed details of these technical features can be found in the overview of the Illuxtron Mini recessed spotlights.

The most important technical details of the Strada 68 series:

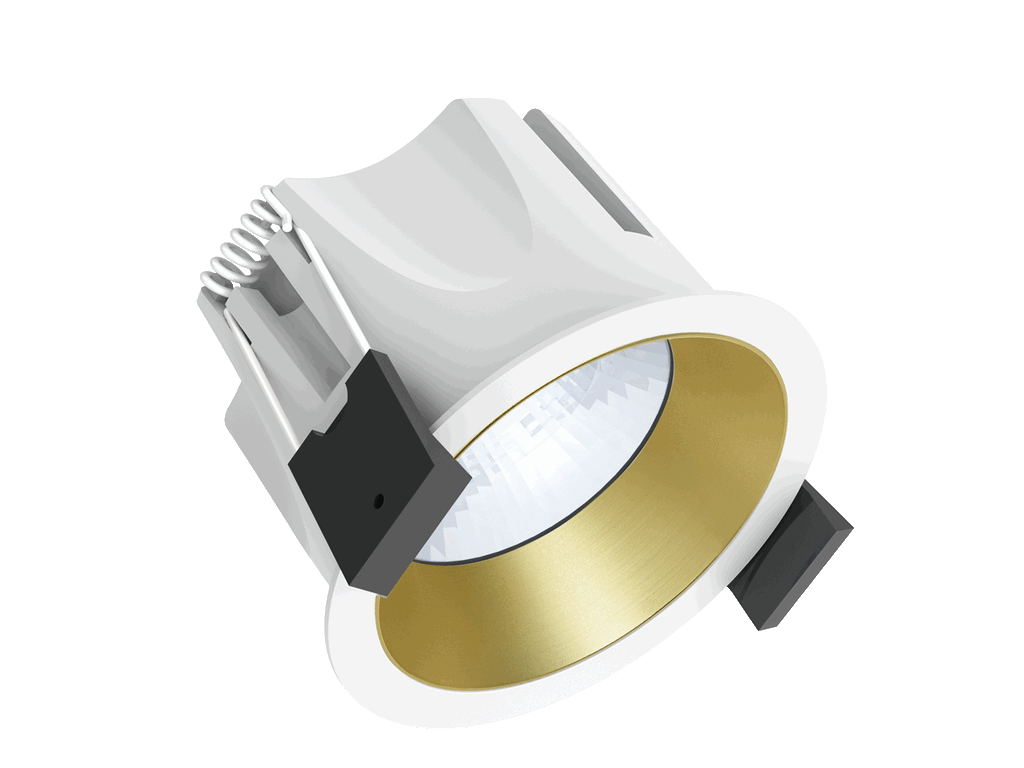

Housing color / reflector ring matt whiteß RAL9016 / gold (XX=61)

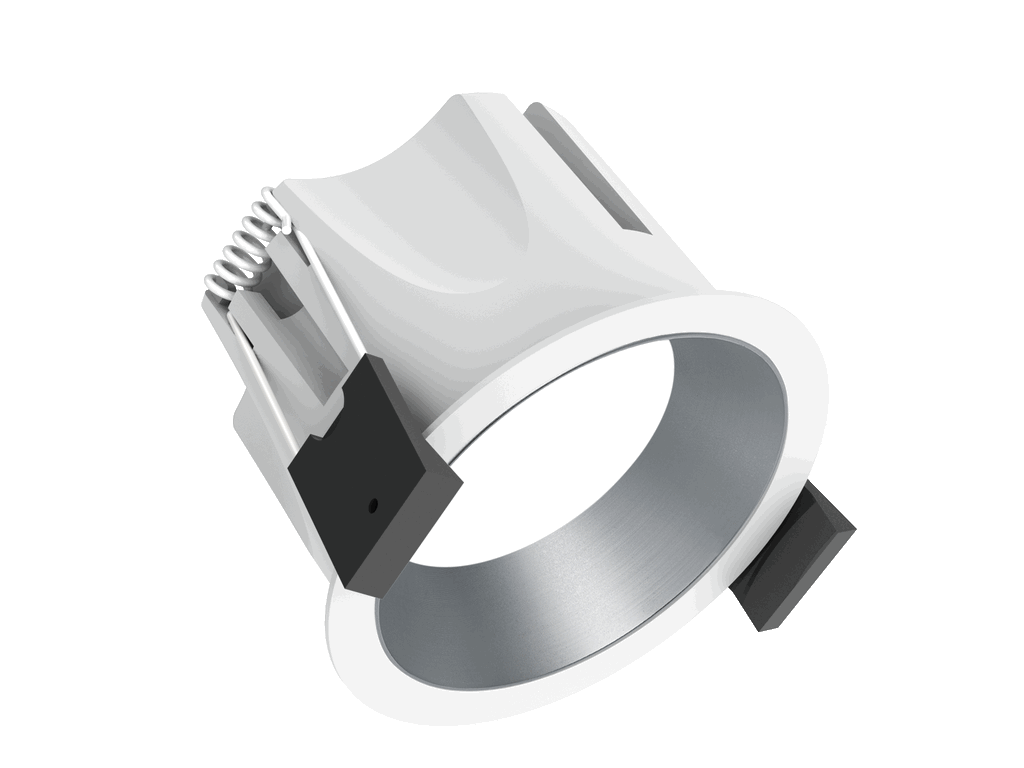

matt whiteß RAL9016 / silver (XX=63)

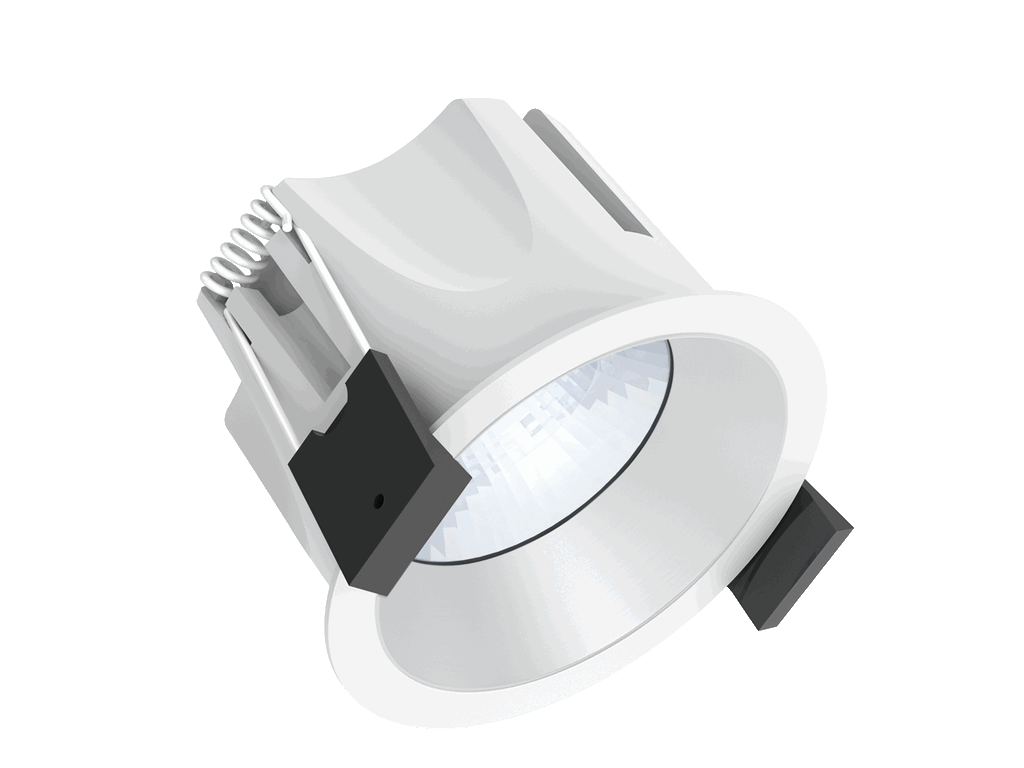

matt whiteß RAL9016 / Whiteß (XX=65)
matt whiteß RAL9016 / black (XX=62)

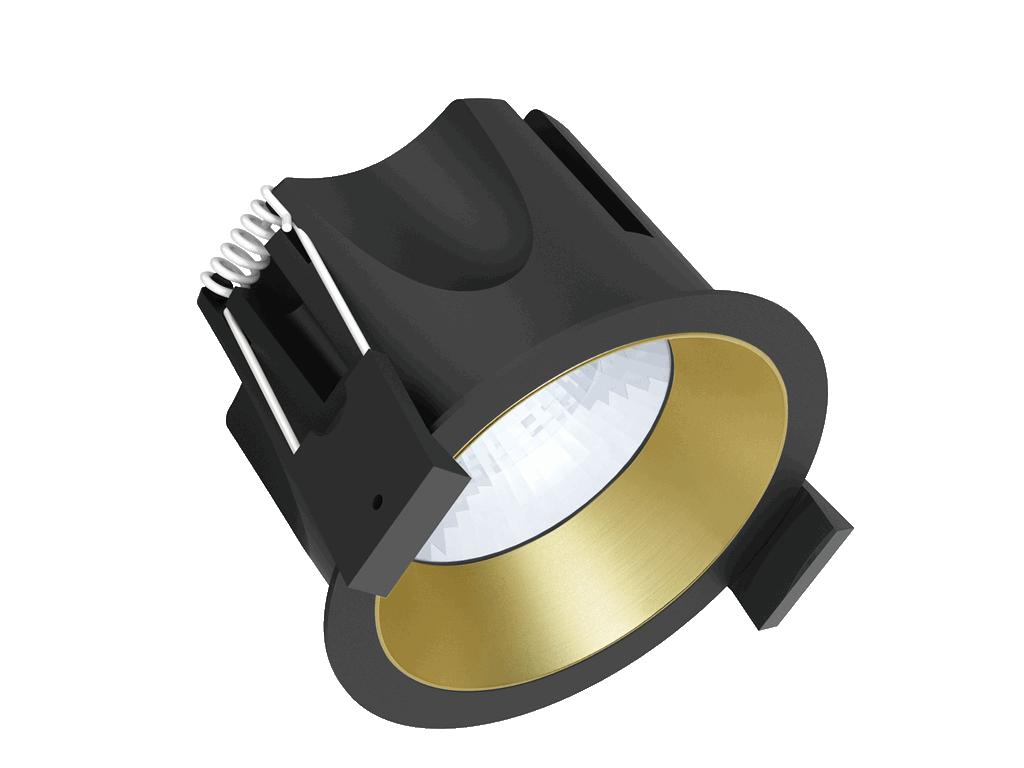

matt black RAL9005 / Gold (XX=71)

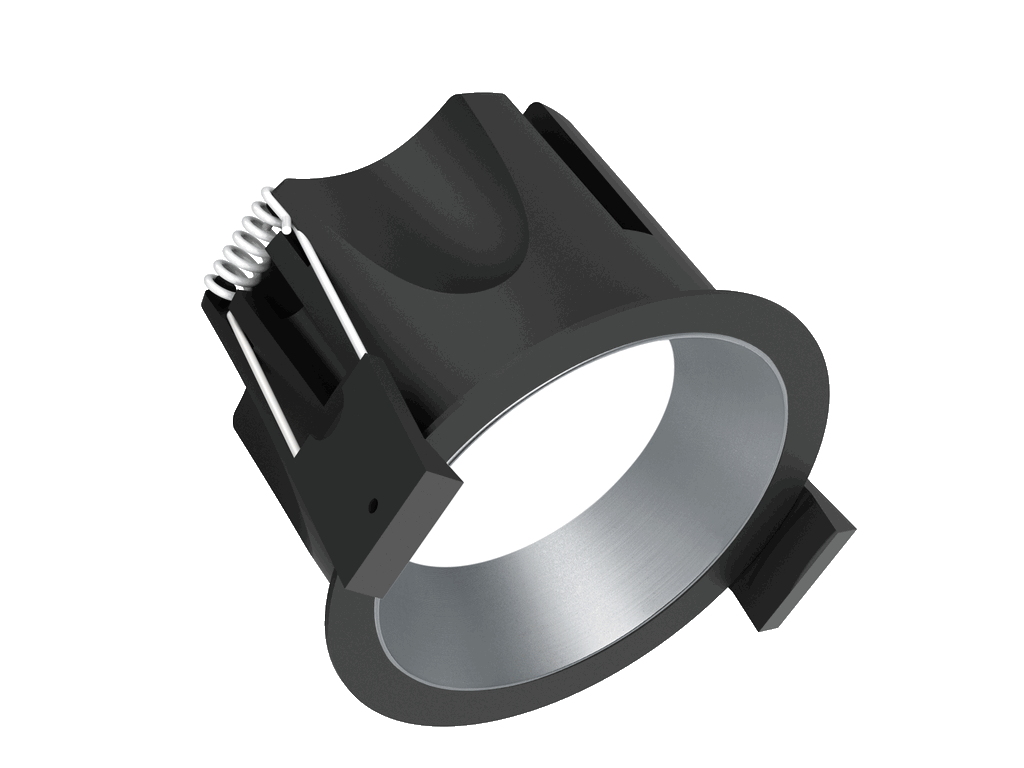

matt black RAL9005 / silver (XX=74)
matt blackRAL9005 / white (XX=76)
matt black RAL9005 / black (XX=72)
Material Housing: Die-cast aluminium
Reflector glass: Polycarbonate

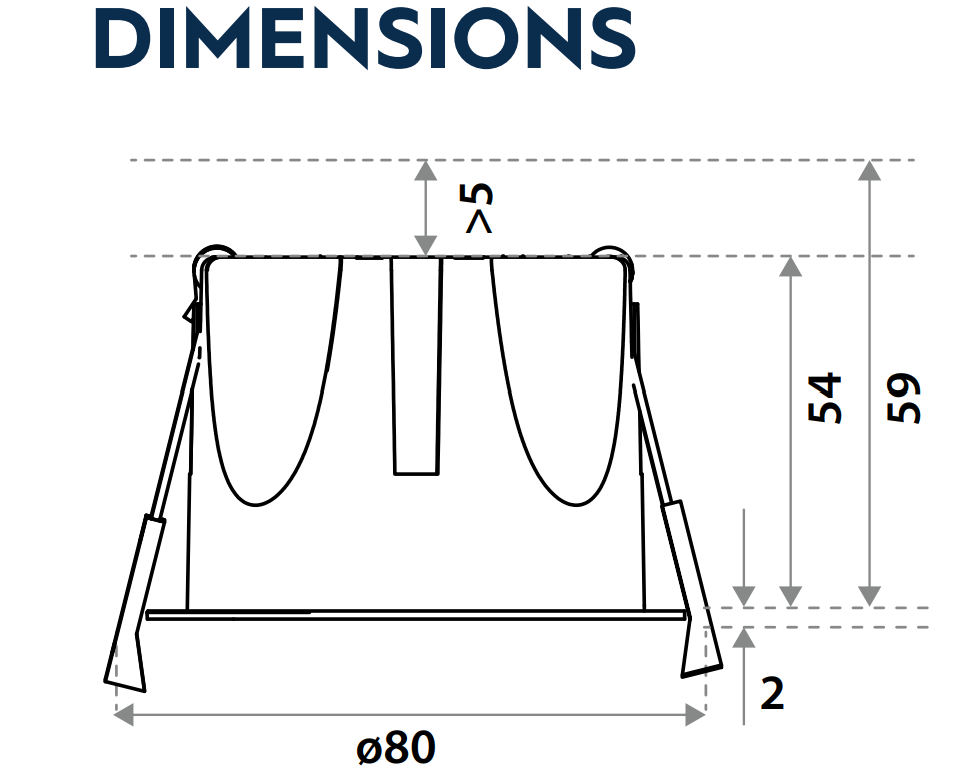

Dimensions ø 80mm
Required mounting depth > 60mm

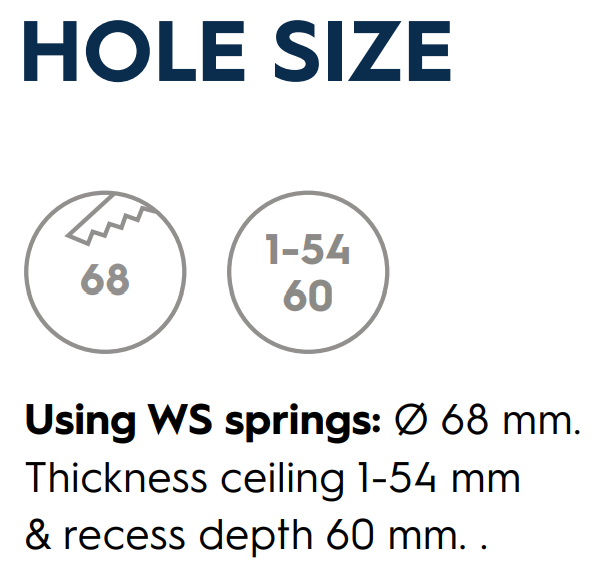

Ceiling cutout

68 mm (use of wire springs)

Usage Interior
Color Consistency (MacAdam) SDCM3
IP code IP44/IP20
IK code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime L90B10 reported  > 60,500 hours
safety character EN60598 / EN62031 / EN62471
EMC Directive EN55015
Warranty 7 years
Energy Class
4000K 1350Lm E
3000K 1250Lm F
1800-3000K 1250Lm G


Strada 68 High Voltage Flicker Free Dimming Technology (HV-FD)

Flicker-free - No stroboscopic effect

Studies link flickering light to health problems. Although flicker is not visible unaided at this frequency, there is evidence that the human brain can perceive flicker up to 200Hz. Potential problems include headaches, eye strain, visual impairment or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker rate of 1-3%, the high-voltage technology (high-voltage technology) only a flicker rate of 0.4%.

Flicker-free - Patented dimming down to 0.1%

The level of dimming depends on the quality of the dimmer. A dimming range of 0.1-100% can be covered with a high-quality dimmer. Even at the lowest dimming level, this technology always stays below 2.4% flicker.

Perfect for video recording

Flicker effects should be considered when recording videos, otherwise the images will be traversed by several black lines, making sensible filming impossible.

More information about Strada 68 LV For downlights, please refer to the respective data sheet.

Strada 68 LV

Article number 85RH03XX9F02 85RL03XX9F02 XX9F02 85RK03XX9F02
Luminous flux 1150Lm 1250Lm 1250 lm 1350Lm
Color temperature 2700K 1800 - 3000K 3000K 4000K
Lm/W (with ECG) 83 88-91 91 98
Type Incl. PSU
Input 220-240V
Protection class I
pf 0.95

*Note: The table only shows the versions with 60° Beam angle and dimmable with Casambi. The downlights are available with 24°, 60°; and 80° Beam angle and with DALI, Casambi, Triac, 1-10V dimmable or switchable.


Data sheets of the Strada 68 series downlights see download tab

Note:
The products of the manufacturer Illuxtron are made individually according to;&rszlig; Manufactured to your specification just for you. This also explains the longer delivery time of 1-3 weeks depending on workload.

Properties "Strada 68 LV"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Dimmable/Control: 1..10V, Casambi radio, DALI
·Hole diameter: 68mm
·Lamp shape: Recessed ceiling
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

datasheet

Strada 68 LV

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Products

Linea 68
Elegant LED Downlights from Illuxtron, various colours and colours Light colors, housing colors and selectable for 350mA or 230VAC. Suitable for 35mm x 35mm hole diameter.
Product number: 3181
Ballast
+3

Variants from €69.02*
€60.69*

delivery time 1-3 Weeks*

Pointer 68 adjust
Elegant Adjustable LED Pointer from Illuxtron, different LED Pointer Light colors, housing colors and selectable for 500mA or 230V AC
Product number: 3544
Ballast
+3

Variants from €80.92*
€66.64*
Pointer 68 fix
Elegant LED Pointer from Illuxtron, different Light colors, housing colors and selectable for 700mA or 230V AC
Product number: 3599
Ballast
+3

Variants from €82.11*
€72.59*

delivery time 1-3 Weeks*

Related Products

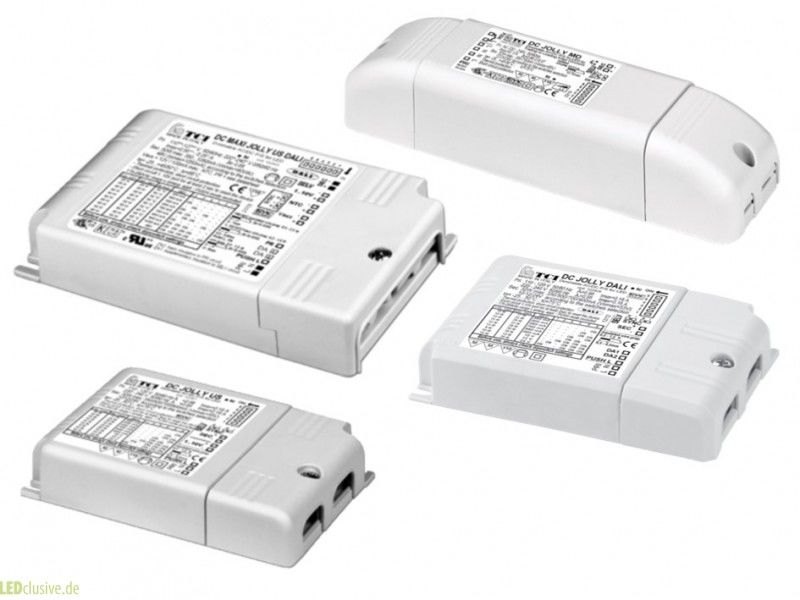

500mA LED Driver for Illuxtron Pointer Series 7W
