Universal LED driver with integrated Casambi module for use on conductor rails Features of... more

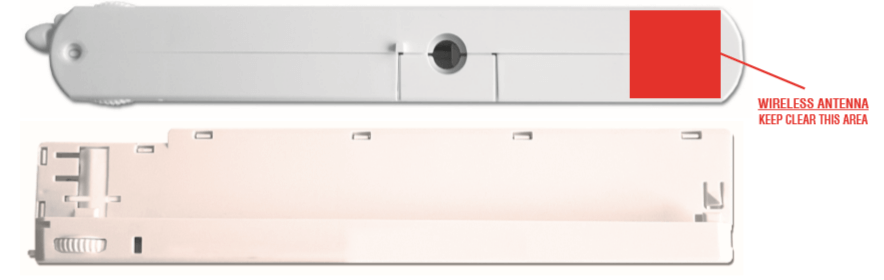

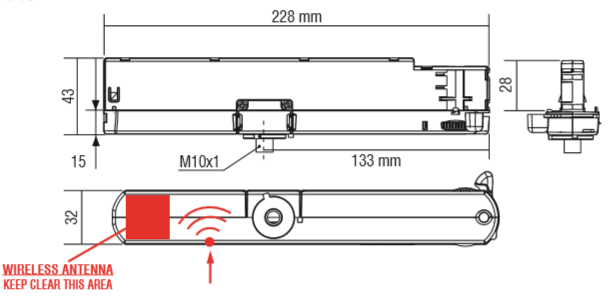

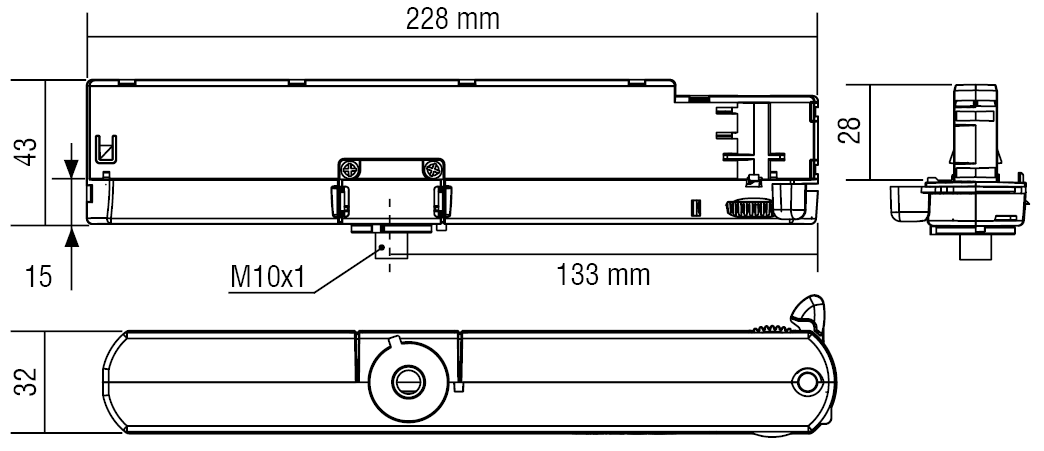

Universal LED driver with integrated Casambi module for use on conductor rails
Features of the TCI driver
- Multipower device supplied with dip-switch for the selection of the output current with integrated wireless CASAMBI module
- A new breakthrough in luminaire design
- Puts the luminaire design first
- High power available in a very reduced space
- Easy to mount through inventive nipple design
- Active Power Factor Corrector
- Class II protection against electric shock for direct or indirect contact
- Current regulation ±5/6 % including temperature variations
- Output push-in terminal blocks: 0,2...0,5 mm2
- against overheating and short circuit
- against mains voltage spikes
- against overload
- Thermal protection = C.5.a.
|Dip-SW||Power||Voltage out||Current out|
|Position 1||14 W||20...44V||325 mA const.|
|Position 2||15,5 W||20...44V||350 mA const.|
|Position 3||16,5 W||20...44V||375 mA const.|
|Position 4||17,5 W||20...44V||400 mA const.|
|Position 5||18,5 W||20...44V||425 mA const.|
|Position 6||19,5 W||20...44V||450 mA const.|
|Position 7||21 W||20...44V||475 mA const.|
|Position 8||22 W||20...44V||500 mA const.|
|Position 9||23 W||20...44V||525 mA const.|
|Position 10||24 W||20...44V||550 mA const.|
|Position 11||25 W||20...44V||575 mA const.|
|Position 12||26,5 W||20...44V||600 mA const.|
|Position 13||27,5 W||20...44V||625 mA const.|
|Position 14||28,5 W||20...44V||650 mA const.|
|Position 15||29,5 W||20...44V||675 mA const.|
|Position 16||31 W||20...44V||700 mA const.|
The TCI Casambi busbar is available in:
- 127634 white
- 127635 grey
- 127636 black
Further details can be found in our downloads.
Related links to "TCI LED driver with Casambi module for conductor rail"
Features of the product family. Details on variants can be found in the description.
|Constant Current:||350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA|
