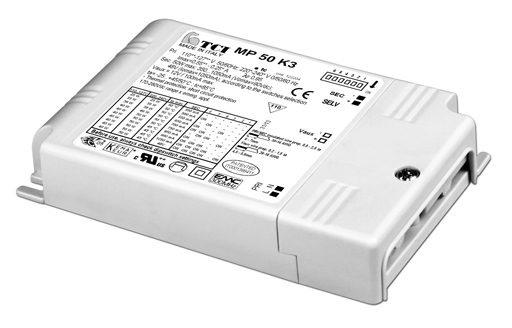

TCI MP 50 K3 - LED driver

42.90€ *
Net price: 36.05€
Quantity Unit price
To 9 42.90€ * ( 36.05€ Netto )
From 10 40.75€ * ( 34.24€ Netto )
From 20 38.61€ * ( 32.45€ Netto )
From 50 36.46€ * ( 30.64€ Netto )
From 100 34.32€ * ( 28.84€ Netto )

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays


Stck

  • 122204
  • 122204
  • 0.15 kg
  • 8010703307216
  • TCI
TCI MP50 K3 - LED driver; TCI 122204; 50W; Constant voltage, constant current are... more

TCI MP50 K3 - LED driver; TCI 122204; 50W; Constant voltage, constant current are adjustable via dip-switch.

Multicurrent-multivoltage converter- universally applicable.
Flicker ( Output Ripple ) <= 3%
By varying the dip switch settings, it is possible to choose between nine constant currents and one constant voltage.
The MP50 K3 is universally applicable and is the cheaper model of the popular Maxi Jolly,but with less features.

CC and CV of MP50MP50 K3 and its labels

Dip-SW Power out Voltage out Current out # LED
Position 1 25 W 2...74 V 350mA const. max 20
Position 2 35 W 2...72 V 500mA const max 20
Position 3 39 W 2...72 V 550mA const max 20
Position 4 46 W 2...72 V 650mA const max 18/20
Position 5 50 W 2...71 V 700mA const max 18
Position 6 50 W 2...66 V 750mA const max 16/18
Position 7 50 W 2...58 V 850mA const max 16/18
Position 8 50 W 2...55 V 900mA const max 16
Position 9 50 W 2...48 V 1050mA const max 14
Position 10 50 W 48V constant voltage


Efficiency depending of the power: 20W - 50W : 84%  - 91%

 MP50 K3 and function labels

For detailed description please refer to the data sheet.

Related links to "TCI MP 50 K3 - LED driver"
TCI LED driver 50W; constant currents: 350, 500, 550, 650, 700, 750, 850, 900, 1050mA; constant... more
Features of the product family. Details on variants can be found in the description.
Constant Voltage: 48V
Constant Current: 1,05A, 1A - 2,4A, 350mA, 350mA -1A, 500mA, 550mA, 650mA, 700mA, 750mA, 850mA, 900mA
Power: 50W
Dimmable/Control: Not dimmable
T-122204 data sheet
