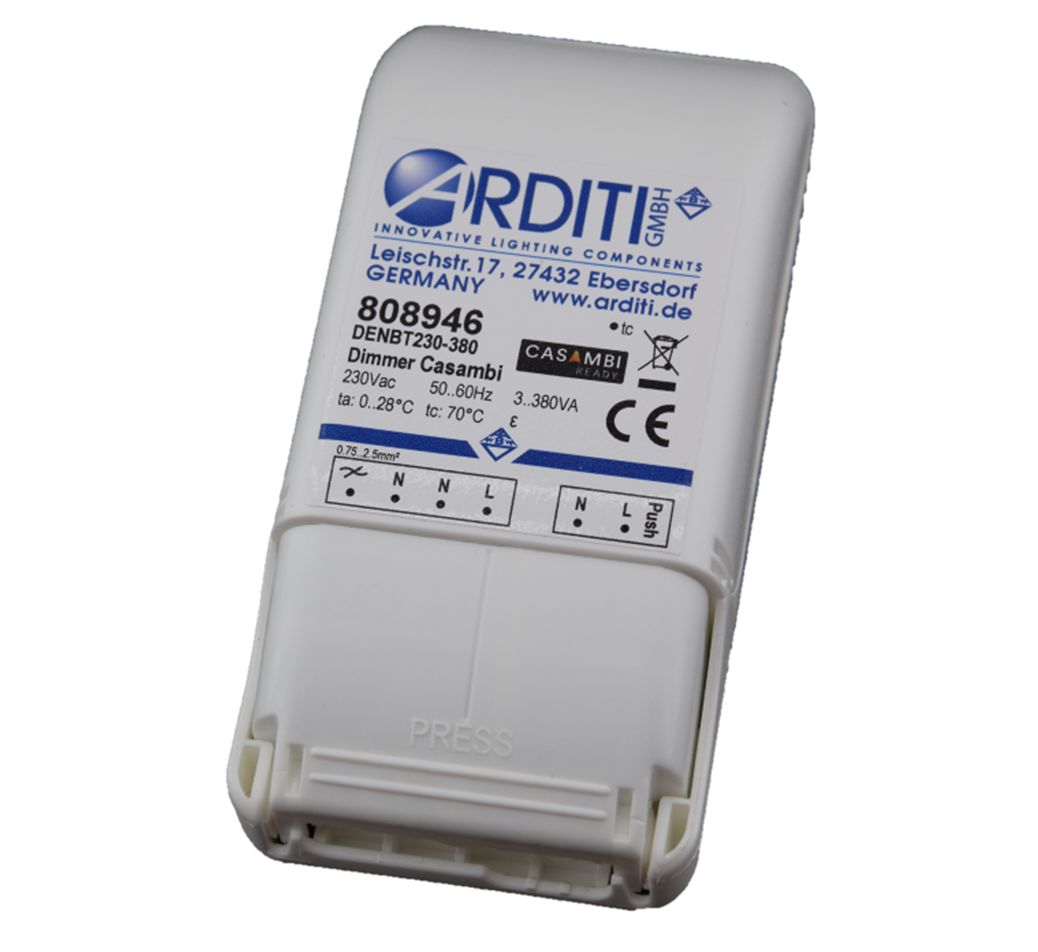

UniversalDimmer Casambi 380W incl. Button Interface 2in1
- Order number: 808946
- Hersteller-Nr.: 808946
- Weight: 0.1 kg
- Manufacturer: Arditi GmbH Lighting Components
Universaldimmer for Casambi with push button Interface (2-in-1) Phase cut dimmer for... more
Universaldimmer for Casambi with push button Interface (2-in-1)
Phase cut dimmer for 380W in a housing with strain relief can also be used as a button interface to control other Casambi devices. Programming via Casambi app.
- Independent universal LED dimmer for convenient operation with a tablet or smartphone (Apple, Android) with the CASAMBI app
- For operating incandescent lamps, dimmable LED lamps or control gear for LEDs and halogen lamps (not for magnetic transformers)
- Gateway is not required, but setup is possible
- Integrated antenna (drawing: gray area, do not cover with metal housing)
- Adaptive dimming with load number display (the connected load can be measured for optimal dimming)
- Freely programmable button input, usable in the Casambi Network. This means that any Casambi end devices can be controlled / dimmed.
- Improved against network disturbances
item number | 808946 |
Typ | DENBT230-380 |
Supply input | 220..240 Vac; 50..60 Hz |
Radio signal | 2,4..2,483 GHz; 4 dBm |
Power @ 230V | 3..380 W |
Ambient temperature (ta) | 0..+28 °C |
Max. Rated temperature (tc) | 70 °C |
Degree of protection IP | 20 |

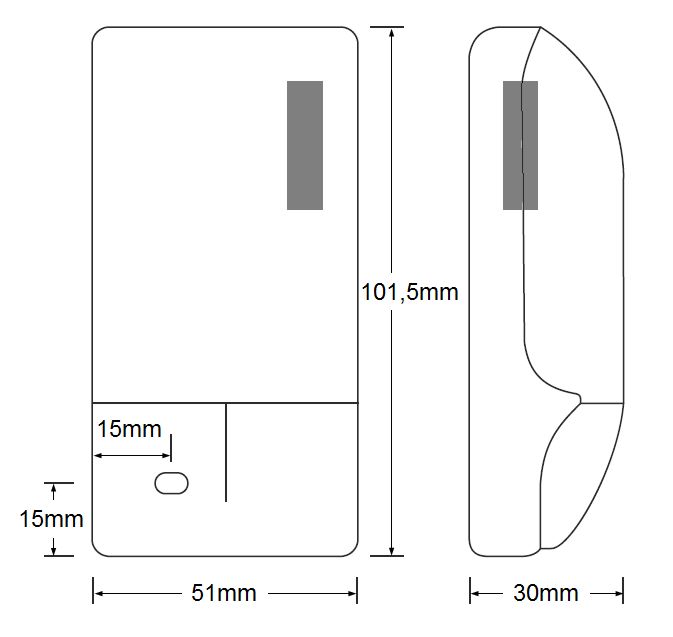

Dimensions | 101,5 x 51 x 30 mm |
CASAMBI QR-Code and links:
Selection of introductory videos for CASAMBI:
Was CASAMBI alles kann ! |
Erste Schritte |
You can find many more supporting videos about Casambi on YouTube.
For more information, please refer to the data sheet in the download tab.
Related links to "UniversalDimmer Casambi 380W incl. Button Interface 2in1"
380 W Universal-Phasendimmer für CASAMBI Lichtsteuerung incl. Tast-Sender Zwei in Eins. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: | IP20 - IP44 (Indoor) |
Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, Phase-Cut (Triac), Push-Button |
