wDALI -2 extra long Range Remote + Receiver

Product information "wDALI -2 extra long Range Remote + Receiver"

wDALI-2 Extra Long Range Remote & Receiver

Wireless DALI control with extended range and flexibility!

The wDALI-2 Extra Long Range Remote & Receiver system by Lunatone offers powerful wireless control of DALI systems via a 4-button remote with a radio range of up to 800 m in open field. Each button is individually programmable and supports not only switching, dimming and scene recall, but also DT8 commands for color and color temperature control. All settings can be conveniently adjusted using the DALI Cockpit tool. The receivers can control DALI devices and optionally provide integrated bus power.

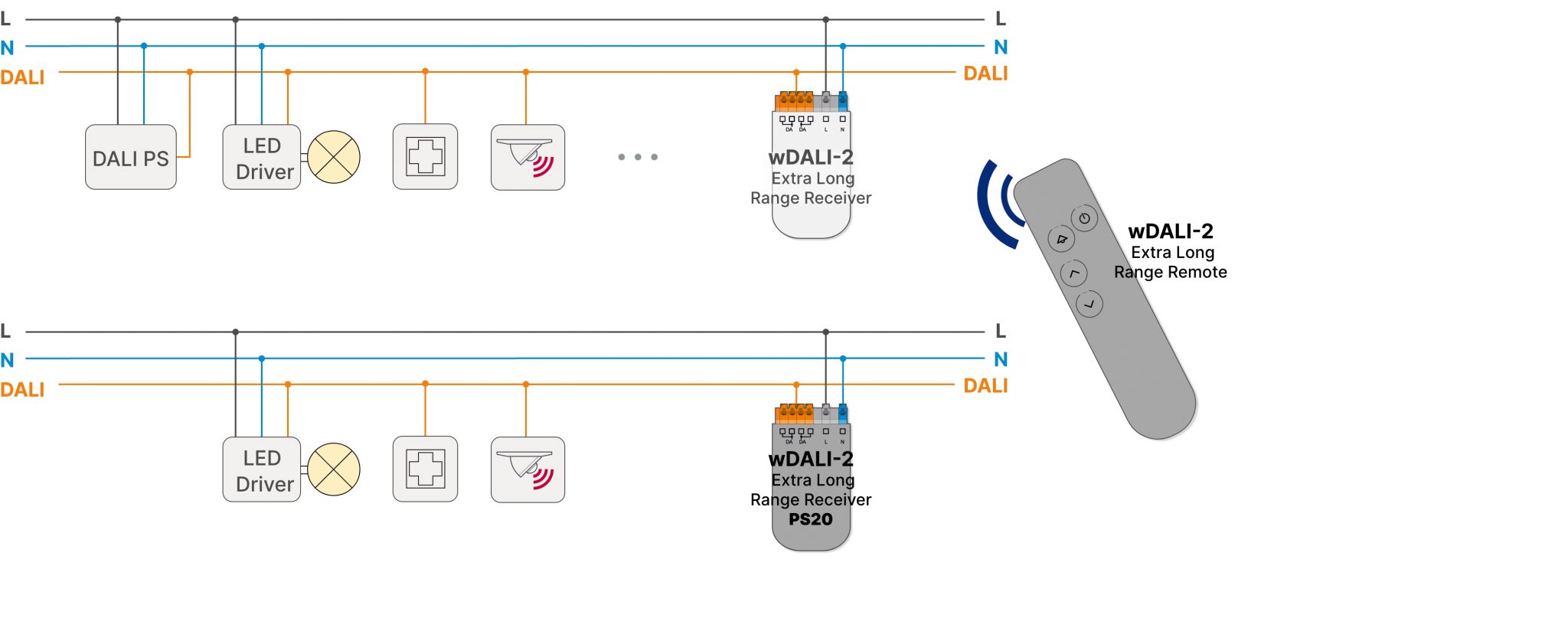

Application Example

In a large office building, users can use the wDALI-2 Remote to control lighting groups flexibly across multiple floors. Multiple remotes can be paired with the same or different receivers.

Variants of the wDALI-2 Extra Long Range Remote & Receiver

Item NumberDescription
87313951wDALI-2 Extra Long Range Remote
87313951-L01wDALI-2 Extra Long Range Remote with printed buttons
87313917wDALI-2 Extra Long Range Receiver
87313917-PSwDALI-2 Extra Long Range Receiver with 20mA bus supply
87313951+RRemote with paired receiver
87313951+R-PSRemote with paired receiver PS (20mA)
87313951-L01+RRemote with printed buttons & paired receiver
87313951-L01+R-PSRemote with printed buttons & paired receiver PS (20mA)

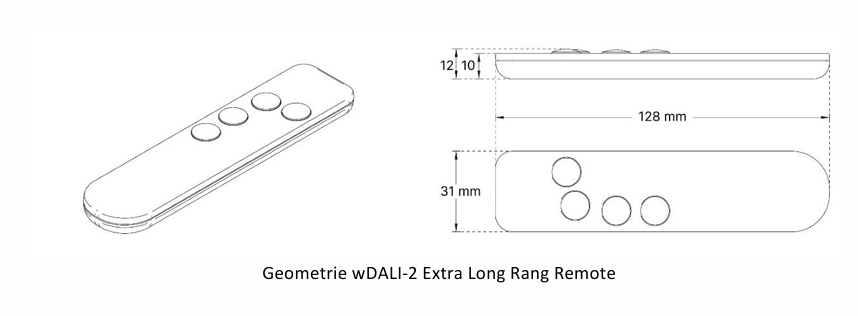

Technical Details – Remote

PropertyRemote
Item Number87313951 / -L01
Dimensions128x31x12 mm
Radio TechnologyE-LORA 868 MHz
Power SupplyBattery
DALI Bus Supply-
Protection RatingIP40
Operating Temperature0°C to +50°C
Mountingmobile
Protection Class-

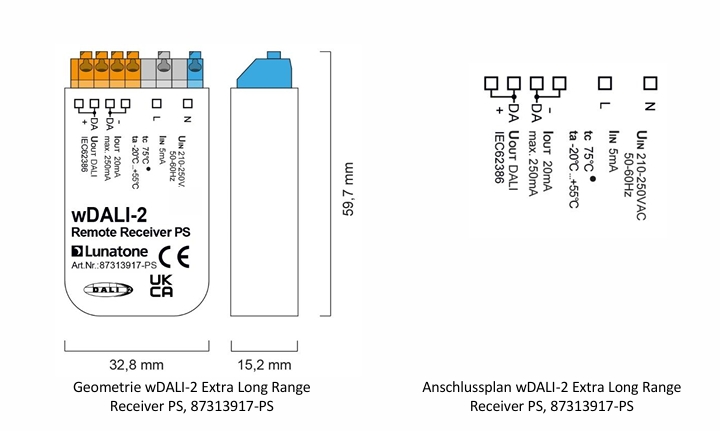

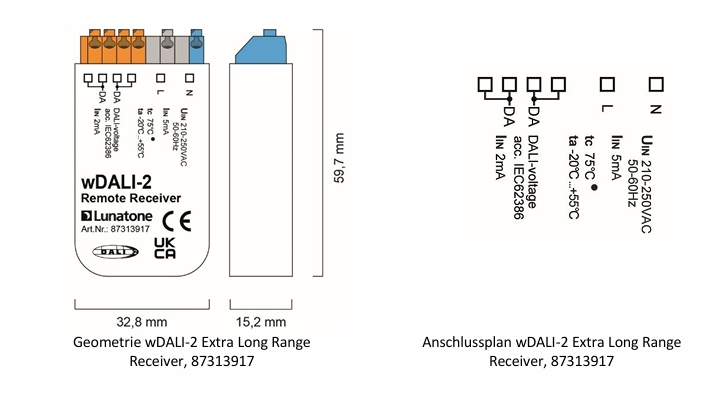

Technical Details – Receiver

PropertyReceiverReceiver PS
Item Number8731391787313917-PS
Dimensions59x33x15 mm
Radio TechnologyE-LORA 868 MHz
Power SupplyMains voltageMains voltage + bus supply
DALI Bus SupplyNo20 mA (max. 10 DALI devices)
Protection RatingHousing IP40 / Terminals IP20
Operating Temperature-20°C to +55°C
MountingFlush-mounted box
Protection ClassII (with correct installation)

Benefits of the wDALI-2 System

  • Wireless range up to 800 m in open field
  • Flexible addressing (broadcast, group, single address)
  • Support for DALI DT8, scenes, dimming, switching
  • Max. 60 remotes per receiver
  • Multimaster capability & power-up configuration
  • Easy setup via DALI Cockpit software

Safety and Installation Instructions

  • Installation must be carried out by qualified personnel while voltage-free
  • Do not install receivers in metal housings or damp environments
  • Wiring must be in dry conditions and in accordance with low-voltage guidelines
  • DALI lines must not be connected to mains voltage or SELV
  • Standard installation materials are sufficient


For further details, please refer to the datasheet in the download tab.

Properties "wDALI -2 extra long Range Remote + Receiver"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: DALI, DALI2, WDALI (Lunatone)
Datasheet & further Infos about this product

Datasheet wDALI-2 Extra Long Range Remote & Receiver

Wireless DALI

Manufacturer "Lunatone Industrielle Elektronik GmbH"

Lunatone Industrielle Elektronik GmbH

Lunatone started off in 1993 as a development office and spin-off from the Vienna University of Technology. A few years later, in 2000, Lunatone Industrielle Elektronik GmbH was founded due to the growing demand. From the beginning, customized solutions were offered in the areas of DALI lighting systems, electronic information technology and industrial electronics. Customer satisfaction has always been our highest Goal. The range extends from operating modules, control units & sensors, phase dimmers, actuators & signal converters, 230VAC, 48V, 24V operating devices, DALI bus supplies & extensions through to interfaces, tools & Gateways. For more than 10 years we have been offering more than 100 products from the manufacturer Lunatone worldwide.Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

Lunatone GmbH
Paukerwerkstraße 5 - 1210 Vienna - Austria


E-Mail: supportteam@lunatone.at
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).

Similar Products

 DALI USB Mini (24138923-DO) - Special Limited amount

Average rating of 5 out of 5 stars

DALI USB module DALI or DALI-2
DALI USB module oder DALI-2 with different types 24138923 - 89454248 - 24138215 for controlling and programming DALI-systems via PC
Product number: 560
Version

Variants from €241.43*
€231.26*

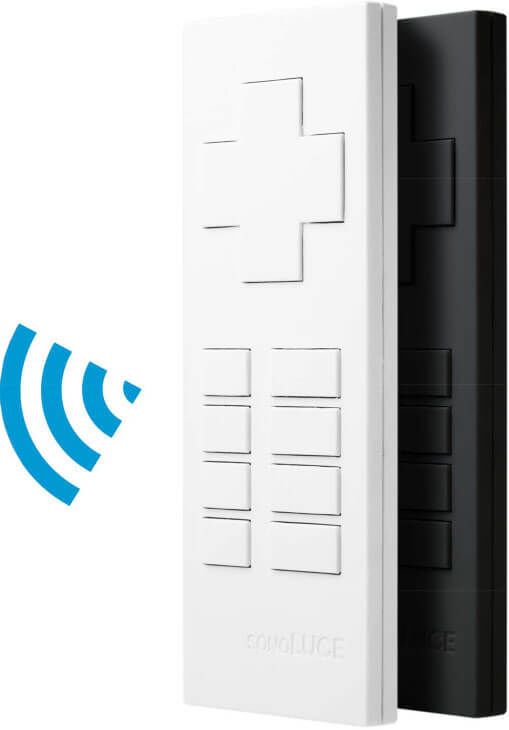

Farbwahl Lunatone Funkfernbedienung

Average rating of 5 out of 5 stars

DALI radio remote + receiver
DALI radio remote control with 12 buttons and receiver, white or black
Product number: 622
Select version

Variants from €175.89*
€153.69*

delivery time 1-3 Weeks*

wDALI Relay 8A permanent, 80A Inrush, built in
wDALI Relay 8A permanent, 80A Inrush, built in
wDALI Relay 8A permanent, 80A Inrush, built in
Product number: 3787

Variants from €142.40*
€124.41*

delivery time 1-3 Weeks*

WDALI RM8
wDALI RM8 0-10V Interface Switch relay
wDALI Relay 8A permanent, 80A Inrush, built in
Product number: 3867
Select version

Variants from €162.49*
€141.98*

delivery time 1-3 Weeks*

86459587-GRRPS
wDALI GR Receiver PS20
DALI commands received by radio, 20mA DALI power supply
Product number: 86459587-GRRPS

€201.03*

delivery time 1-3 Weeks*

wDALI-2 Bluetooth 5 wireless Bridge
wDALI-2 Bluetooth 5 wireless Bridge
With the wDALI-2 wireless bridge, spatially separated DALI lines can be connected to each other wirelessly. The radio connection is bidirectional - control is possible from both DALI lines. Queries are also possible (DALI queries).
Product number: 8945334
Select version

€169.92*

delivery time 5-10 Working days*

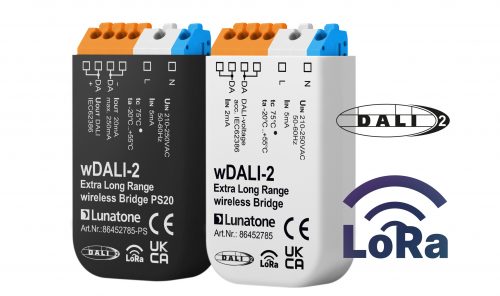

wDALI-2 Extra Long Range wireless Bridge
