wDALI RM8 0-10V Interface Switch relay

Product information "wDALI RM8 0-10V Interface Switch relay"

Wireless switching relay for DALI radio control with transmitter and receiver


The wDALI RM8 is a DALI control module, which is wirelessly connected to the DALI bus.
This enables the integration of spatially separated switchable loads such as floor lamps and outdoor luminaires into the DALI system.
The loads can be switched on and off with DALI commands.


Overview

  • Wireless DALI-line espansion for ballasts with PWM control input

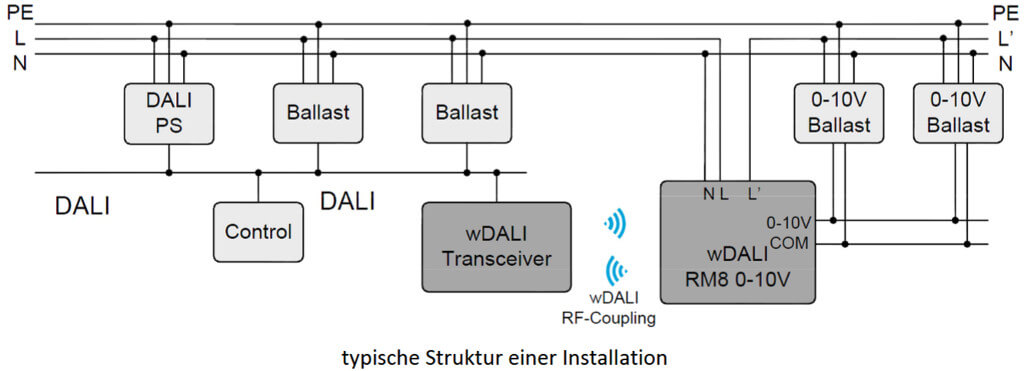

  • 2 components: a transmitter unit connected to the DALI-line and a receiver module with 0-10V PWM output and relay
  • Integrated relay for switching ballast supply
  • Advantage of fail-safe digital signal data communication compared to types with analog output voltage, suitable for electronic ballast with PWM control input (e.g. Meanwell HLG, HLN, NPF or LPF series)
  • Transformation of DALI light level into PWM output signal from 0% to 100%
  • DALI DT5: selection of linear or logarithmic dimming curve
  • DALI DT5: output range selection (0-100% / 10-100% PWM)
  • Maximum output current of 1mA (current sink)
  • The relay contact depends on the light level, at 0 the relay is opened, at any other value it is closed
  • The transmitter unit is powered directly by the DALI-line, the receiver is powered by mains
  • Configuration via DALI-Cockpit software too

Electrical data transmitter
Supplyvia DALI Bus
typ. current consumption3,8 mA
InputDALI
Power on behaviourprogrammable, here the Power On is the return of the DALI-line supply voltage
Frequency-range2,5 GHz
Technical data transmitter
Ambient temperature
-10°C to + 50°C
Protection classIP20
Connection wire cross sectionmax. 1,5mm²
Mountingblack box

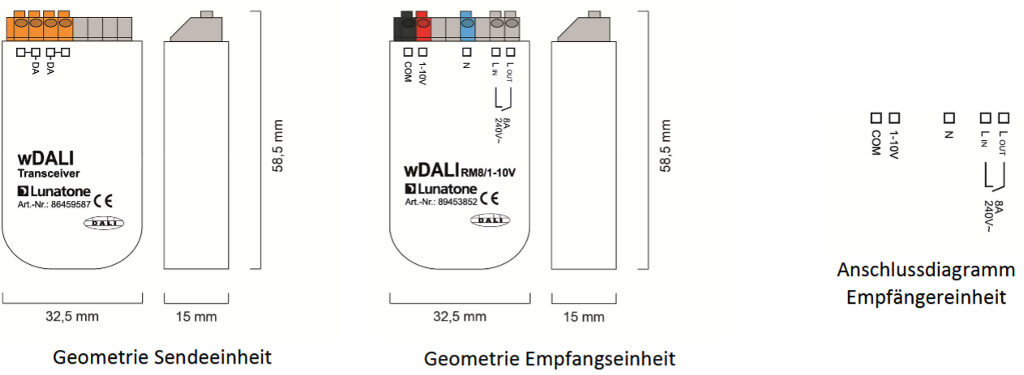

Dimensions L x B x H59 x 33 x 15 mm

Electrical data switch relay
Supply210-250V AC / 50-60Hz
Rated load1000VA
max. switching current 8A
max. power on current80A
Relay contact1 on / off, max. 30000 operations at nominal load resistive, max. Switching frequency 1Hz
Frequency-range2,4Ghz
Technical data switch relay
Ambient temperature0°C to + 45°C
Protection classIP20
Connection wire cross sectionmax. 1,5mm²
Mountingblack box
Dimensions L x B x H59 x 33 x 15 mm

For further information on the wDALI RM8 radio switching relay, please refer to the data sheet in the Download tab.
Properties "wDALI RM8 0-10V Interface Switch relay"
·Dimmable/Control: 1..10V, DALI, PWM, WDALI (Lunatone)
Manufacturer "Lunatone Industrielle Elektronik GmbH"

Intelligent light control, in particular thanks to the universal DALI Enocean controller for wireless transmission of DALI signals. Professional solution to implement DALI projects without additional lines on the input side.

Related links of the manufacturer

Data sheet wDALI RM8 0-10V
