Wireless DALI radio control multi-control with receiver and transmitter
The wDALI MC is a DALI control module, which is linked wireless to the DALI bus.

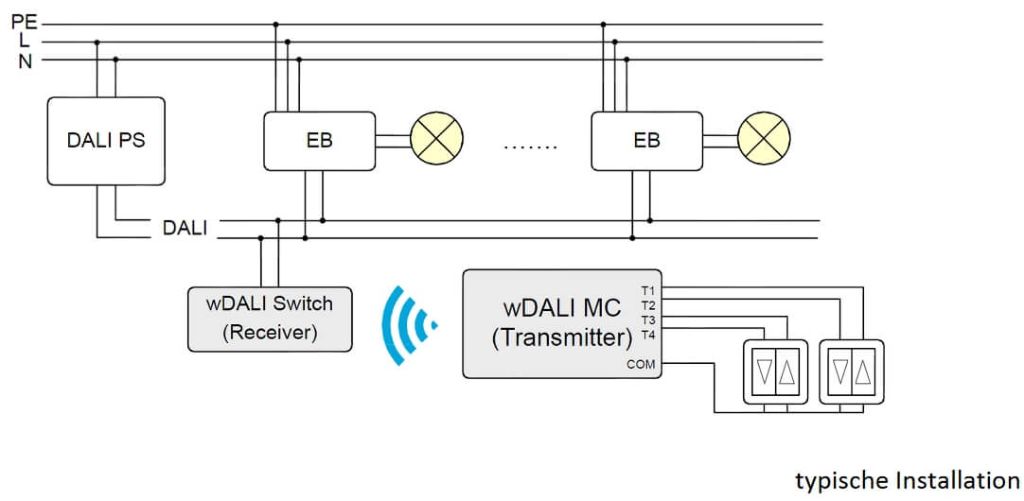

The battery-operated transmission module of the DALI radio control has 4 switch inputs and can be mounted to the DALI bus at every desired place within the reception radius of the receiving unit.
The set contains the transmitter 89453848 as well as the receiver 86459534.
Destination address, switching characteristics, and DALI commands can be assigned to every input of the wDALI MC.
The following DALI-commands are available for this purpose:
- dim up
- dim down
- recall min.
- recall max.
- goto scene 1-16
- direct arcpower ...%
- and predefined macros.
Attention, when re-ordering a single receiver or transmitter module, please state the SN of the device to be connected.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Dimmable/Control:||DALI, WDALI (Lunatone)|
