DALI radio remote + receiver

Product information "DALI radio remote + receiver"

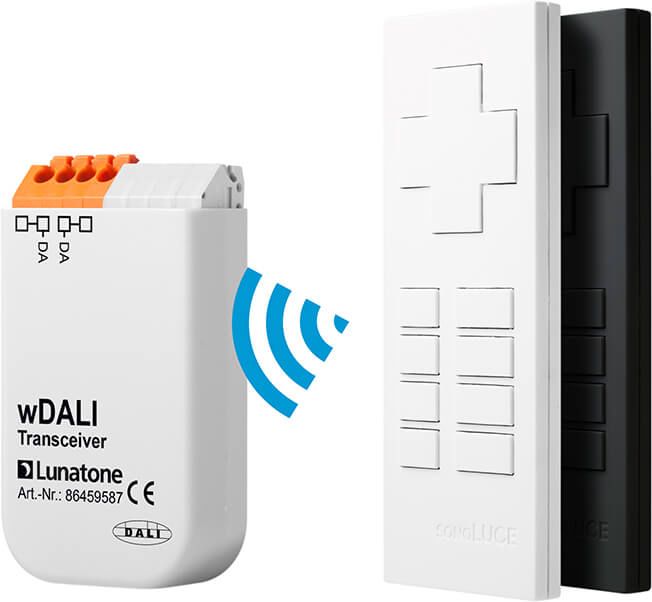

Lunatone DALI radio control with receiver unit

Choose your favorite color for the DALI remote control and control your DALI center wirelessly and comfortably with the DALI remote control from Lunatone. Using the DALI cockpit, it is possible to configure each of the 12 buttons of the wDALI Remote so that DALI commands are sent to one or several desired destination addresses or groups at the press of a button.

DALI remote control single, or in a set with receiver available. Receiver available separately on request.

Product features

  • Adaptation and modification of the configuration via the DALI bus using the DALI Cockpit software
  • Each key can be assigned up to 4 destination addresses, switching functions and DALI command (s)

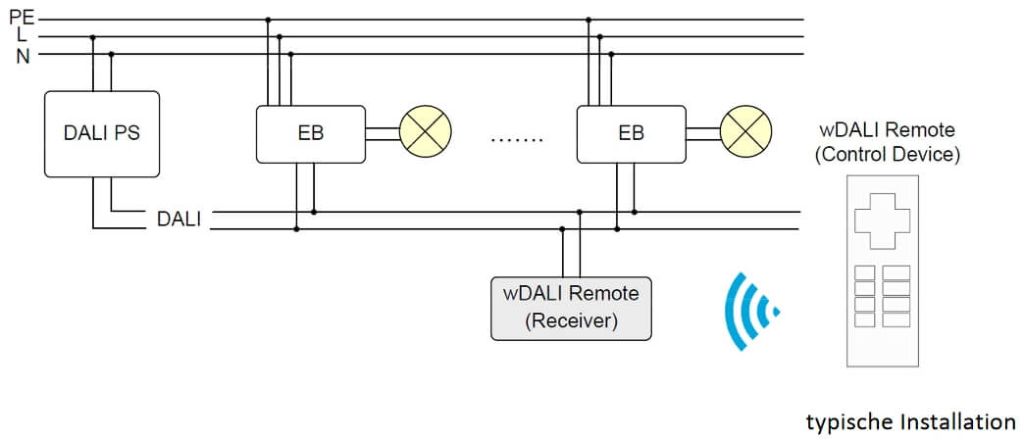

  • The wDALI radio remote control consists of two components, an arbitrary placeable operating device (transmitting unit) and a receiving unit, which is connected to the DALI bus
  • The remote control can be used immediately with the factory setting to control a DALI circuit.
  • Two different factory settings possible
  • The control unit of the wDALI Remote is designed as a typical remote control and can be used from any location within the receiver's reception range.
  • DALI control module with 12 buttons
  • Ability to send DALI commands to individual addresses (0-63), groups (0-15), and broadcast
  • The switch function can be selected between different buttons (short / long button press), change buttons, switches, etc.
  • The following DALI commands are available: up, down, off, recall min / max, goto scene 1-16, direct arc power in% and macros
  • The receiver of the wDALI-Remote is supplied via the DALI line, no additional connection is necessary
  • DALI DT8 Support for controlling the color temperature of luminaires with appropriate macros
  • Memory function for brightness using special macros
  • The wDALI-Remote offers the possibility of controlling components of a DALI circuit via radio
  • Configurable "Power Up" function, ie automatic sending of a command after a power interruption
  • Several wDALI Remote can be used to control the same DALI circuit

Technical specifications

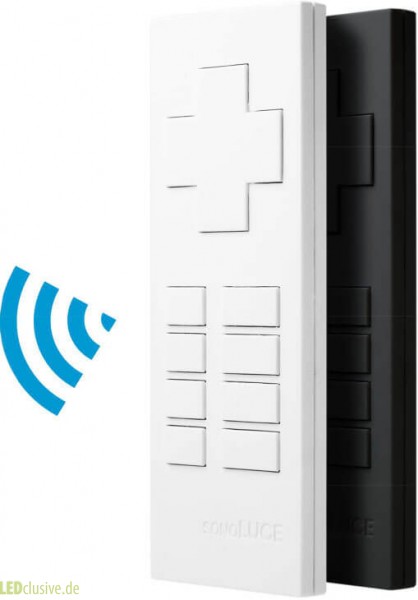

  • Color control panel: white / black (optional)
  • Supply: from DALI bus
  • Typical current consumption: 3.8 mA
  • Output: DALI
  • Function: programmable
  • Frequency band: 2.4 GHz
  • Receiving radius: up to 300 m
  • Dimensions of control panel (W x H x D): 140 mm x 52 mm x 10 mm
  • Approximate battery life Control panel: 6 years
  • Dimensions of receiver (W x H x D): 59 mm x 33 mm x 15 mm
  • Temperature: -10 degrees C to +50 degrees C
  • Protection class: IP20
  • Connection wires cross section: 0.5-1.5 mm²
Properties "DALI radio remote + receiver"
·Dimmable/Control: DALI, WDALI (Lunatone)
Manufacturer "Lunatone Industrielle Elektronik GmbH"

Intelligent light control, in particular thanks to the universal DALI Enocean controller for wireless transmission of DALI signals. Professional solution to implement DALI projects without additional lines on the input side.
