0-10V to DALI Converter incl PS30mA

Product information "0-10V to DALI Converter incl PS30mA"

For the implementation of 0-10V control on DALI with integrated DALI PS

The compact interface module converts 0-10V control signals into DALI dimming values. With this module you can choose from different dimming characteristics. The converter has a passive and active 0-10V input and can supply up to 10 standard DALI loads.
The integrated power supply of the interface is achieved by changing the 0-10V input voltage. This changed voltage is less than 1%. The module is supplied with 12-24V.
By inserting a DALI expander you can achieve a galvanic isolation between the ballasts connected to the DALI output and the 0-10V input.

Overview 0-10V to DALI Converter 30mA:
  • Compact interface module for the conversion of 0-10V control signals to DALI dim levels
  • The interface module provides a 30mA DALI power supply for up to 10 standard DALI ballasts, up to 64 ballasts controllable with the help of a DALI-Expander

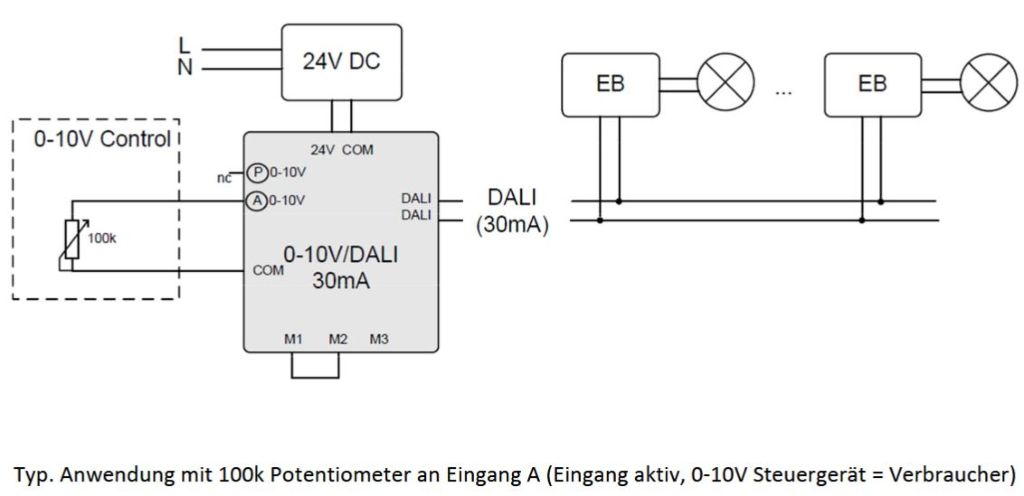

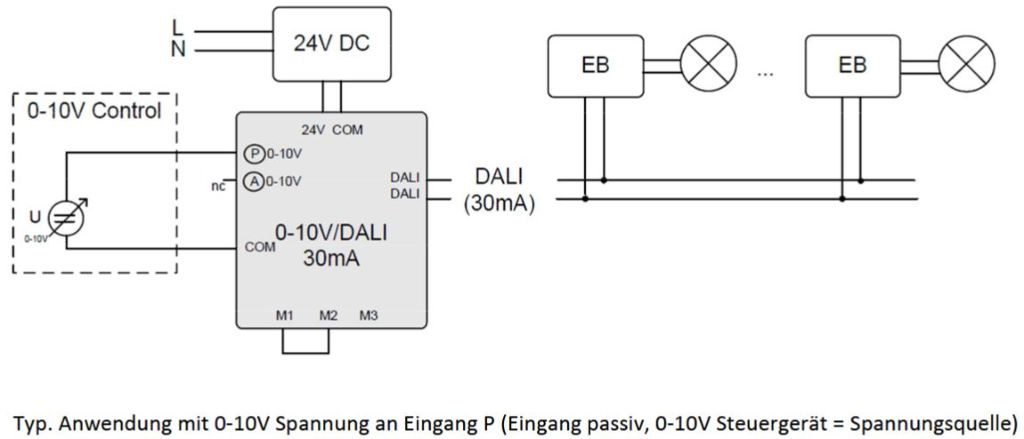

  • Passive and active 0-10V input
  • The converted value is sent broadcast on the DALI subnet
  • A change in the 0-10V input voltage signal (>1%) is used as trigger event
  • The interface module requires a 12-24V power supply
  • Easy set up of the dim characteristic with the help of jumpers
  • A galvanic isolation between the ballasts connected to the DALI-output (30mA) and the 0-10V signal input (and 24V supply input) can be realised with the help of a DALI-expander

Technical data for 86468352-HS:

  • Supply voltage: 12V-24V
  • Typ. current consumption: 4mA + current for DALI output
  • Input: 0-10V, passive oder active
  • Output: DALI Imax=30 mA
  • Function: signal converter, selection of dim characteristic with jumper

Mechanical data:

  • Ambient temperature: -20°C to +60°C
  • Protection class: IP20
  • Maximum connecting wire cross section : 0,5 - 2,5 mm²
  • Mounting: DIN rail

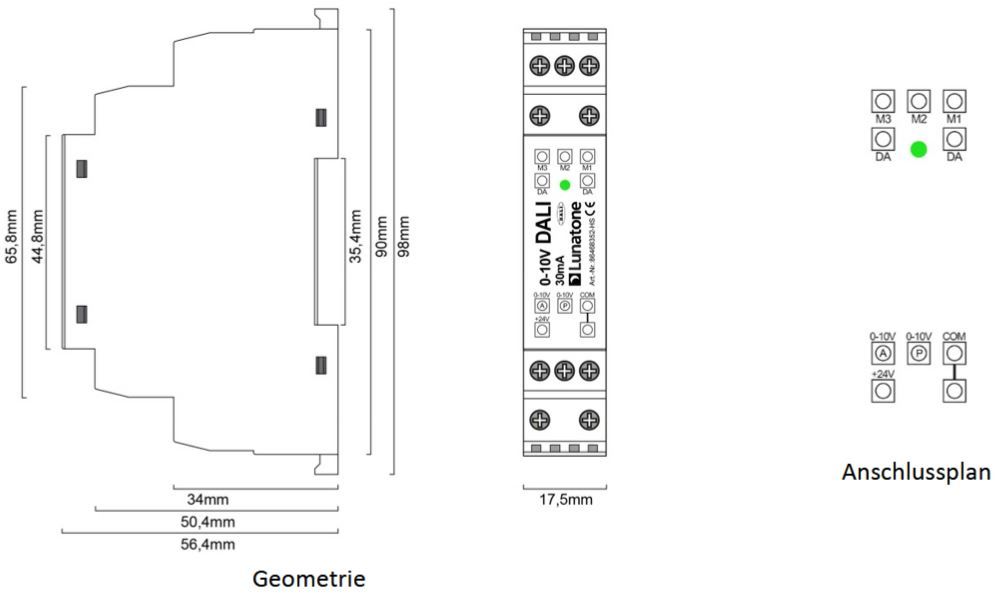

  • Dimensions: 98 x 17.5 x 56 mm
More information about this product can be found in the data sheet under the Download tab.
