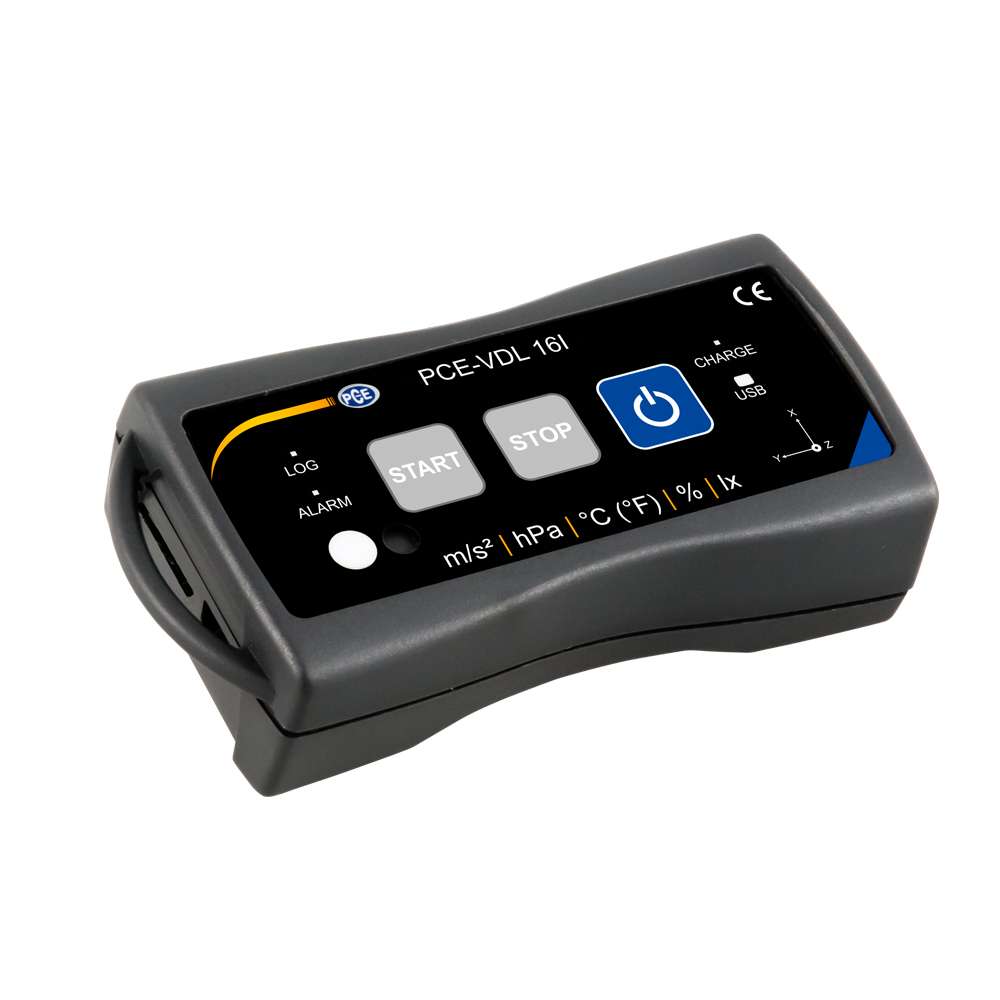

Data logger for lux measurement PCE-VDL-16I

452.08€ *
Net price: 379.90€

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


Stck

  • PCE-VDL-16I
  • PCE-VDL 16I
  • 0.06 kg
  • 4250348717740
  • PCE Deutschland GmbH
Data logger PCE-VDL 16I for lux measurement, humidity, temperature and vibration measurement... more

Data logger PCE-VDL 16I for lux measurement, humidity, temperature and vibration measurement

The data logger PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz. The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.

For luminaire manufacturers, it is necessary to carry out series of measurements on temperature and humidity, especially for luminaires with high IP protection. These changes must be carried out over longer periods of time and recorded metrologically. This data logger is the ideal solution here, as it also allows illumination to be logged. Another field of application is the transport of sensitive LED lights. Shock and vibration can also be recorded in the lab.

Features of the data logger:

  • 3-Axis acceleration up to 800 Hz
  • Temperature, Humidity, Air pressure, Vibration, and Light
  • 32 GB SD memory card
  • Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
  • Made in Germany

Technical data of the universal data logger PCE-VDL 16I:

Measurand
Measuring range temperature -20 ... +65 °C
Accuracy ±0,2 °C
Measurement / storage rate 1 s ... 1800 s
Measuring range humidity 0 ... 100 % r.H.
Accuracy ±1,8 % r.H.
Measurement / storage rate 1 s ... 1800 s
Measuring range air pressure 10 ... 2000 mbar
Accuracy ±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar
Measurement / storage rate 1 s ... 1800 s
Measuring range light 0,045 ... 188.000 lx
Accuracy n/a
Measurement / storage rate 1 s ... 1800 s
Measuring range 3 axes Acceleration   ±16 g
Accuracy ±0,24 g
Max. Sampling rate 800 Hz ... 1 Hz

General technical data of the mini data logger PCE-VDL 16I

Memory

2.5 million readings per measurement, 3.2 billion readings with 32 GB microSD memory card included

Button

Start / stop of a measurement; On or off switch of the data logger

LED

Log: operating status
Alarm: alarm display
Charge: charge level indicator
USB: Status of the connection to the PC

Power supply

integrated Li-Ion battery 3.7 V / 500 mAh
The battery is charged via the USB port

Integrated sensors

Temperature, relative humidity, barometric pressure, illuminance, 3-axis acceleration

Interface

USB

PC-Software

Free setup and evaluation software (Windows XP / Vista / 7/8/10 32-bit / 64-bit) for collecting and analyzing the data.

Operating conditions

Temperature -20 ... +65 °C

Storage conditions

Temperature +5 ... +45 °C (ideal storage conditions for battery)
10 ... 95 % relative humidity, non-condensing

Standards

The data logger PCE-VDL 16I complies with the EU directive RoHS / WEEE.

Weight

ca. 60 g

Dimensions(L x W x H)

87 x 44 x 23 mm


Delivery scope
1 x Data logger PCE-VDL 16I
1 x Data cable USB - USB Micro
1 x 32 GB SD memory card
1 x SD card ejector tool
1 x USB pen drive with PC software and user manual



Weitere Informationen sowie die Bedienungsanleitung finden Sie im Download-Tab.
