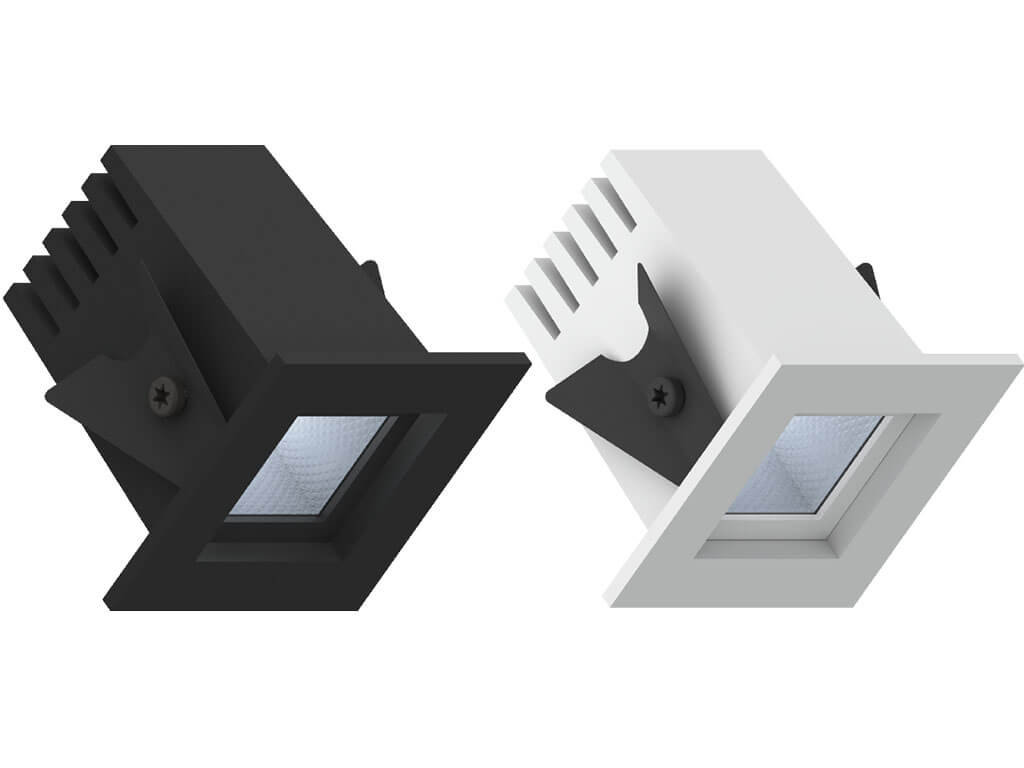

Illuxtron Fabio 35 Mini Downlight
The mini recessed spotlights Fabio 35 from Illuxtron are real powerhouses!
Compact, technologically innovative and economical. So powerful in light output that they are also available in dimmable versions!
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These Fabio 35 series microfacets provide perfect lighting for objects and spaces.
The microfacets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called dark light reflectors
- High luminous efficacy due to the very good reflectivity of the microfacet technology
- Low glare values (UGR index) due to avoidance of unnecessary scattered light
- Ideal light mixture of the LED light spectra for very good color rendering
For more extensive details of these technical features, please refer to the Illuxtron Mini recessed spotlight overview.
The most important technical features of Fabio 35:
| case color | matte white; RAL 9016 (XX=MW) matte gray RAL 9006 (XX=GR) matte black RAL 9005 (XX=BL) |
| Material | Housing: Die-cast aluminum Reflector glass: Polycarbonate |
| Hole diameter | 35 mm x 35 mm |

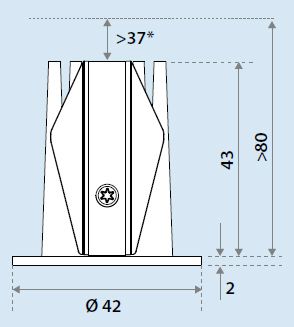

| Required installation depth | > 80 mm |
| Use | Interior |
| Flash angle (FWHM) | 40° (65° FWTM) |
| CRI / Ra (typ.) | 82 |
| Color consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Safety sign | EN60598 / EN62031 / EN62471 |
| EMC Directive | EN55015 |
| Guarantee | 7 Jahre |
| Energy class | A |

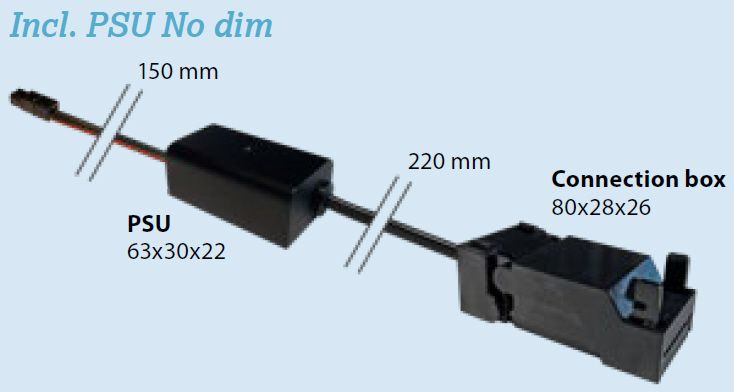

Fabio 100-240 V
The power supply is already included in this version. This version is only switchable, dimming is not possible.
For more information on Fabio 35 100-240 V Mini Downlights, please refer to the data sheet.
Product Specifications Fabio 100-240 V:
| Art.no. | 965303XX6513 | 965303XX6613 | 965303XX6713 |
| Color temperature | 2700 K | 3000 K | 4000K |
| Luminous flux | 375 lm | 400 lm | 425 lm |
| Type | Incl. PSU | ||
| Input | 100-240V | ||
| W | 5,7 | ||
| UGR | 10,7 | 10,9 | 11,1 |
| Lm/W (with EVG) | 66 | 70 | 75 |
| Pf | 0,6 | ||
| Protection class | II | ||
| Ripple | < 3% | ||
| Input current | 20A 170µS | ||
| Efficiency | 77 | ||
| Power factor | 60 | ||
| Dimmability | No | ||
Note: This table only includes the Concrete spring version.
Fabio 35 350 mA
This version has extensive possibilities for dimming. This is done depending on the selection of the external and additionally required LED driver.
You can additionally order here: To the overview of fitting 350mA constant current sources (LED-Driver).
Further information about Fabio 35 350 mA Mini Downlights can be found in the data sheet.
Product Specifications Fabio 35 350 mA:
| Art.no | 965303XX0111 | 965303XX7211 | 965303XX0211 |
| Color temperature | 2700 K | 3000 K | 4000K |
| Luminous Flux | 375 lm | 400 lm | 425 lm |
| Type | Incl. Connection box | ||
| Input | 350mA | ||
| Vf | 11,9 | ||
| W | 4,5 | ||
| UGR | 10,7 | 10,9 | 11,1 |
| Lm/W (without EVG) | 83 | 89 | 94 |
| Protection Class | III | ||
| Dimmability | Alternative: DALI, 1-10V, Push, Triac(Phase dimming) depending on the LED driver | ||
Note: This table only includes the Concrete spring version.
Note:
All Illuxtron products are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
| ·Hole diameter: | 35mm |
| ·Lamp shape: | Recessed ceiling |
| ·Power range: | 1 - 5 W, 5 - 20 W |
The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
