Fabio 35 Mini Downlight

Product information "Fabio 35 Mini Downlight "

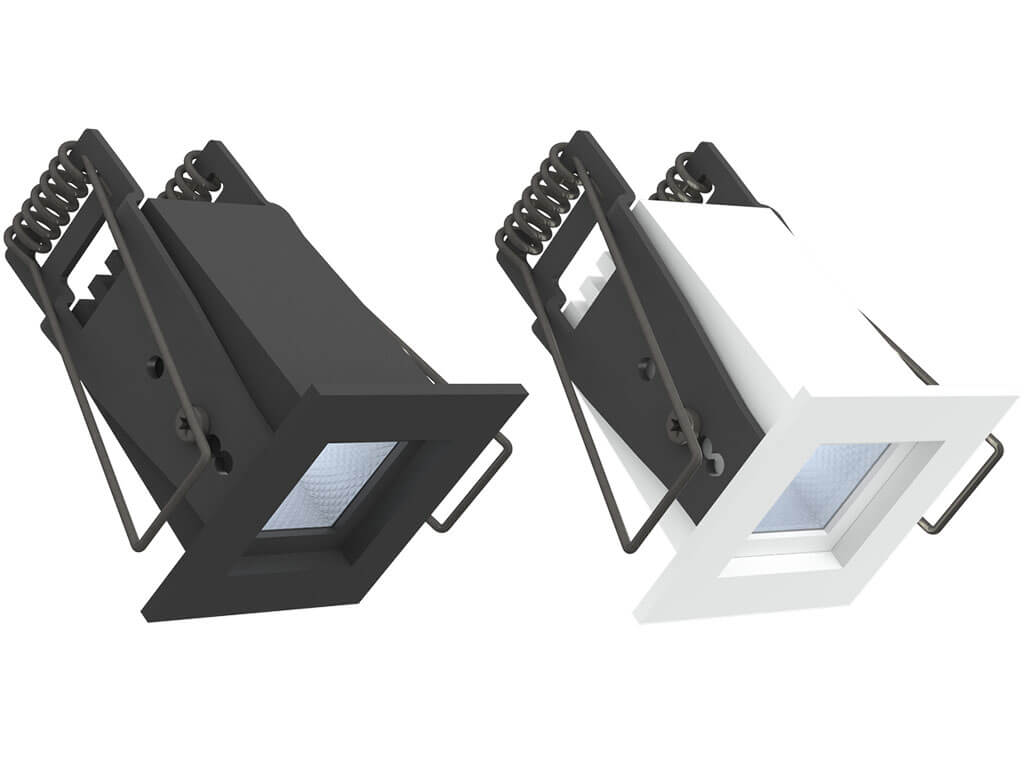

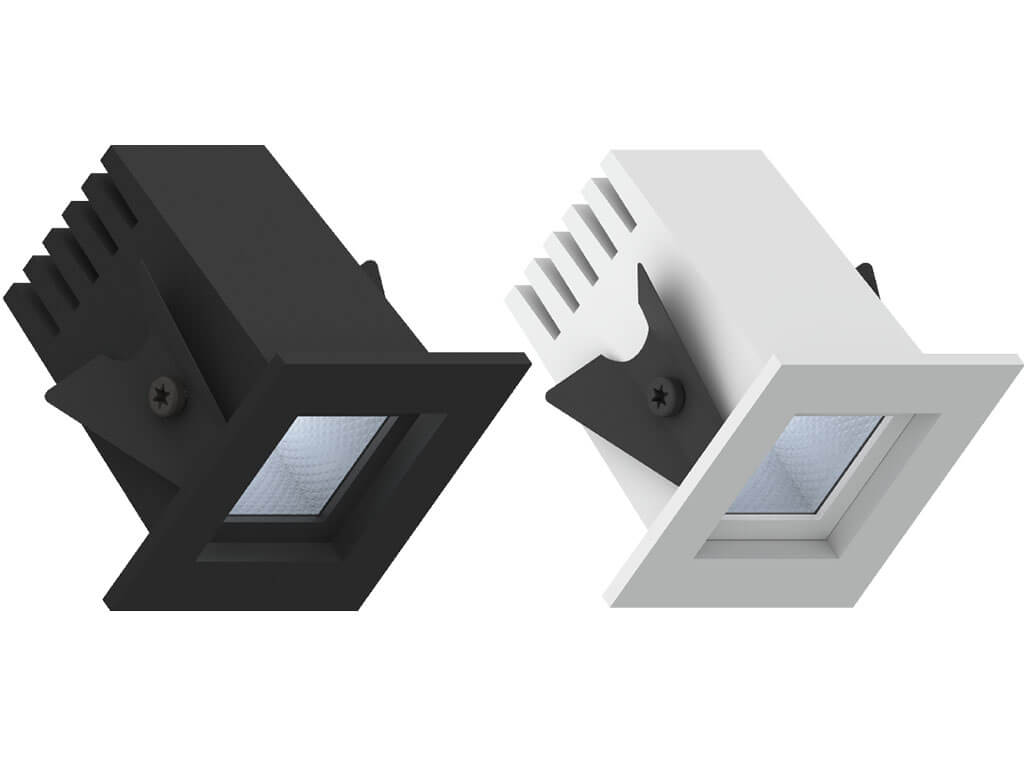

Illuxtron Fabio 35 Mini Downlight

The mini recessed spotlights Fabio 35 from Illuxtron are real powerhouses!

Compact, technologically innovative and economical. So powerful in light output that they are also available in dimmable versions!

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These Fabio 35 series microfacets provide perfect lighting for objects and spaces.
The microfacets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called dark light reflectors

  • High luminous efficacy due to the very good reflectivity of the microfacet technology
  • Low glare values (UGR index) due to avoidance of unnecessary scattered light
  • Ideal light mixture of the LED light spectra for very good color rendering

For more extensive details of these technical features, please refer to the Illuxtron Mini recessed spotlight overview.

The most important technical features of Fabio 35:

case colormatte white; RAL 9016 (XX=MW)
matte gray RAL 9006 (XX=GR)
matte black RAL 9005 (XX=BL)
MaterialHousing: Die-cast aluminum
Reflector glass: Polycarbonate
Hole diameter35 mm x 35 mm
Required installation depth> 80 mm
UseInterior
Flash angle (FWHM)40° (65° FWTM)
CRI / Ra (typ.)82
Color consistency (MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK03
Operating temperature (Ta)-20°C / +45°C
Safety signEN60598 / EN62031 / EN62471
EMC DirectiveEN55015
Guarantee7 Jahre
Energy classA

Fabio 100-240 V

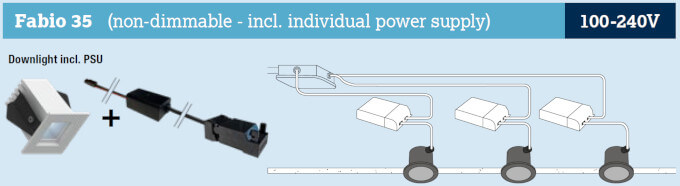

Fabio 35 100-240V
The power supply is already included in this version. This version is only switchable, dimming is not possible.
For more information on Fabio 35 100-240 V Mini Downlights, please refer to the data sheet.

Product Specifications Fabio 100-240 V:

Art.no.965303XX6513965303XX6613965303XX6713
Color temperature2700 K3000 K4000K
Luminous flux375 lm400 lm425 lm
TypeIncl. PSU
Input100-240V
W5,7
UGR10,710,911,1
Lm/W (with EVG)667075
Pf0,6
Protection classII
Ripple< 3%
Input current20A 170µS
Efficiency77
Power factor60
DimmabilityNo

Note: This table only includes the Concrete spring version.


Fabio 35 350 mA

Fabio 35 350mA
This version has extensive possibilities for dimming. This is done depending on the selection of the external and additionally required LED driver.
You can additionally order here: To the overview of fitting 350mA constant current sources (LED-Driver).
Further information about Fabio 35 350 mA Mini Downlights can be found in the data sheet.

Product Specifications Fabio 35 350 mA:

Art.no965303XX0111 965303XX7211965303XX0211
Color temperature2700 K3000 K4000K
Luminous Flux375 lm400 lm425 lm

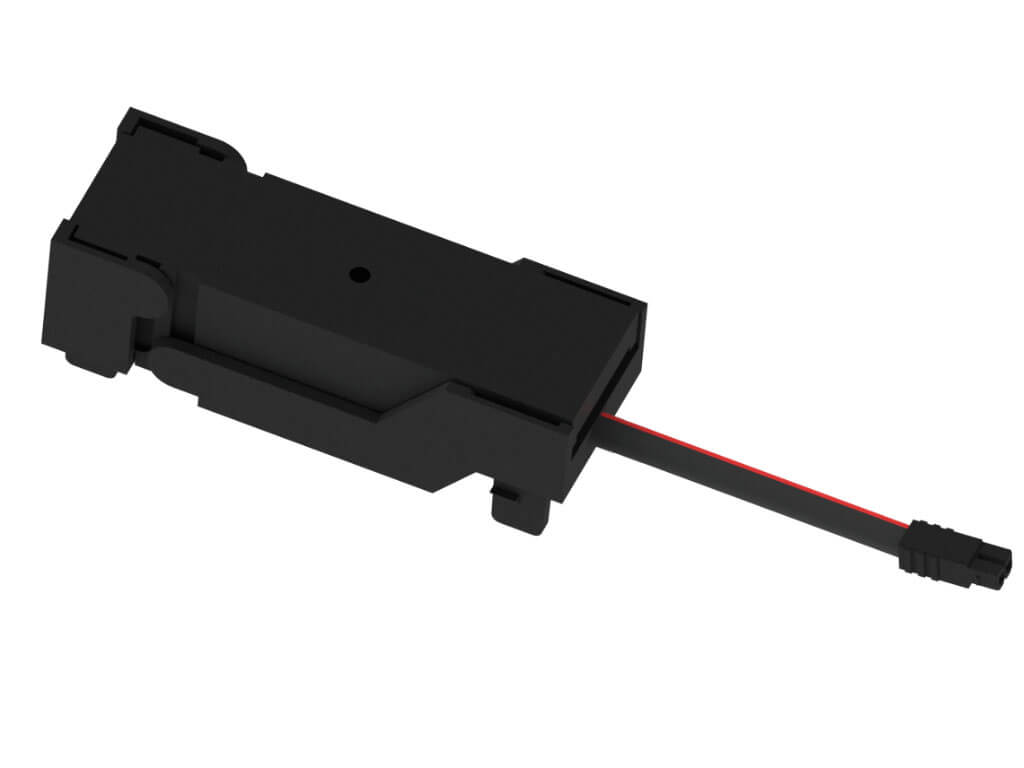

TypeIncl. Connection box
Input350mA
Vf11,9
W4,5
UGR10,710,911,1
Lm/W (without EVG)838994
Protection ClassIII
DimmabilityAlternative: DALI, 1-10V, Push, Triac(Phase dimming)
depending on the LED driver

Note: This table only includes the Concrete spring version.

Note:
All Illuxtron products are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.



Properties "Fabio 35 Mini Downlight "
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Dimmable/Control: 1..10V, DALI, Phase-Cut (Triac), Push-Button
·Hole diameter: 35mm
·Lamp shape: Recessed ceiling
·Power range: 1 - 5 W, 5 - 20 W
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Datasheet Illuxtron

Fabio 35

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

FAQ-Deckeneinbauspots

Related Products

24V Netzteile

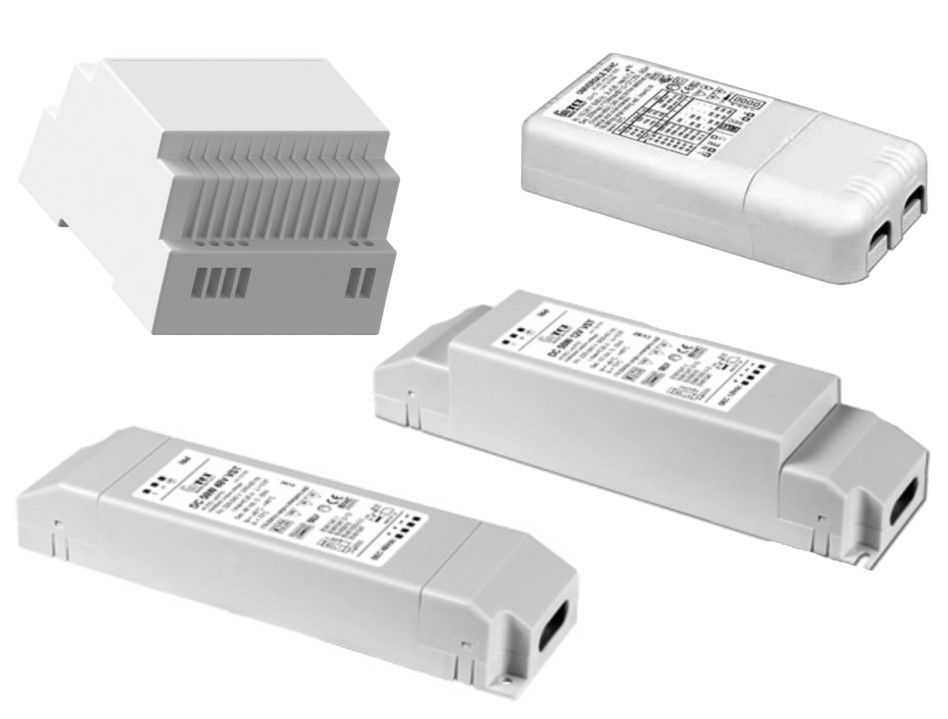

24V Power Supplies for Illuxtron Mini Downlight Series
24V constant voltage sources suitable for Illuxtron Fluxe 35/50, Fabio 35, Omega 35/50, Linea 68
Product number: 2998
Type

€34.51*

delivery time 1-3 Weeks*

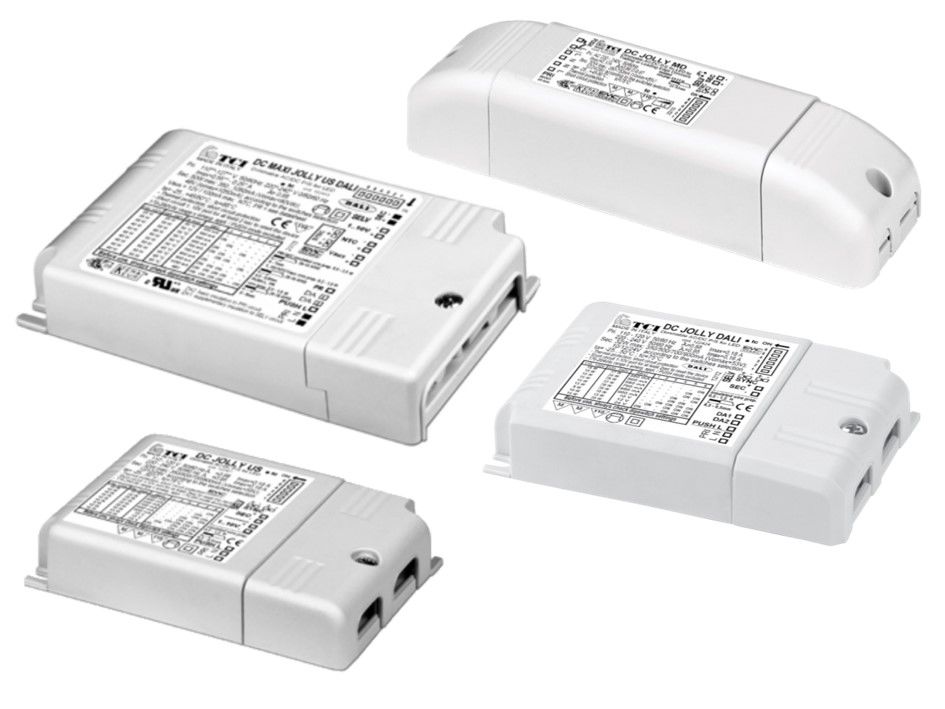

350mA Netzteile
350mA Constant Current Sources for Illuxtron Mini DL Series
350mA constant current sources suitable for Illuxtron Fluxe 35/50, Fabio 35, Omega 35/50, Linea 68
Product number: 2996
Version
+2

Variants from €65.45*
€59.50*

delivery time 1-3 Weeks*

Similar Products

Fluxe 35

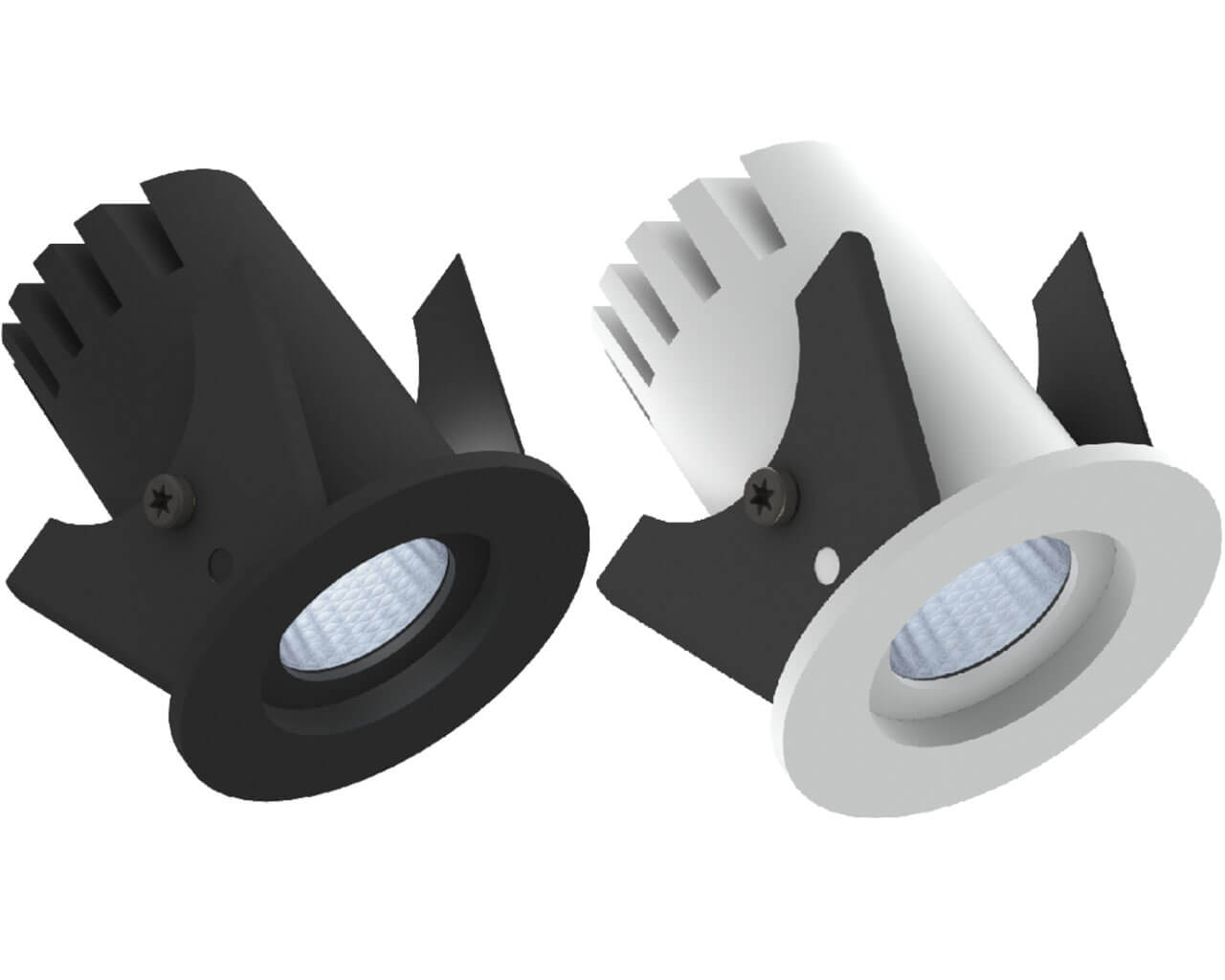

Fluxe 35
Elegant LED Downlights from Illuxtron, various colours and colours Light colors, housing colors and selectable for 350mA or 230VAC. Suitable for 35mm hole diameter.
Product number: 2960
Ballast
+1

Variants from €55.93*
€48.79*

delivery time 1-3 Weeks*

Fluxe 50

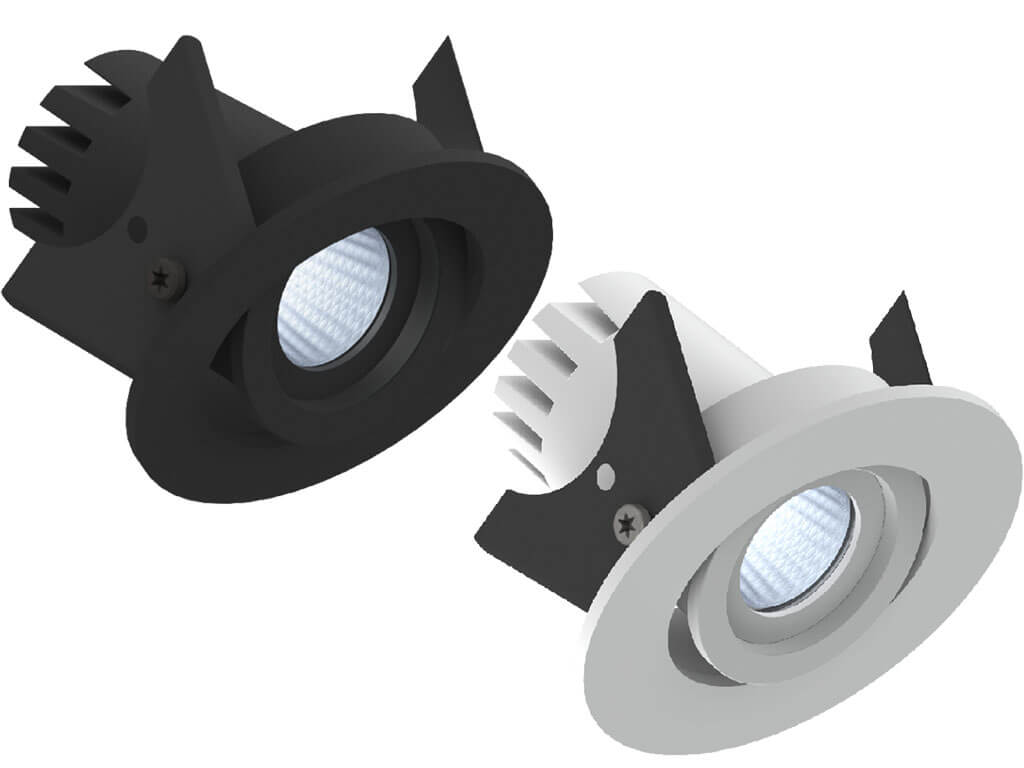

Fluxe 50 adjustable
