Illuxtron Pointer Spot WL LV Adjustable

Product information "Illuxtron Pointer Spot WL LV Adjustable"

Illuxtron Pointer Spot WL LV Adjustable - Luxury wall light

The Illuxtron Pointer Spot Wall Light WL LV Adjustable is a state-of-the-art indoor lighting solution. With its sleek design and advanced technology, this wall light offers superior light output and energy efficiency, making the wall light an ideal choice for bedrooms, hotel lounges or other atmospheric spaces. The stylish wall light with integrated USB-C connection can be connected directly to the mains without an external driver, allowing for easy installation. The practical and stylish wall light can be dimmed to less than 1 % using a standard triac wall dimmer.

The Pointer series from Illuxtron uses a patented optical system to ensure that all the light shines out of the luminaire through a hole measuring just 8 millimetres. This makes the light source virtually invisible and creates uniform, harmonious Illumination.

Main Features and Technical Specifications

  • High-end aluminum heatsink with a unique elegant design
  • PCB (printed circuit board) with high-performance Lumileds Powerleds available in 2700K, 3000K and 4000K
  • Illuxtron patented optical lens system for pin-hole light
  • Anti-glare cap ensuring no stray light with a total light opening of only 8mm
  • Beam angle options: 35° (45° FWTM) / 60° (80° FWTM)
  • Two housing colours: Matt white RAL 9016, Matt black RAL 9005 and 4 different ring colours: Gold, silver, black, white
  • Integrated USB-C connection
  • Fixture material: Die-cast aluminium
  • IK rate: IK10
  • Operating temperature: -20°C to +45°C
  • Safety marks: EN60598 / EN62031 / EN62471
  • EMC compliance: EN55015
  • Colour consistency: MacAdam step 3
  • Warranty: 7 years
  • Energy class: F (2700K/3000K) and E (4000K)

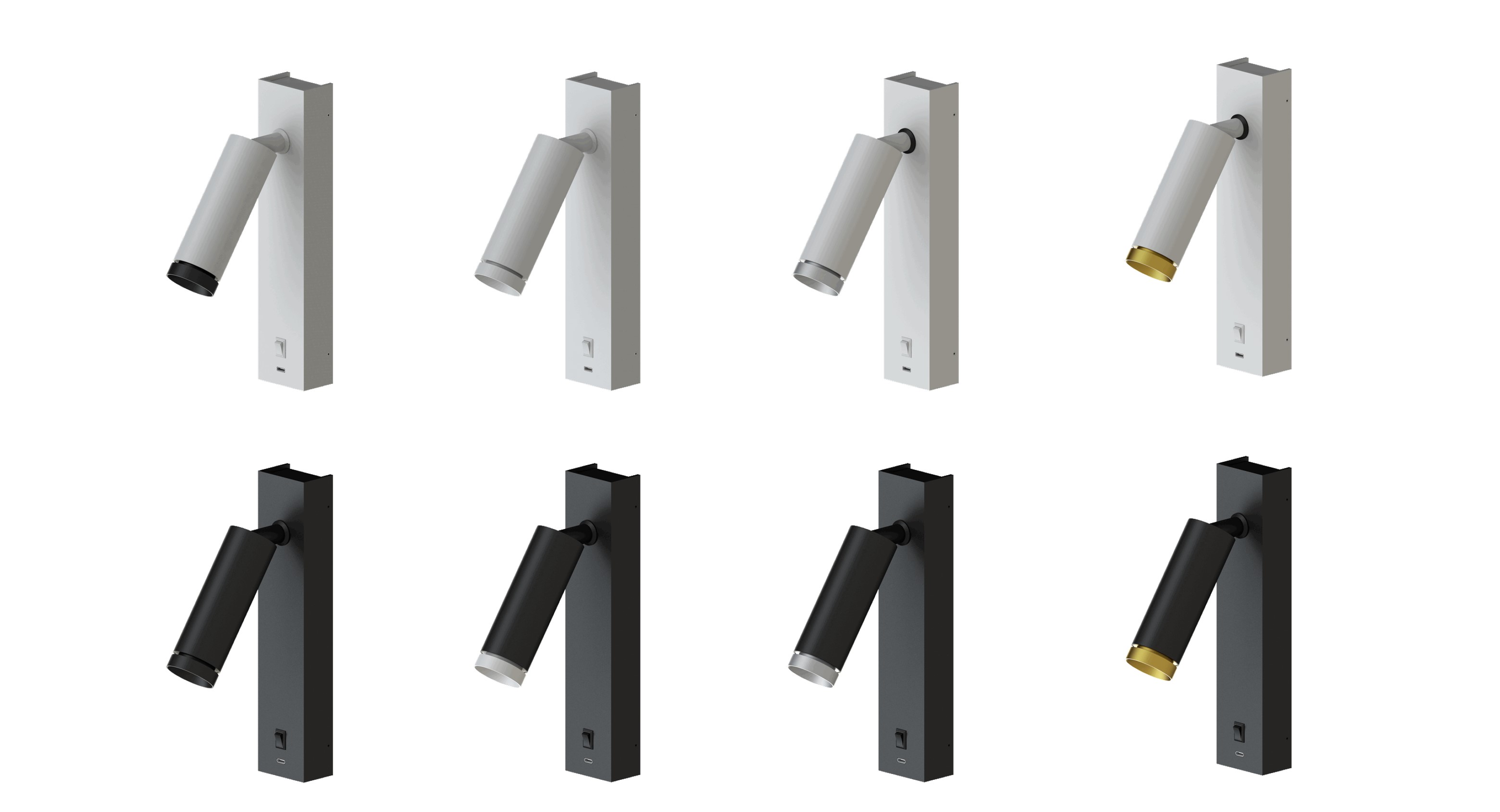

Available Colour Variants

Colour VariantArticle Number

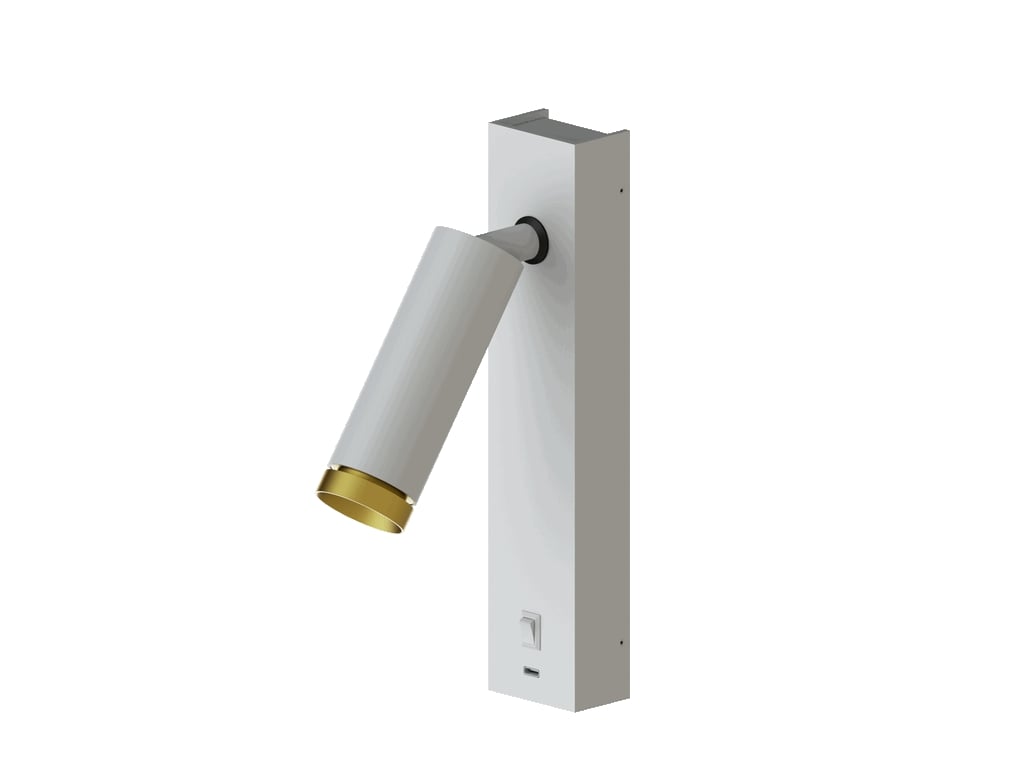

Matt white / GoldXX=61

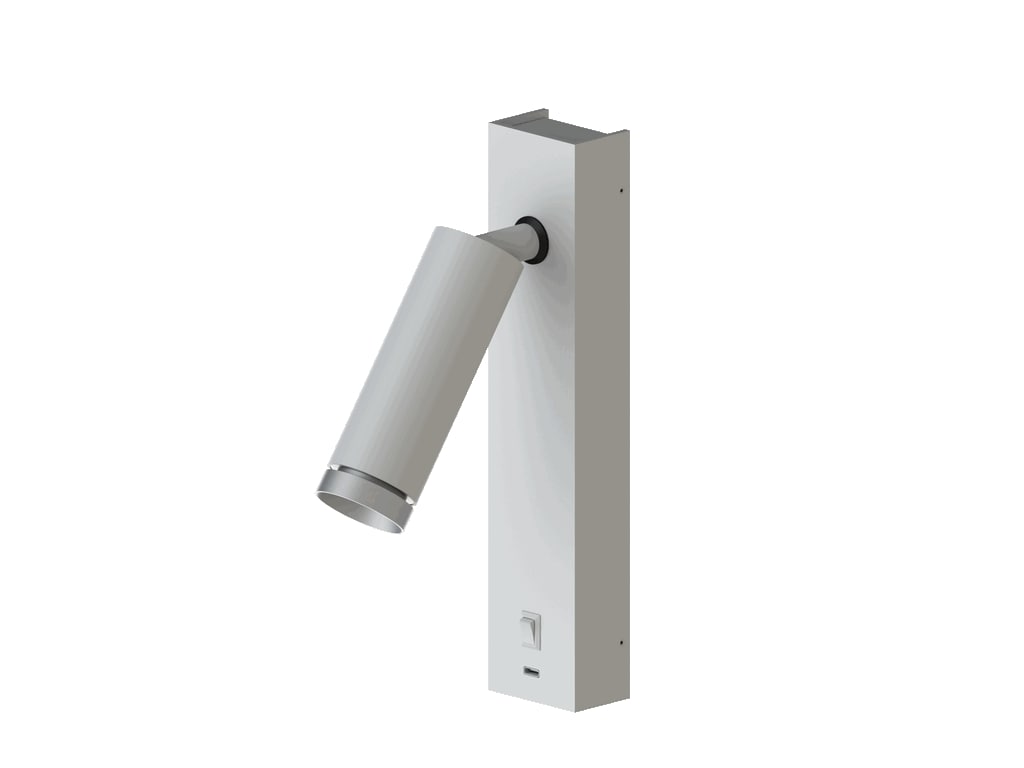

Matt white / SilverXX=63

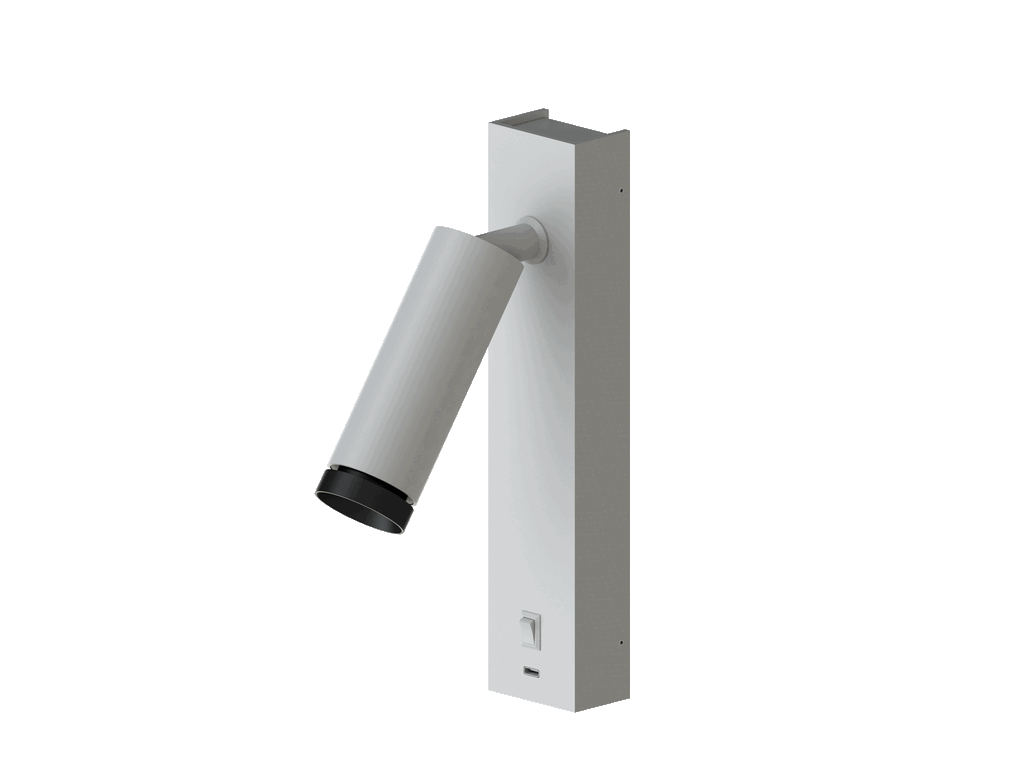

Matt white / BlackXX=62

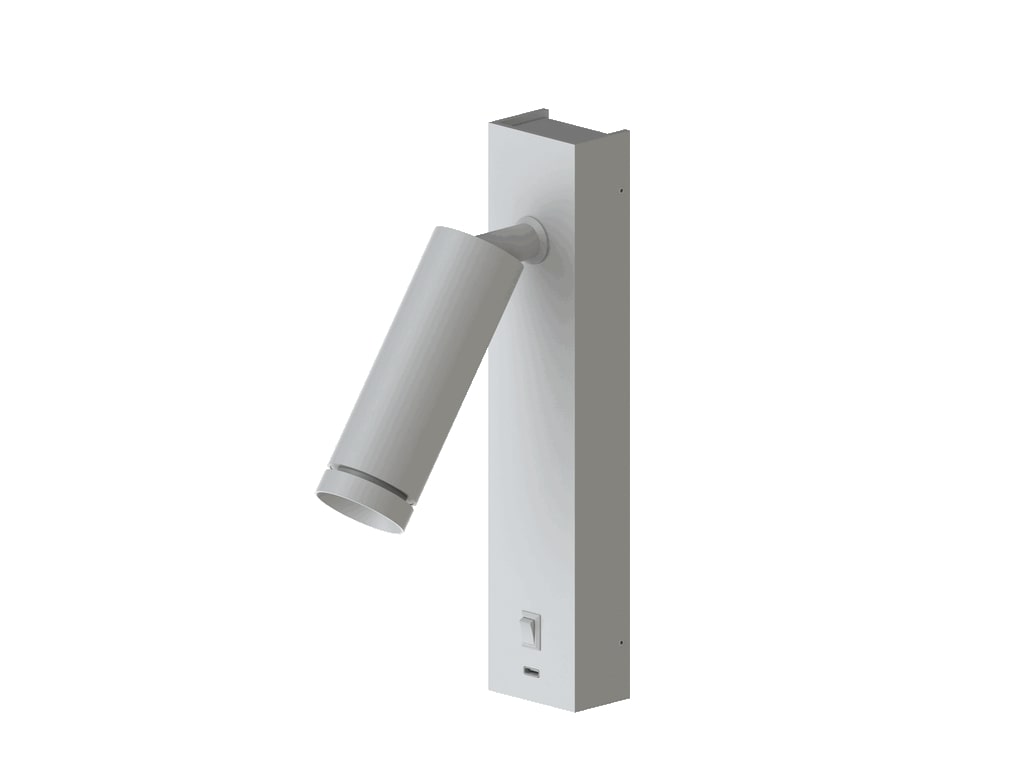

Matt white / WhiteXX=65

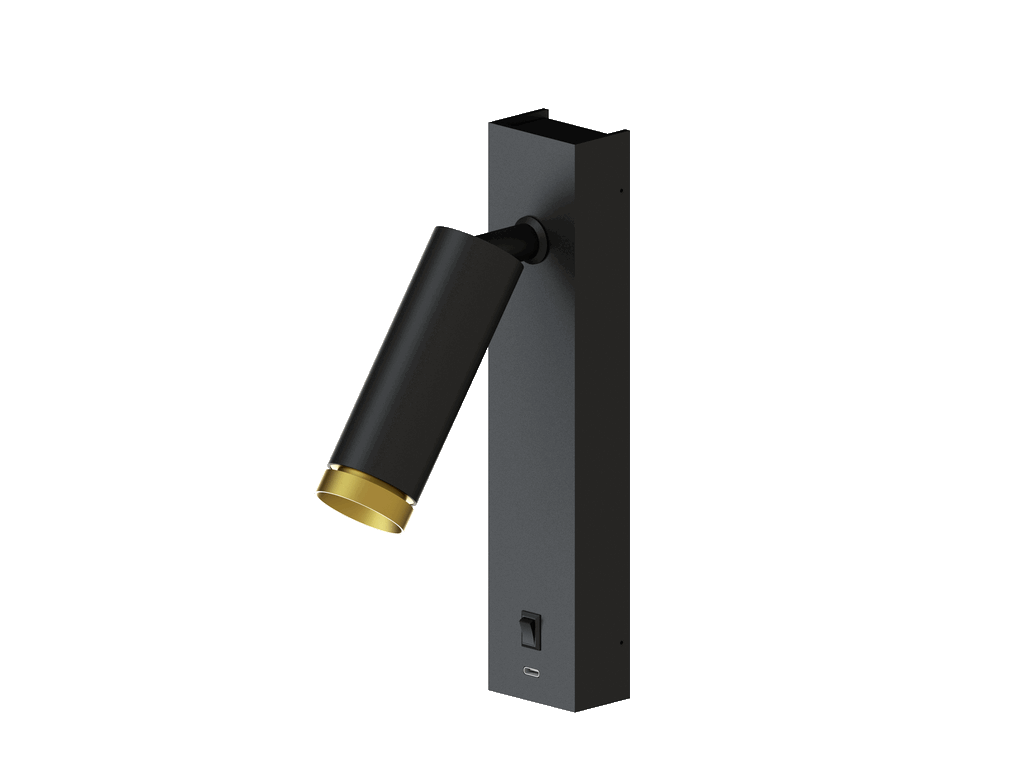

Matt black / GoldXX=71
Matt black / SilverXX=74
Matt black / BlackXX=72
Matt black / WhiteXX=76

Item Specifications for Illuxtron Pointer Spot WL LV Adjustable

DescriptionItemCodeCCTCRILichtstrom (Lm)Leistung (W)
Pointer Spot WL LV 35° 175 Lm 2700K No dim0W2703XXLU022700K821753.3
Pointer Spot WL LV 35° 200 Lm 3000K No dim0W2703XXLV023000K822003.3
Pointer Spot WL LV 35° 225 Lm 4000K No dim0W2703XXLW024000K822253.3
Pointer Spot WL LV 60° 225 Lm 2700K No dim0W2703XXLX022700K822253.3
Pointer Spot WL LV 60° 250 Lm 3000K No dim0W2703XXLY023000K822503.3
Pointer Spot WL LV 60° 275 Lm 4000K No dim0W2703XXLZ024000K822753.3

Safety and Compliance Information

The Illuxtron Pointer Spot WL LV Adjustable is designed with safety and compliance in mind. It adheres to the following standards:

  • Safety marks: EN60598 / EN62031 / EN62471
  • EMC compliance: EN55015
  • Energy efficiency class: F (2700K/3000K) and E (4000K)

Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For further details please see the linked data sheet in the download tab.

Properties "Illuxtron Pointer Spot WL LV Adjustable"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Lamp shape: Ceiling/wall mounting
Datasheet & further Infos about this product

Datasheet Illuxtron Pointer Spot Wall Light WL LV Adjustable
Manual Illuxtron Pointer Spots

Product Manual Illuxtron Pointer Spot

Manufacturer "Illuxtron International BV"

ILLUXTRON

with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.

For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland


E-Mail: sales@illuxtron.com
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).

Similar Products

Pointer 40

Average rating of 5 out of 5 stars

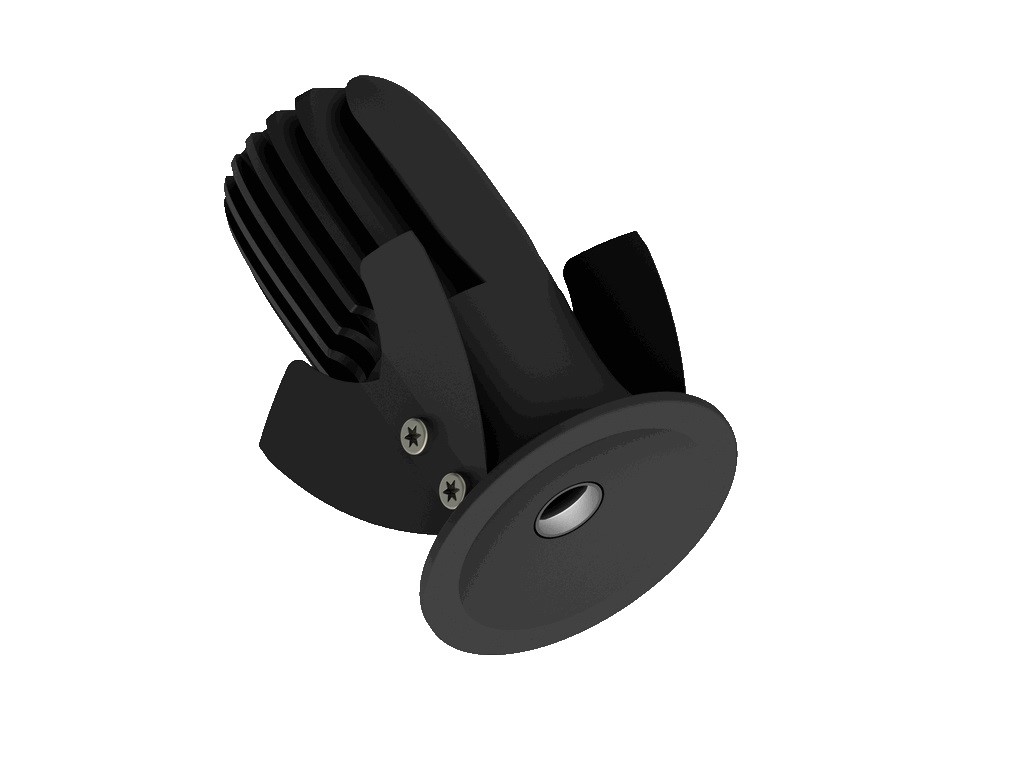

Pointer 40
