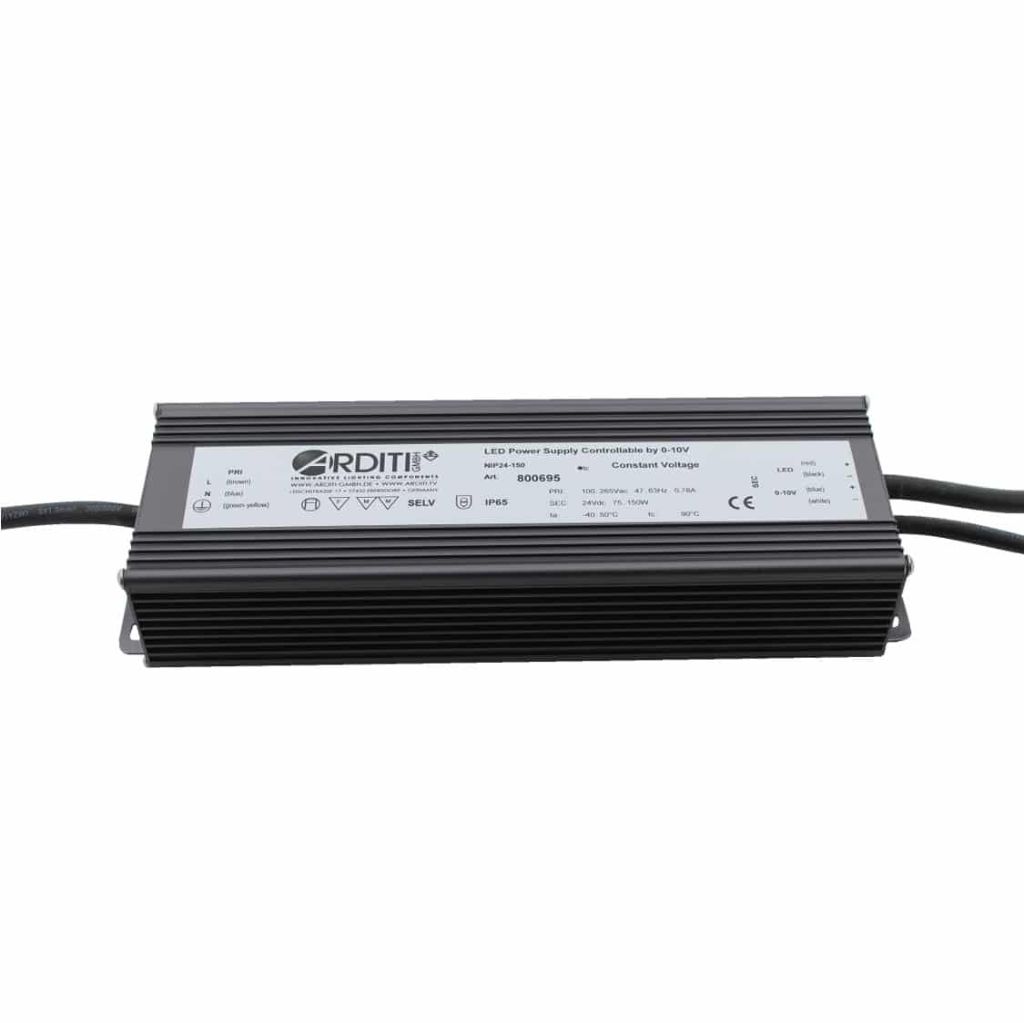

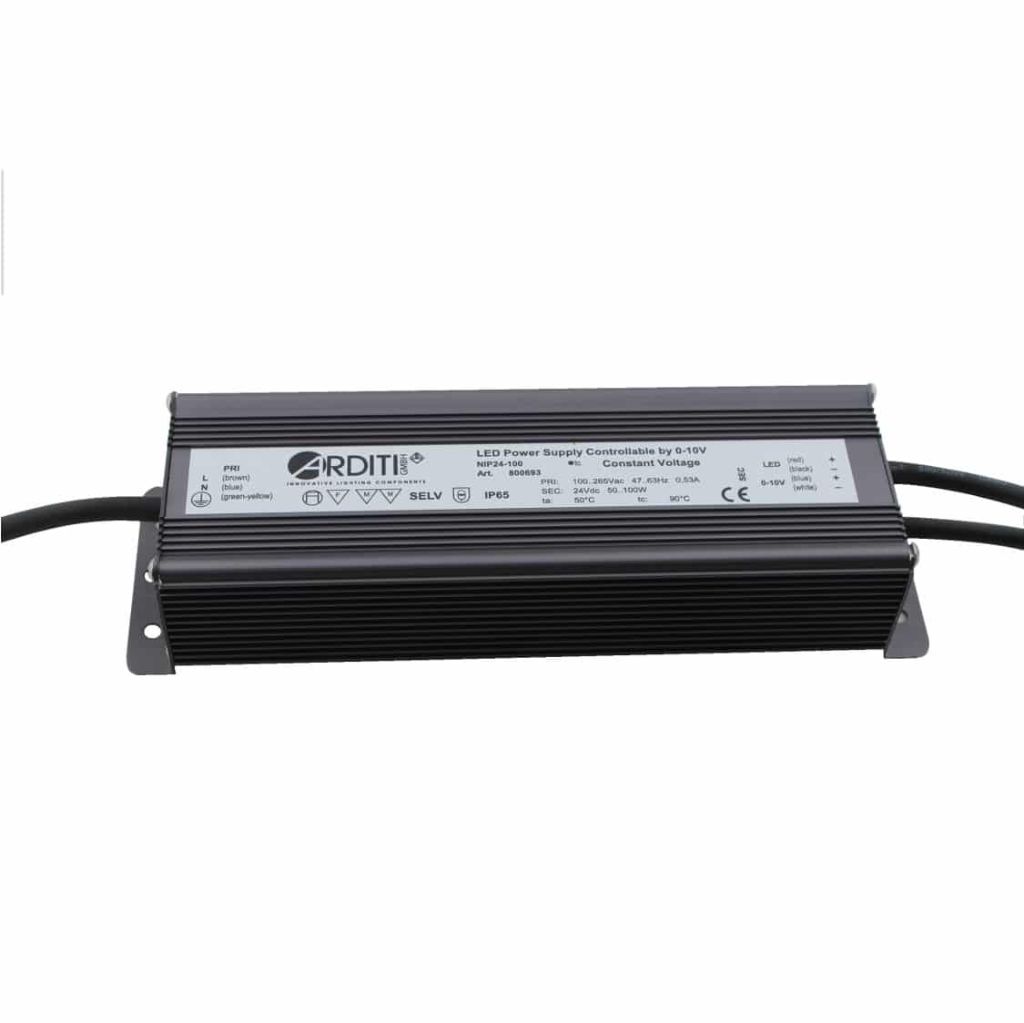

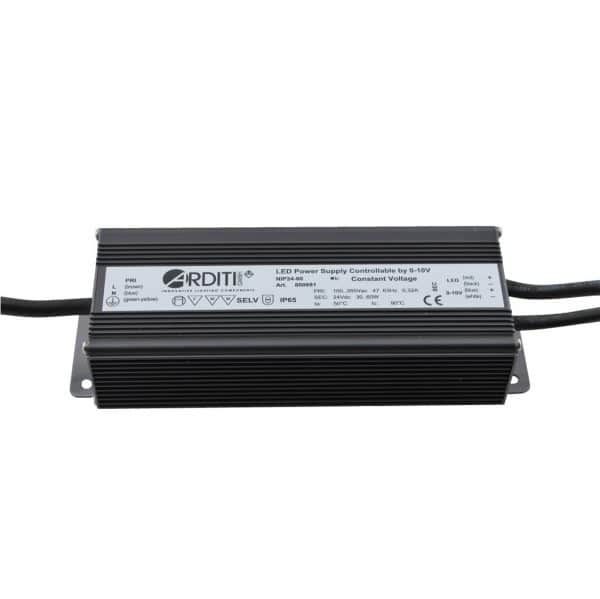

LED Power supply 60/100/150W 12V/24V controllable 0-10V

Product information "LED Power supply 60/100/150W 12V/24V controllable 0-10V"

Powerful LED power supply up to 150W with constant voltage - amplitude dimming, waterproof (IP65)

This highly efficient LED module offers the possibility of being operated as a controllable power supply unit with a constant output voltage by connecting the used LEDs in parallel. It can be controlled by a high-impedance potentiometer and control voltage 0-10V. In addition, by lowering the voltage, the LED device has a dimming function, impresses with its robustness against both high and low temperatures, and has a power factor of 98%.
The product is available in six versions: 60W, 100W and even 150W high-performance with corresponding constant voltage 12V and 24V.

Further features:

  • Waterproof LED power supply with constant output voltage (connect LEDs in parallel)
  • Fixed connection cables
  • Dimming by lowering of the voltage (amplitude dimming)
  • Short-circuit protection, protection against overload
  • High efficiency with very high power factor 98%
  • Largely cold- and heat-resistant (ta: -40 .. + 50 ° C) with protection class IP65
  • Controllable by
    • Potentiometer 100kO
    • Control voltage 0-10 V (full switch-off only by mains switch)

Note:
Do not insert switches into the secondary circuit!
Only connect LEDs in parallel



Technical data:

Variation

60W 12V

60W 24V100W 12V100W 24V150W 12V150W 24V
Article number800690800691800692800693800694800695
TypeNIP12-60NIP24-60NIP12-100NIP24-100NIP12-150NIP24-150
Input voltage100..265 Vac
Frequency47..63 Hz
Nominal output voltage12 Vdc24 Vdc12 Vdc24 Vdc12 Vdc24 Vdc
Output power30..60 W30..60 W50..100 W50..100 W75..150 W75..150 W
Output voltage28..56 Vdc20..44 Vdc14..32 Vdc53..106 Vdc40..80 Vdc28..56 Vdc
Max. output voltage65 Vdc50 Vdc38 Vdc117 Vdc93 Vdc70 Vdc
Power factor acc. to EN61000-3-20,920,980,98
Ambient temperature-40..+50 °C
Rated max. temperature90 °C
Control current max.1,5 mA
Inrush current45 A; 0,085 ms65 A; 0,085 ms65 A; 0,085 ms
Overload protectionyes
Short circuit protectionyes
IP Protection level65

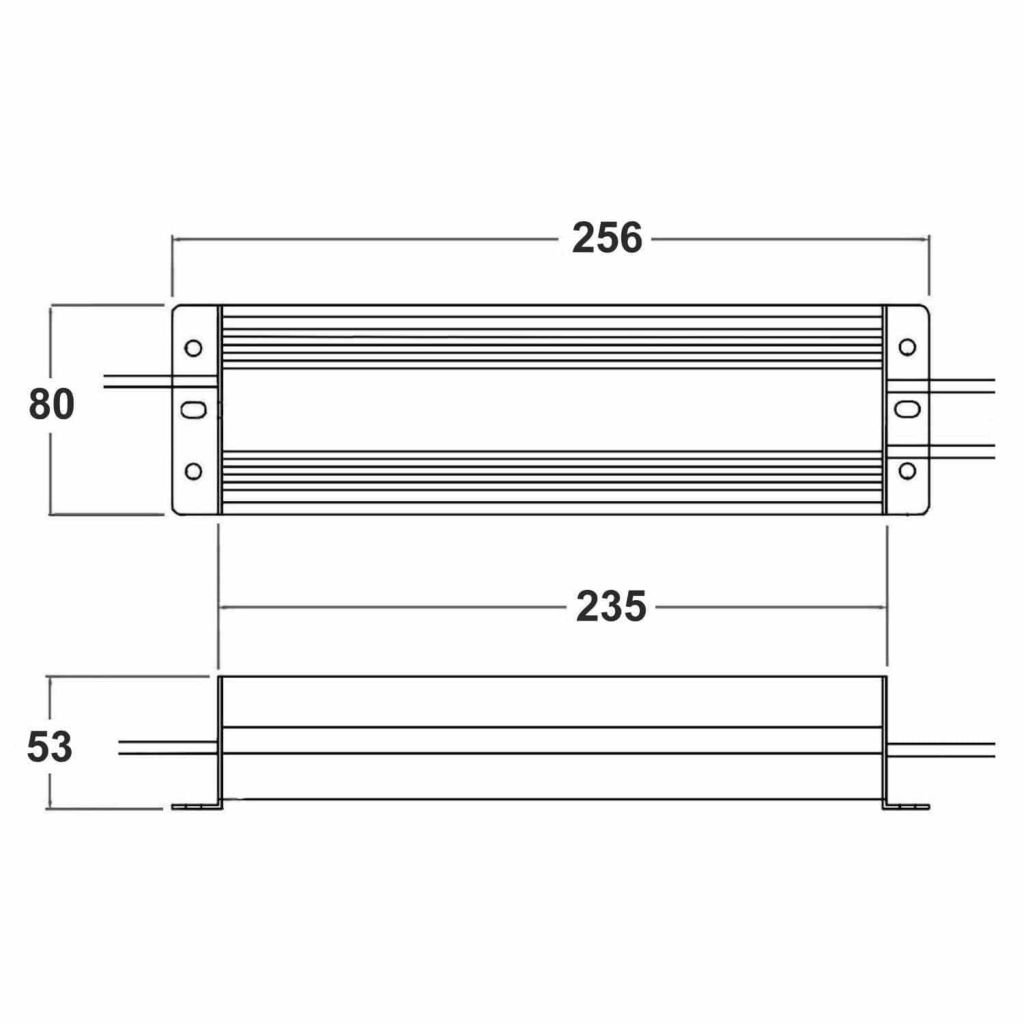

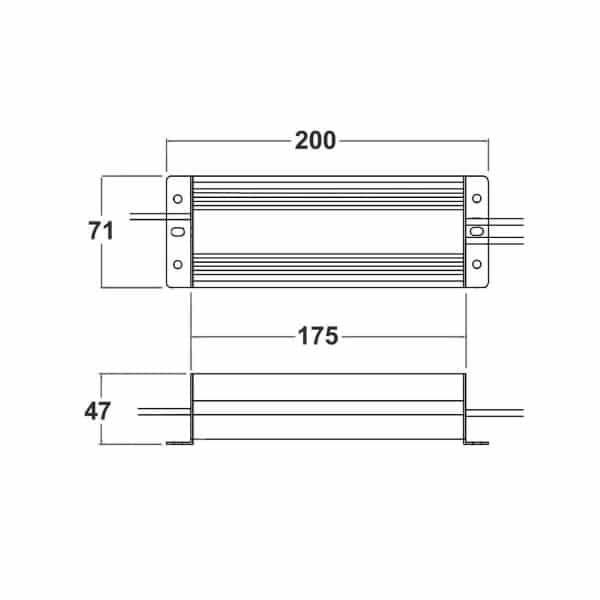

Dimensions200x71x47 mm230x71x47 mm256x80x53 mm

For further information please refer to the data sheet in the Download tab.

Properties "LED Power supply 60/100/150W 12V/24V controllable 0-10V"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Power range: 50 - 100 W, 100 - 250 W
·Constant Voltage: 12V, 24V
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Data sheet NG controllable 150W

800694_800695

Data sheet NG controllable 100W

800692_800693

Data sheet NG controllable 60W

800690_800691
