Linessa 2L - 1720x112

Product information "Linessa 2L - 1720x112"

Illuxtron Linessa 2L (1720x112)

Sustainability

Less is more. Or in Linessa's case: making technical innovation affordable through clever product design. The end result is a light panel that consists of only 7 parts and does not need any glue, screws or tape. Linessa has a very minimalist design. At the end of its life, it is very easy to disassemble the product or implement a new LED module. In this scenario, we minimize material waste and keep it as low as possible. Compare this to common fluorescent lamps, which often need to be replaced.

Bartenbach Darklight-Technology - UGR11

Normal diffuser plates spread the light in all directions and create a lot of glare. The Bartenbach Institute helped us develop special reflector shells that ensure all the light is reflected the way you need it. Less glare in a Büro means fewer mistakes, fewer headaches and more well-being for your employees.

Best in class Lux/Watt

The normal lux number for a Büro desk is about 500 lux. With Linessa series, this can be achieved with less energy. Compared to a normal diffuser LED panel of 25-40W, it saves 25-40%.

No multiple shadows

As soon as you try to focus light on an object with several reflectors, a disturbing multishadow effect occurs. If you use 10 times more reflector shells than normal, this effect disappears.

Bespoke Versions

The metal plate can be easily changed to different dimensions. It is even possible to integrate a sensor into the plate or air sleeves for ventilation.

Less Light Pressure

Existing LED reflector technology panels have low glare, but were uncomfortable to work under. By adding more reflector cups we managed to achieve the best comfort available in any LED panel on the market. The pressure from the LEDs is divided by an enormous amount of LEDs.

Features and benefits

- Application of Bartenbach's special Dark Light Technology with ultra-low UGR rating
- Ideal for office applications
- Extremely low wattage for necessary lux level

The most important technical details of the Linessa 2L series:
Housing colour matt white RAL 9016 (XX=MW)
Material Reflector cups: Chrome

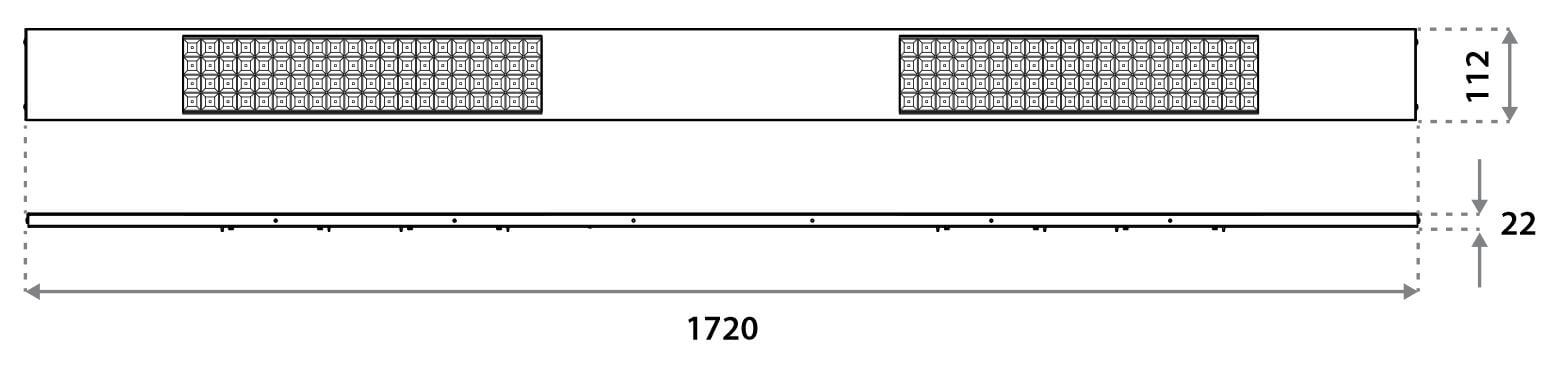

Dimensions 1720 x 112 mm
Usage Indoors
Colour Consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Colour temperature (Ta) -20°C / +45°C
Life time bei 25°C
L70B50 > 100.000 h
L80B50 > 100.000 h
L90B50 > 54.000 h
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A++

Linessa 2L

This panel is available in the size 1720 x 112 mm.
For further information about Linessa 2L please see the respective data sheet.
Dimmability Not dimmable
1-10V&Push, DALI (*Note)
DALI
Casambi (*Note)
Art. No. 3DC503CHXA02 3DC503CHSG02 3DC503CHXB02 3DC503CHSH02 3DC503CHSJ02
Colour temperature 3000 K 4000 K 2700 - 6500 K
UGR 13,8 14,9 14,0 15,1 14,0
Luminous flux 3300 lm 4550 lm 3450 lm 4750 lm 3450 lm
Lm/W (with EVG) 139 135 145 141 145
CRI 83
Type Inc. connection box
Input 220-240 V
Power 23,8 33,6 23,8 33,6 23,8
Protection class II I II I
Pf 0,95 0,9
*Note: This table shows only the switchable version (3000K and 4000K), and the DALI version (2700-6500K). This panel is also dimmable as DALI, Casambi and 1-10V&Push.

For data sheets of the Linessa 2L-series see Download Tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.
Properties "Linessa 2L - 1720x112"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 3000K, 4000K
·Dimmable/Control: 1..10V, Casambi radio, DALI
·Lamp shape: LED Grid Inlay
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Illuxtron datasheet

Linessa 2L 1720x112

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


FAQs rund um LED-Leuchten
Sammlung über häufig gestellte Fragen rund um LED-Leuchten (Nicht LED-Lampen)

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.

It is a challenging topic. A basic distinction can be made between these types of LED luminaires:
  • designer luminaires (the eye pays the price regardless of the technical design)
  • luminaires with replaceable LED light sources (less sustainable)
  • luminaires with permanently integrated LED boards and their own LED driver (most sustainable solution with the best efficiency and flexible options for dimming via DALI, 1-10V, etc.)
  • technical luminaires with special lighting tasks such as LED downlights.

Colloquially, they are often equated with each other. However, lighting experts make a clear distinction between lamps and luminaires.

This also applies to LEDs. A lamp is the typical light source (e.g. a light bulb) that is screwed into the socket of a luminaire. That already explains it. Luminaire is the system consisting of lamp, base, lampshade, etc. LED luminaires are available with a replaceable LED light source (lamp) and with a permanently installed LED module. The advantages and disadvantages can be found in another FAQ.
