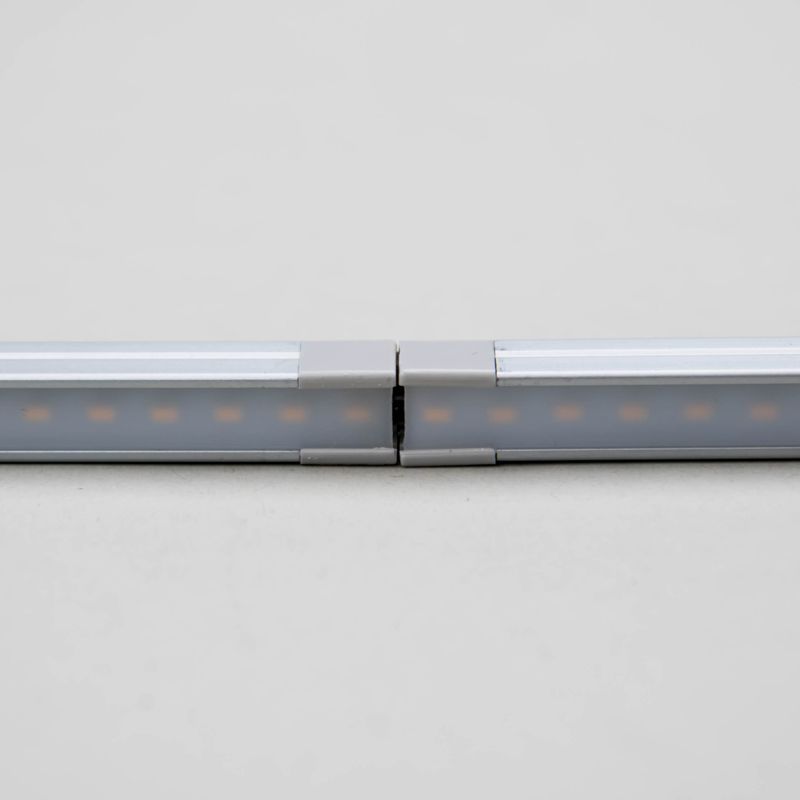

Preview: Connection between the light bars

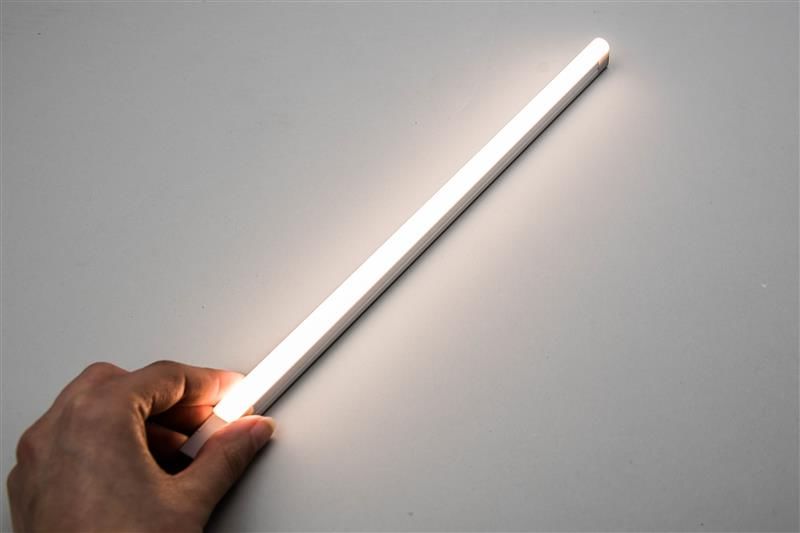

Magnetic LED light bar

(1)

Variants from 24.99€ * 28.26€ * (11.57% saved)
Net price: 21.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Order number: NAH-F-4-WW
Hersteller-Nr.: NAH-4WW7
Weight: 0.03 kg
Manufacturer: ALS GmbH

NAH Linear System for furniture installation NAH is a wall and ceiling-mounted luminaire with... more

Close menu

NAH Linear System for furniture installation

NAH is a wall and ceiling-mounted luminaire with protection class IP20 and protection class III. This magnetic LED light bar is made of anodized aluminum. The lamp has a plastic diffuser and is equipped with a cable input.
Metal clips and magnets are included. Connection cable, supply line, magnet holder and driver are not included. The maximum connection may not exceed 55W. This magnetic LED light bar has magnets that provide ideal adhesion on metal.

Data to magnetic LED light bar:

LED wall and ceiling lighting
Protection class: IP20
Protection class: III
Inc. metal clips and magnets
Without connection cable
Maximum connection 55W
Without 24V power supply
Without magnet holder
Without 2
Anodized aluminum
Plastic diffuser

Variation-specific data for NAH surface-mounted luminaire:

4000K version:

Product No.	NAH-NW-4-..	NAH-NW-8-..	NAH-NW-12-..
CRI	>80
W/VDC	4W / 24VDC	8W / 24VDC	12W / 24VDC
Luminous flux	391lm...403lm	751lm...780lm	1081lm...1114lm

3000K version:

Product No.	NAH-4-WW-..	NAH-8-WW-..	NAH-12-WW-..
CRI	>80
W/VDC	4W / 24VDC	8W / 24VDC	12W / 24VDC
Luminous flux	363lm...391lm	751lm...780lm	1069lm...1081lm

Link to NAH accessories

Link to 24V LED transformer
