PI-LED Flex TAPE with LMU

Variants from 100.76€ * 120.90€ * (16.66% saved)
Net price: 84.67€
Content: 0.28 Meter (359.86€ * / 1 Meter)

Prices incl. VAT plus shipping costs

Please select a variant first

Length/Brightness/Power:

Control:

Schutzart:


Meter

  • K-LTS-00280-16-TA20
  • LTS-00280-16-TA20
  • 0.2 kg
  • KITEO GmbH
Flexible LED-Stripe with PI-LED Technologie PI-LED-Flex Stripes have made it possible to... more

Flexible LED-Stripe with PI-LED Technologie

PI-LED-Flex Stripes have made it possible to combine the worldwide patented PI-LED technology on a tape. The PI-LED Flex Tape is thus suitable for a large number of applications that place the highest requirements on Human Centric Lighting.

In combination with the use of Phosphor Converted Red chips and the modular dimming control, the PI-LED Flex Tape can clearly stand out from commercially available standard tapes.

Highlights of the PI-LED Flex Tape

  • Award-winning PI-LED technology
  • Human Centric Lighting

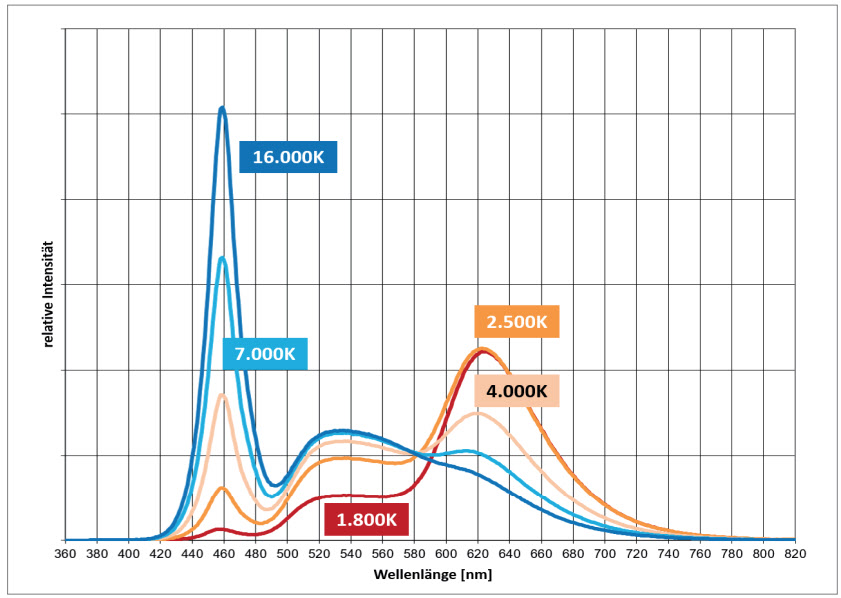

  • Colour temperature adjustable from 1,800 K to 16,000 K
  • Constant luminous flux over colour temperature
  • Dimmable brightness

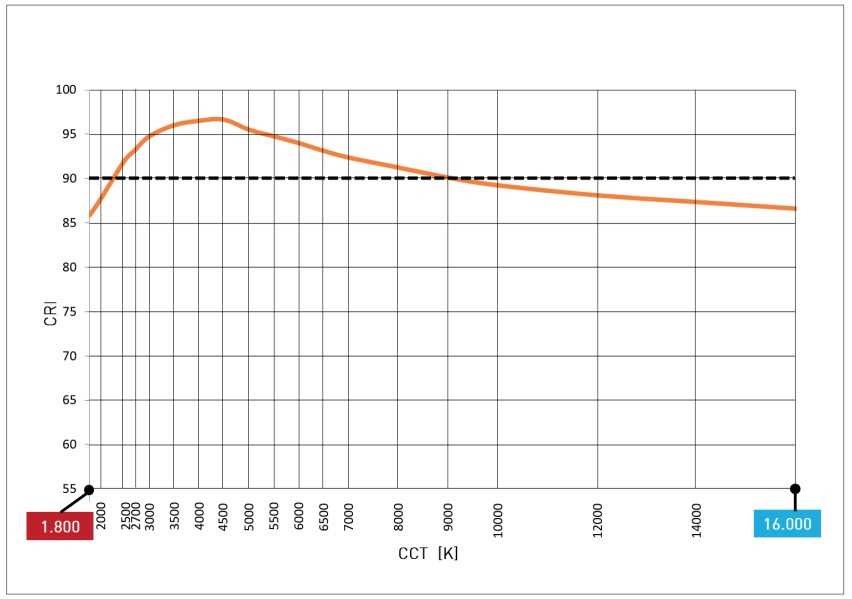

  • High colour rendition CRI >90
  • Very flexible
  • High efficiencies and thermal stability
  • Flexible powering and length setup possible
TECHNISCHE DATA
PI-LED Flex Tape
2 segments (min.) 16 segments (max.)
Luminous source LED Flex Tape with SMD assembly
Supply voltage 24V DC
Typ. power 2,2 W 17,6 W
Typ. luminous flux 300 lm 2.400 lm
Typ. efficiency per PI-LED system 136 lm / W 136 lm / W
Control mode ZigBee 3.0, DALI DT8
Dimmable 1% - 100%, Modular Dimming* / Camera Ready*

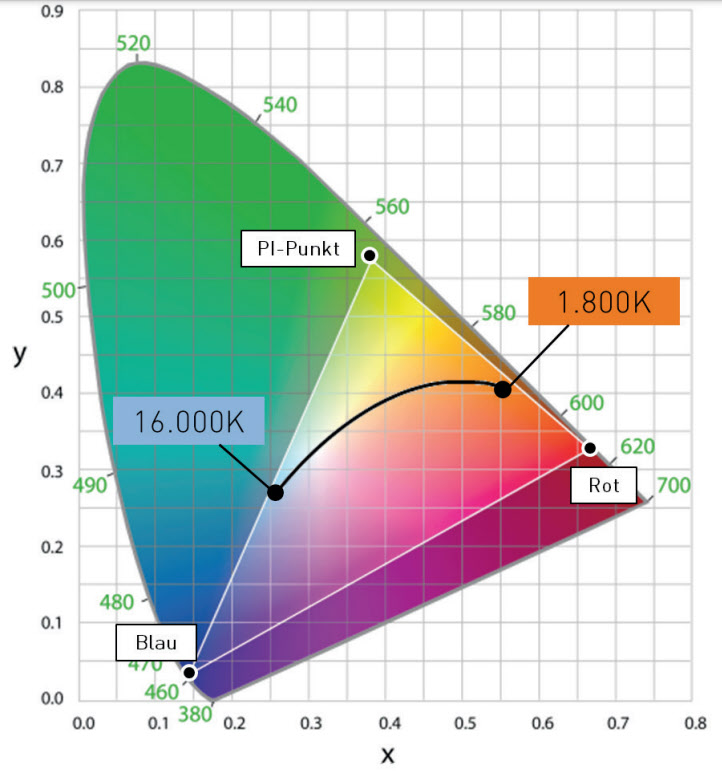

CCT and colour control 1.800 - 16.000K / adjustable CIE-xy-colours and RGB colours
Ambient / storage temperature +10°C … +45°C / -20°C ... +80°C
tc, max LED module / tc, max LMU +75°C / +85°C
Lifetime 50.000h L80B10
Additional features Low tolerance for colour temperature (max. MacAdam 2)

*According to IEEE 1789-2015 (valid for all dimming levels, CCT and colour Settings)

The PI-LED Flex elements are available in increments of 140mm.
Further details can be found in the data sheet in the download tab.

Every PI-LED TAPE system consists of:

  • 1 pc. PI-LED LMU
  • PI-LED TAPE in predefined length (according to ordered article number)
  • 1 pc. connection cable between PI-LED LMU and PI-LED TAPE
  • 24V DC driver (as accessory)

A PI-LED TAPE System must be operated only after complete configuration and cabling.
The length of the PI-LED TAPE per PI-LED LMU is given by the particular article number and the PI-LED LMU is programmed accordingly.
Cutting off segments of the PI-LED TAPE per PI-LED LMU subsequently is not permitted and can lead to damage or destruction of the PI-LED TAPE system!
Adding segments to the PI-LED TAPE per PI-LED LMU subsequently (e.g. by soldering on further PI-LED TAPE segments) is not permitted and can lead to
malfunction of the PI-LED TAPE System.

Note:
This products will be manufactured and calibrated individually according to your specifications.
This also explains the longer delivery time of 5-10 days depending on capacity utilization.

Related links to "PI-LED Flex TAPE with LMU"
Flexibles HCL-LED-Stripe with PI-LED-Technologie for special applications, eg. HCL more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Konstantspannung: 24V
Verwendung/IP-Code: IP20 - IP44 (indoor)
Lichtstrom lm/m: 501-1000 lm/m, 1001-2000 lm/m
Leistung/Meter: < 10W/m
Farbtemperatur/Lichtfarbe: HCL/PI-LED
Datesheet of PILED Tape
Datashee and overview table incl LMU-application
Read, write and discuss reviews... more
Customer evaluation for "PI-LED Flex TAPE with LMU"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

PI-LED LINE product picture PI-LED Stripe up to 25,6W DALI/ZigBee/Casambi...
Content 1
Variants from 185.64€ *
Order number: K-LINE-STD-DA-591

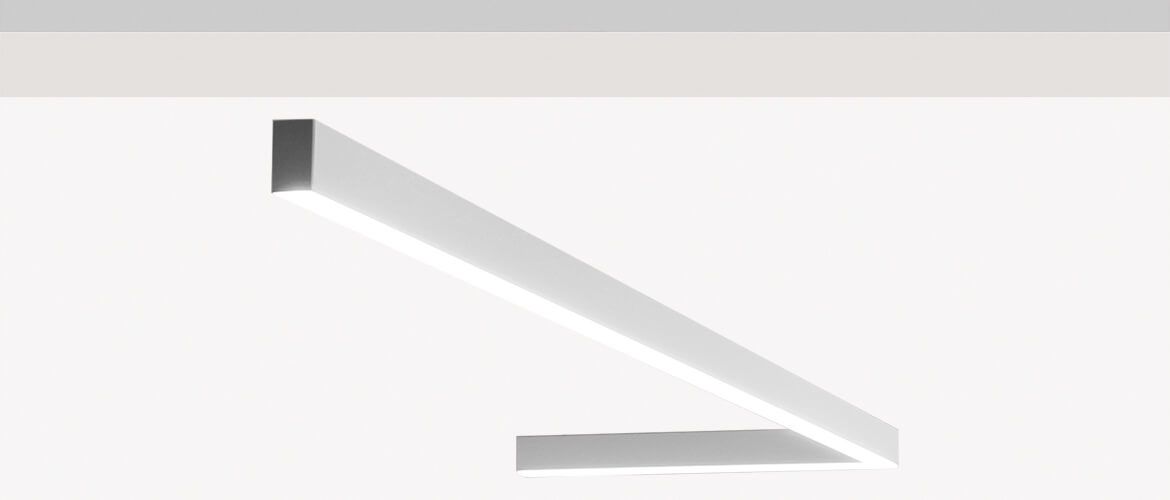

K-HORIZON product picture Universal luminaire K-HORIZON up to 80W...
