Illuxtron Quad 75 HV (High Voltage) Downlight

Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!

VersionPower rangeBeam angleSpecial feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology) This Version10,1-10,3 W40° / 80°directly connectable to 220-240V
HV-WD This Version11,2 W80°directly connectable to 220-240V, Powerfactor (>90)
LV (Low Voltage)13,8 W24° / 60° / 80°CRI-97 Standard, inklusive Treiber
LV-TW (Low Voltage- Tuneable White)11,4 W60° / 80°Tuneable White Technology

These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Quad 75 series provide perfect illumination of objects and rooms. The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

  • High luminous efficacy thanks to the very good reflectivity of micro-facet technology
  • Low glare values (UGR index) by avoiding unnecessary stray light
  • Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.

The most important technical details of the Quad 75 series:

Housing colour

matt white RAL 9016 (XX=MW)
matt black RAL 9005 (XX=BL)
matt grey RAL 9006 (XX=GR)

MaterialHousing: Die-cast aluminium
Reflector glass: Polycarbonate

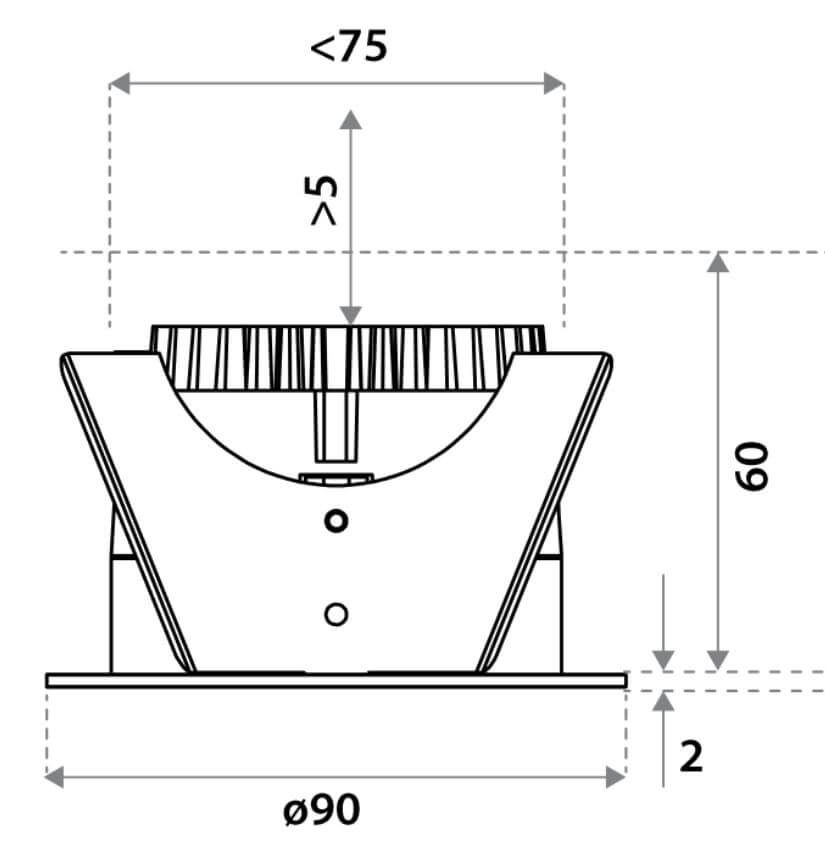

Dimensionsø 90 mm
Required installation depth> 65 mm
Ceiling cut-out

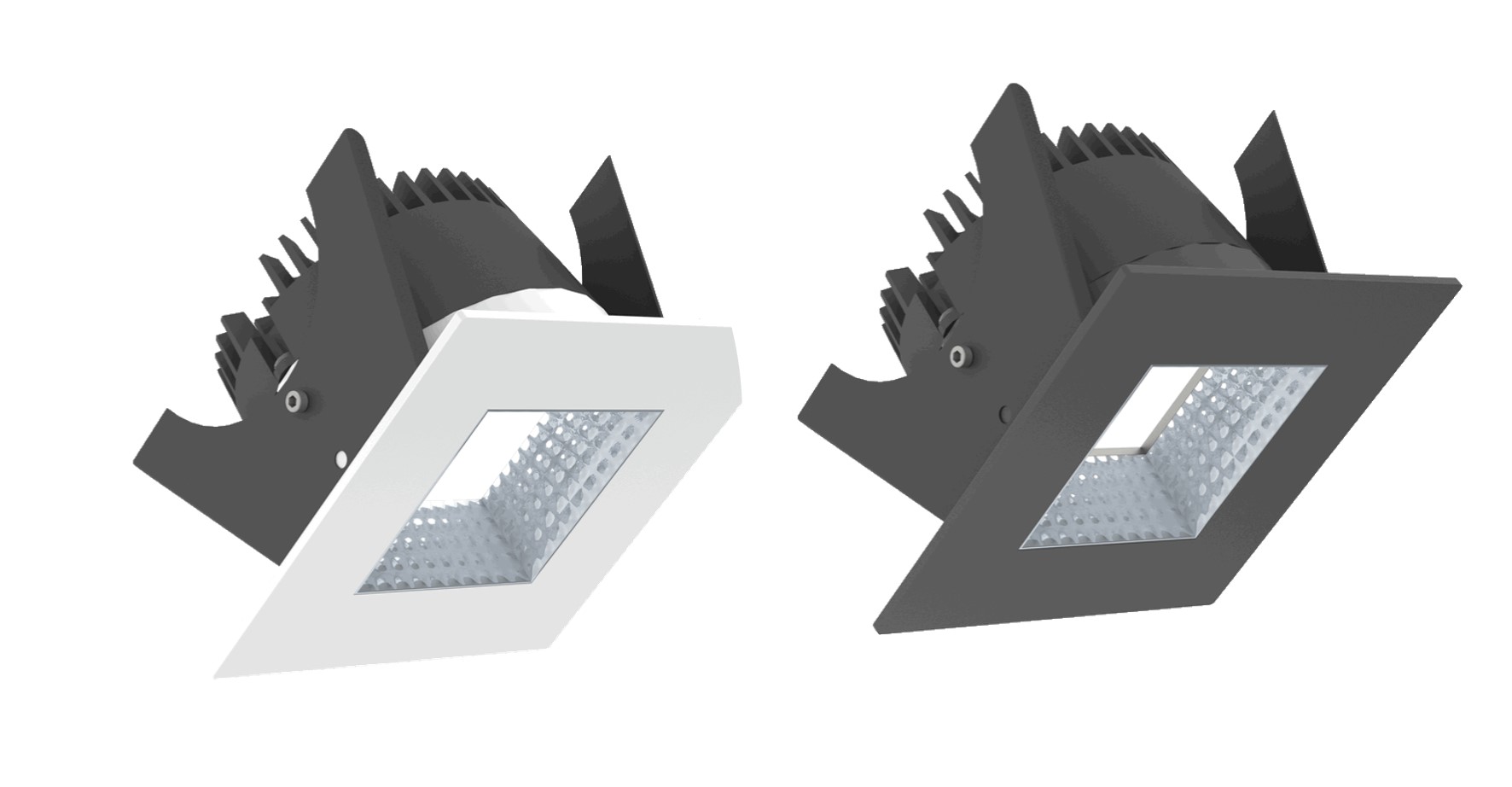

75 mm: Usage of ceiling springs.

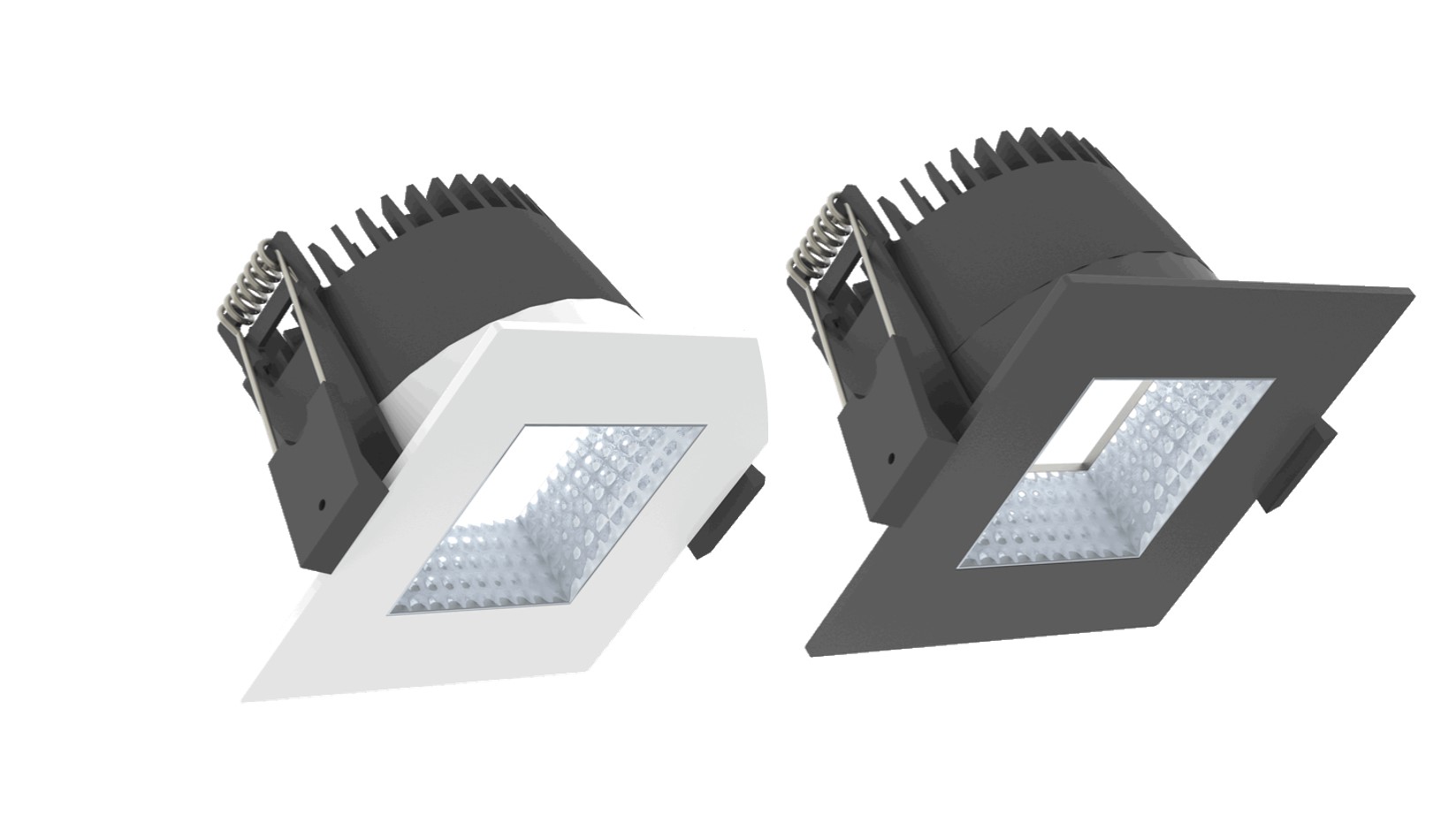

77 mm: Usage of wire springs.

UsageIndoors
Colour Consistency (MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK03
Operating temperature (Ta)-20°C / +45°C
Lifetimeat 25°C
L70B50> 70.000 h
L80B50> 69.000 h
L90B50> 36.000 h
Safety signsEN60598 / EN62031 / EN62471
EMV-DirectiveEN55015
Guarantee7 years
Energy classA


Quad 75 High voltage flicker-free dimming technology (HV-FD)

Flicker-free - no stroboscopic effect

Studies associate flickering light with health problems. Although flickering at this frequency is not visible without aids, there is evidence that the human brain can perceive flickering up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.

Flicker-free - Patented dimming up to 0.1%.

The level of dimming depends on the quality of the dimmer. With a high quality dimmer a dimming range of 0.1-100% can be covered. Even at the lowest dimming level, this technology always stays below 2.4% flicker.

Perfect for video recording

Flicker effects should be taken into account when recording video, otherwise the images will be traversed by several black lines, which makes reasonable filming impossible.

For further information on Quad 75 HV-FD downlights, please refer to the respective data sheet.

This version is available in different mounting types and without connection cable.

Quad 75 HV-FD

Dimmability

Triac

Art.No.935A03XX5B02935A03XX5D02935A03XX5F02935A03XX5H02
Colour temperature2700 K3000 K4000 K2200 - 3000 K
UGR24,5
Luminous flux800 lm (2700 u. 3000 K)600 lm
Lm/W (with EVG)57585958
TypeIncl. Connection cable
Input220-240 V
Power10,5 W10,3 W10,1 W10,3 W
Protection classI
Pf0,99

*Note: This table shows only the version with a beam angle of 80° and concrete spring mounting. This downlight is also available with a beam angle of 40°, as well as with different mounting options.


Quad 75 HV-WD

This version is available in different mounting types. A connection cable is required.

Further information about the additional connection cable.

Further information on Quad 75 HV-WD downlights can be found in the respective data sheet.

Quad 75 HV-WD

Dimmability

Triac

Art.No.935A03XXBY77
Colour temperature2200 - 3000 K
UGR23,5
Luminous flux900 lm
Lm/W (withEVG)80
TypeIncl. Connection box
Input220-240 V
Power11,2 W
Protection classI
Pf0,99

*Note: This downlight is also available with different mounting options.
