Illuxtron Strada 75 HV-FD (High voltage- Flimmerfree Dimmtechnology) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
|Version||Power range||Beam angle||Special feature|
|HV-FD (High voltage- Flimmerfree Dimmtechnology) This Version||10,1-10,5 W||40° / 80°||directly connectable to 220-240V|
|LV (Low Voltage)||5,0 - 13,8 W||24° / 60° / 80°||CRI-97 standard, driver included|
|LV-TW (Low Voltage - Tuneable White)||11,4 W||60° / 80°||Tuneable White Technology|
These recessed spotlights are available in 2200-3000K, 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Strada 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good color rendering
Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.
This downlight is also available in HV and LV downlight versions.
The most important technical details of the Strada 75 series:

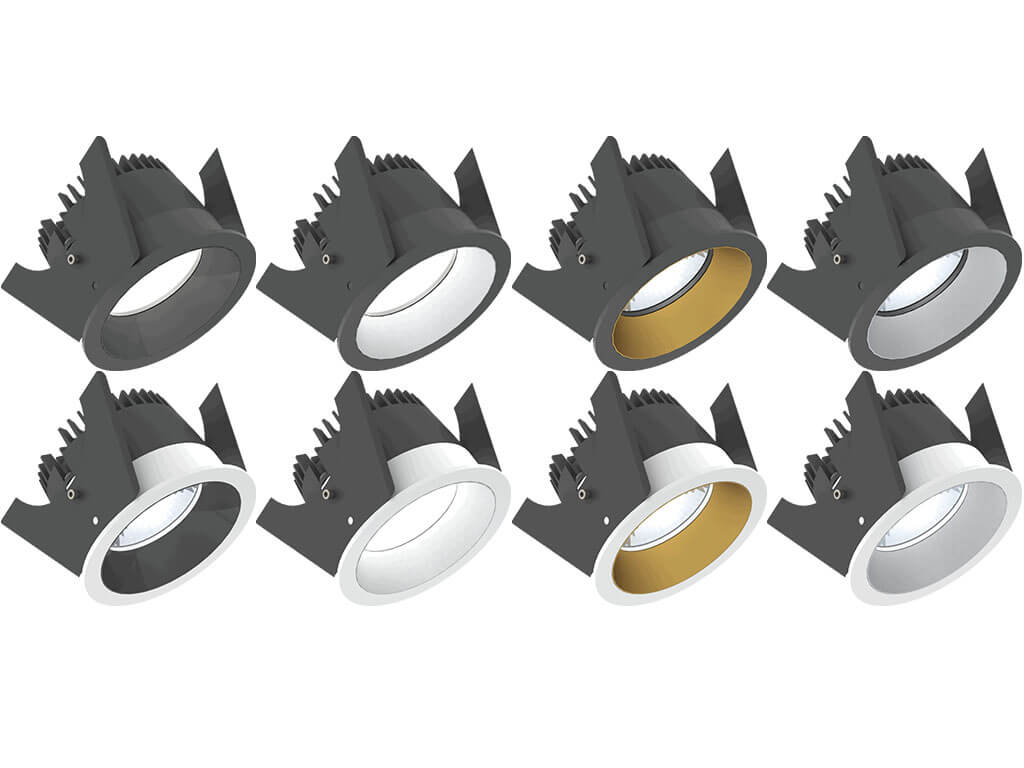

|Housing colour / reflector ring||matt white RAL9016 / Gold (XX=61) |
matt white RAL9016 / Silver (XX=63)
matt white RAL9016 / White (XX=64)
matt white RAL9016 / Black (XX=62)
matt black RAL9005 / Gold (XX=71)
matt black RAL9005 / Silver (XX=74)
matt black RAL9005 / White (XX=75)
matt black RAL9005 / Black (XX=72)
|Material||Housing: Die-cast aluminium |
Reflector glass: Polycarbonate
|Dimensions||ø 81 mm|
|Required installation depth||> 65 mm|
|Ceiling cut-out|| |
75 mm: Use of concrete springs.
|Colour Consistency (MacAdam)||SDCM3|
|IP Code||IP20 / IP44|
|Operating temperature (Ta)||-20°C / +45°C|
|Life time||at 25°C|
|L70B50||> 70.000 h|
|L80B50||> 70.000 h|
|L90B50||> 37.000 h|
|Safety signs||EN60598 / EN62031 / EN62471|
Strada 75 High voltage flicker-free dimming technology (HV-FD)
Flicker-free - no stroboscopic effect
Studies associate flickering light with health problems. Although flickering at this frequency is not visible without aids, there is evidence that the human brain can perceive flickering up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.
Flicker-free - Patented dimming up to 0.1%
The level of dimming depends on the quality of the dimmer. With a high quality dimmer a dimming range of 0.1-100% can be covered. Even at the lowest dimming level, this technology always stays below 2.4% flicker.
Perfect for video recording
Flicker effects should be taken into account when recording video, otherwise the images will be traversed by several black lines, which makes reasonable filming impossible.
For further information about Strada 75 HV-FD Downlights please refer to the respective data sheet.
This version is available in different mounting types and without connection cable.
Strada 75 HV-FD
|Colour temperature||2700 K||3000 K||4000 K||2200 - 3000 K|
|Luminous flux||600 lm|
|Lm/W (with EVG)||57||58||59||58|
|Type||Inc. Connection cable|
|Power||10,5 W||10,3 W||10,1 W||10,3 W|
*Note: This table shows only the version with a beam angle of 80° and concrete spring mounting. This downlight is also available with a beam angle of 40°, as well as with different mounting options.
For data sheets of the downlights Strada 75 series, see download tab:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilisation.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Color Temperature/Color:||2700K, 3000K, 4000K|
|Lamp shape:||Recessed ceiling|
