Synchronization cable for Meanwell

Product information "Synchronization cable for Meanwell"

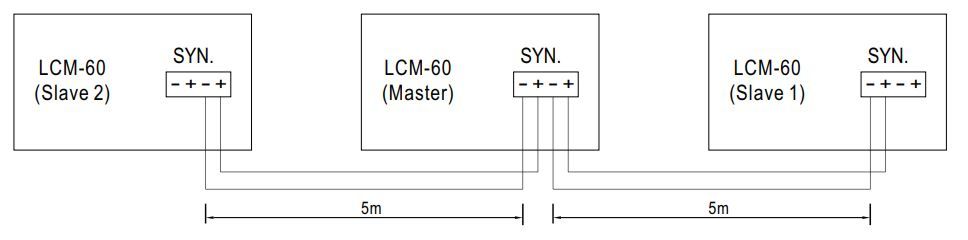

LCM driver synchronization cable

  • Synchronization of up to 10 drivers
  • Dimming range: 1% - 100%
  • Cable length: 20cm
  • Cable cross-sectional area: 22 - 24AWG (0,2~0,3mm²)
  • Cable ends: tinned
  • ZBetween the power supplies an electrician can extend the cable with a clamp or by soldering up to 20m
  • Connector assembly is removed
  • At all times two of the cables are needed.

Properties "Synchronization cable for Meanwell"
·Meanwell Series: LCM
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry
