ATRIUM RONQ LED downlight 35W ZigBee/DALI DT8/Casambi

Variants from 486.71€ *
Net price: 409.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first



Protection level:


  • ATRO-NL-S-40
  • AR-SNLAIP54-03
  • 1.4 kg
  • KITEO GmbH
PI-LED downlight ATRIUM RONQ 35W - dimming via DALI DT8 or NeoLink / ZigBee, up to IP54 This... more

PI-LED downlight ATRIUM RONQ 35W - dimming via DALI DT8 or NeoLink / ZigBee, up to IP54

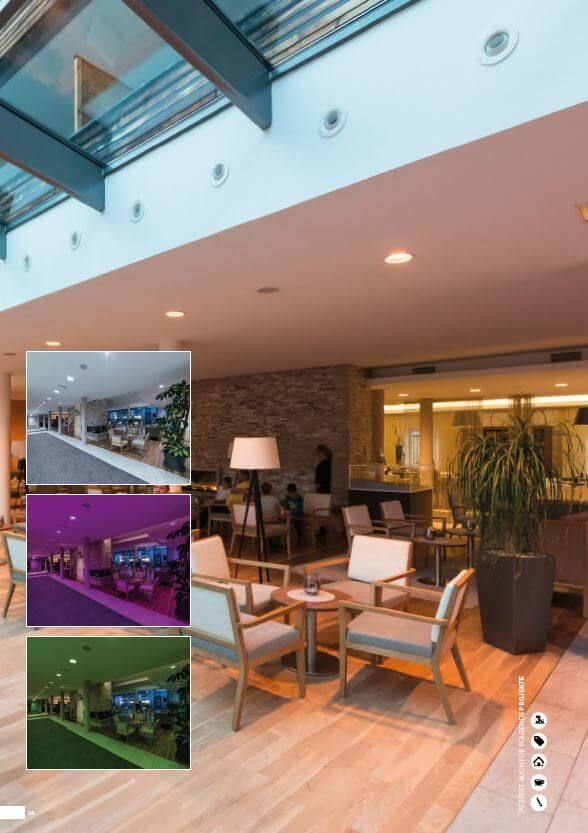

This round recessed luminaire has PI-LED technology, which combines Tuneable White and RGB in one light source. This means that ATRIUM RONQ can cover a wide color temperature range from 1800 K to 16000 K and thus precisely reproduce the course of daylight. This is supported by the uniform light distribution that emanates from the luminaire. In addition, the LED downlight is very robust, which can be attributed to a high degree of protection up to IP54.

Another highlight are the innovative control options of the ATRIUM RONQ:

Product overview and features:

  • Round downlight with automatic daylight sequence
  • Matt reflector with diffuser
  • Soft light mixture and even light distribution
  • Range of functions: Color temperature 1,800 K to 16,000 K
  • High color locus stability thanks to microcontroller-controlled LED management
    • Temperature compensation
    • Factory calibration

Ordering data for ATRIUM RONQ:

The product is available in three different installation sizes. There is also the option of choosing between the ultra-modern control options DALI DT8, Casambi and ZigBee. Depending on the application (indoor / outdoor), versions with degrees of protection IP40 and IP54 are available.

Technical data:

Design Small (Ø 154 mm) Middle (Ø 204 mm) Large (Ø 254 mm)
light source LED module (PI-LED)
Operating voltage 230 VAC
Performance 20 W 25 W 35 W
Beam angle 75 ° 82 ° 80 °
luminous flux 1200 lm 2000 lm 2500 lm
Color temperature 1800 K - 16000 K
Color rendering index (CRI) > 90
Control NeoLink / ZigBee
Dimming range CCT / CIE-xy 5-100%
RGB 0-100%
Degree of protection IP40 or IP54
Protection class SKII
Lifetime L80 / B10 50000 h
Housing color white (RAL 9003)
Assembly installation

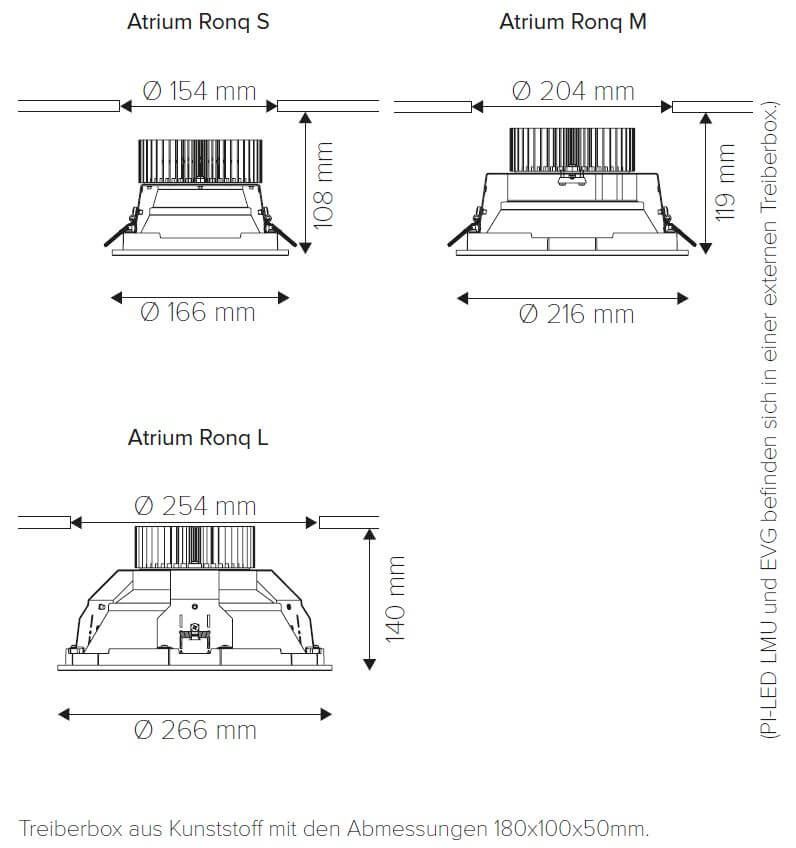

Dimensions Ø 154 mm x 97 mm  Ø 215 mm x 107 mm  Ø 265 mm x 127 mm

The products of the manufacturer Kiteo are individually tailored to suit your needs. Made especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For more information, please refer to the data sheet in the download tab.

Related links to "ATRIUM RONQ LED downlight 35W ZigBee/DALI DT8/Casambi"
ATRIUM RONQ ist eine robuste Einbauleuchte mit automatischem Tageslichtverlauf (PI-LED) bis 35W... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
·Hole diameter: 160mm, 200mm, 254mm
·Color Temperature/Color: 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White
·Application/IP-Code: IP4x, IP5x, IP20 - IP44 (Indoor)
·Power range: 20 - 50 W
·Lamp shape: Recessed ceiling
·Dimmable/Control: Casambi radio, DALI, DALI DT8, Zigbee
Data sheet ATRIUM RONQ
DALI/ZigBee dimmable LED downlight
Eulumdat (Zip) all Atrium Ronq
