K-MOTUS-DALI/ZigBee/Casambi dimming built-in lighting 13,3W

Variants from 320.11€ *
Net price: 269.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Housing:

Control:

Surface:


Stck

  • K-MO-R-NL-W
  • K-MO-R-42-NZ-W
  • 0.4 kg
  • KITEO GmbH
Compact recessed luminaire K-MOTUS 13.3W - ZigBee / DALI / Casambi dimmable With K-MOTUS... more

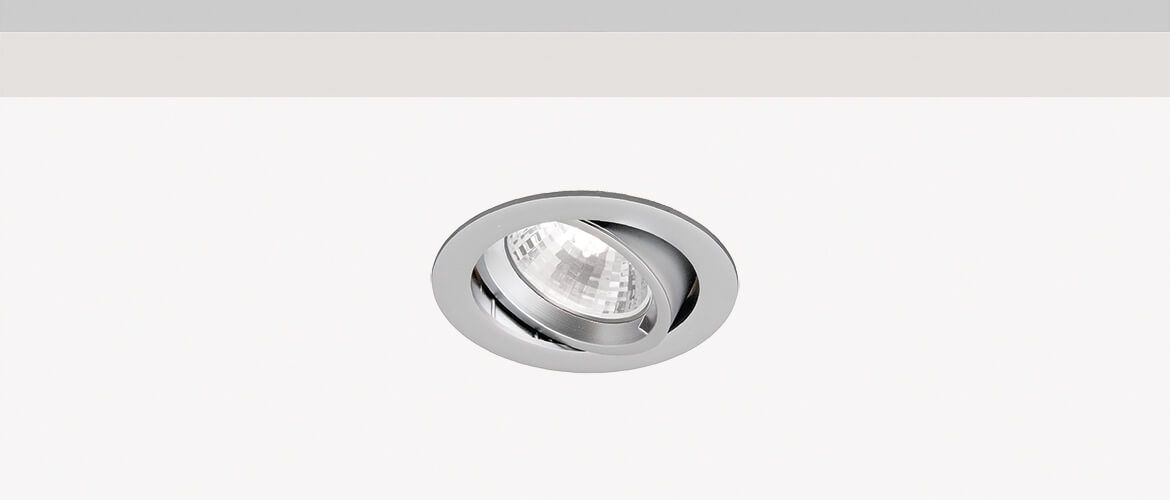

Compact recessed luminaire K-MOTUS 13.3W - ZigBee / DALI / Casambi dimmable

With K-MOTUS you get a simple, universally usable recessed luminaire, which brings with it a uniform light distribution. In addition, there is a soft mix of light, which means that a wide variety of LED lighting systems can be ideally presented. The 50 ° beam angle and the swiveling ability of the LED module underline its flexibility and at the same time ensure very good lighting. The compact design is particularly advantageous during assembly, since only a small installation depth is required.

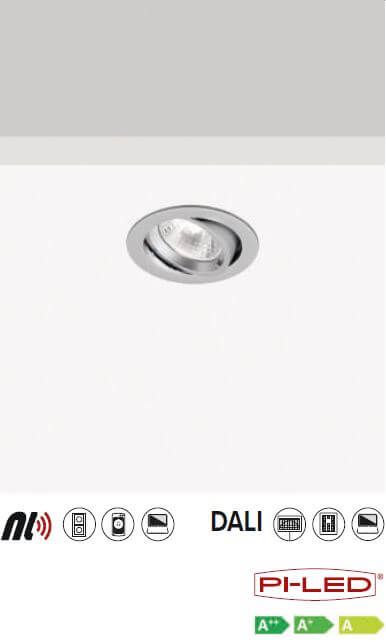

Another highlight are the innovative control options of the K-MOTUS:

  • Smart lighting control with NeoLink / ZigBee
  • Control of complex lighting systems with DALI DT
  • Control via Casambi

Product overview and Features:

  • Can be swiveled by 35 °
  • Range of functions: Color temperature 1,800 K to 16,000 K
  • High color location stability thanks to microcontroller-controlled LED management with temperature compensation and factory calibration

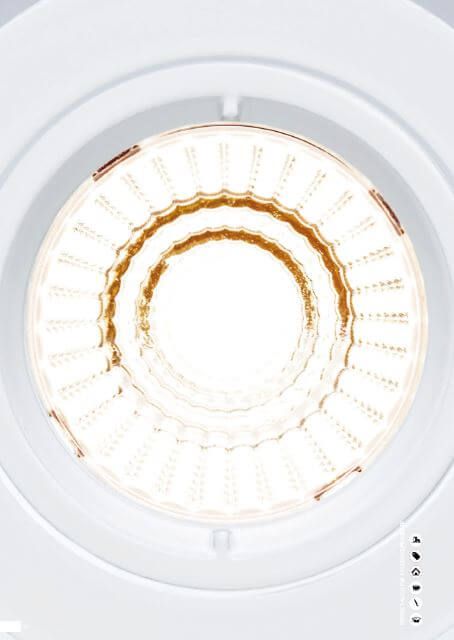

  • Uniform light distribution and soft light mix
  • Trapezoidal leaf springs and bayonet lock
  • Compact design with low installation depth

Ordering data for K-MOTUS:

The product is depending on

  • Control (DALI or ZigBee or Casambi)
  • Design (round or square) and
  • Surface (white or matt Chrome)

Available in different versions, with all built-in lights having integrated PI LEDs.

Technical data:

Light source LED-Modul (PI-LED)
Operating voltage 230 VAC
Power 13,3 W
Beam angle 50°
Luminous flux 670 lm
Color temperature 1800 K - 16000 K
Color Rendering index (CRI) > 90
Control NeoLink / ZigBee
DALI DT8
Casambi
Dimming range CCT/CIE-xy 5-100%
RGB 0-100%
Protection class IP20
Protection class SKII
Lifespan L80/B10 50000 h

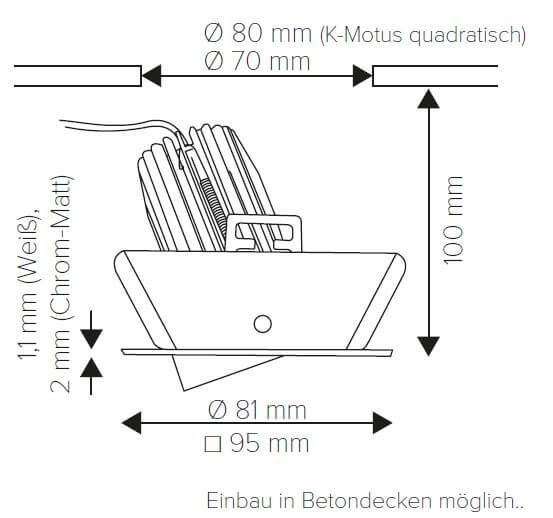

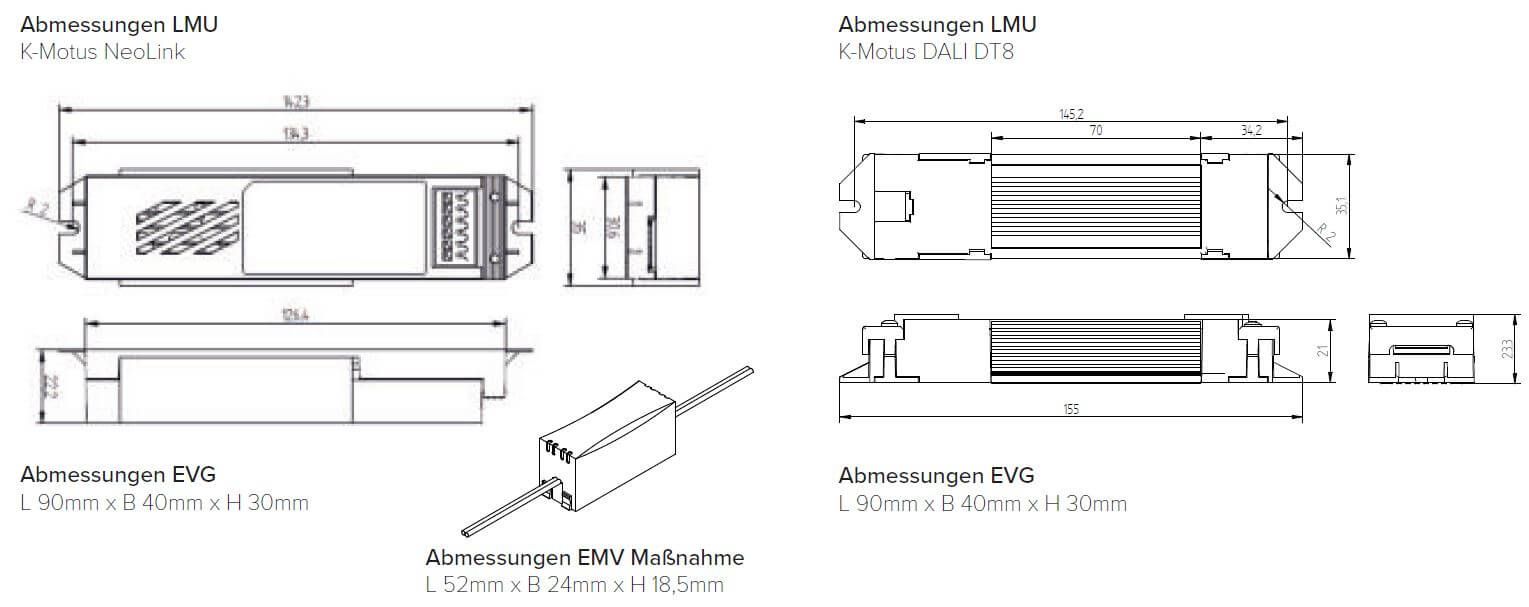

Dimensions (EVG) 90 x 40 x 30 mm (L*W*H)

Note:
The products of the manufacturer Kiteo are individually manufactured especially for you according to your specification. This also explains the longer delivery time of 1-3 weeks depending on the workload.

For more information, please refer to the data sheet in the download tab.

Related links to "K-MOTUS-DALI/ZigBee/Casambi dimming built-in lighting 13,3W"
Kompakte LED-Einbauleuchte K-MOTUS 13,3W 230V für 1800K-16000K, Dimmen via ZigBee oder DALI DT8,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Verwendung/IP-Code: IP20 - IP44 (indoor)
Deckenausschnitt: 80mm
Dimmbarkeit/Steuerung: Casambi-Funk, DALI, DALI DT8, Zigbee
Farbtemperatur/Lichtfarbe: 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White
Bauform/Montage: Deckeneinbau
Leistungsbereich: 5 - 20 W
Data Sheet K-MOTUS
Built-in lighting round/square
Eulumdat (Zip) all K-Motus Fix White
