Aviora Line SM

Variants from 233.24€ *
Net price: 196.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first


Colour temperature:

Housing colour:


  • 4055-3SDH03BLG202
  • 3SDH03BLG202
  • 0.03 kg
  • 8716197049631
  • Illuxtron International BV
Aviora Line-SM (LED profile surface mounted light) This version (Aviora Line-SM) is directly... more

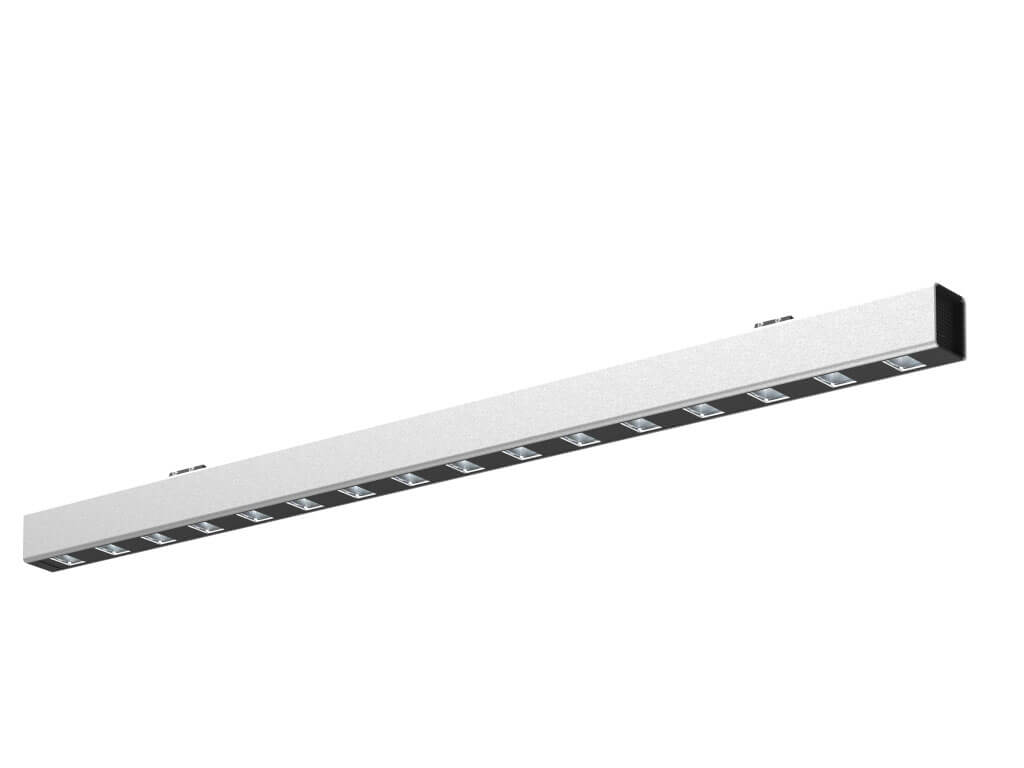

Aviora Line-SM (LED profile surface mounted light)

This version (Aviora Line-SM) is directly attached to a surface. The Aviora Line-P (pendant light) profiles, which also allow indirect lighting, can be found here.

Modern design with revolutionary optics
Illuxtron's Aviora Line-SM LED profiles are designed for direct indoor lighting. Several LED boards are arranged evenly over the entire housing and thus offer a contemporary design.

Despite the small dimensions of only 1062 x 39 x 50 mm, a high-quality power supply unit is integrated, which can be connected with the easy-to-use Plug & Play connectors (GST18).

Features and advantages of the Illuxtron LED Profile Aviora Line-SM

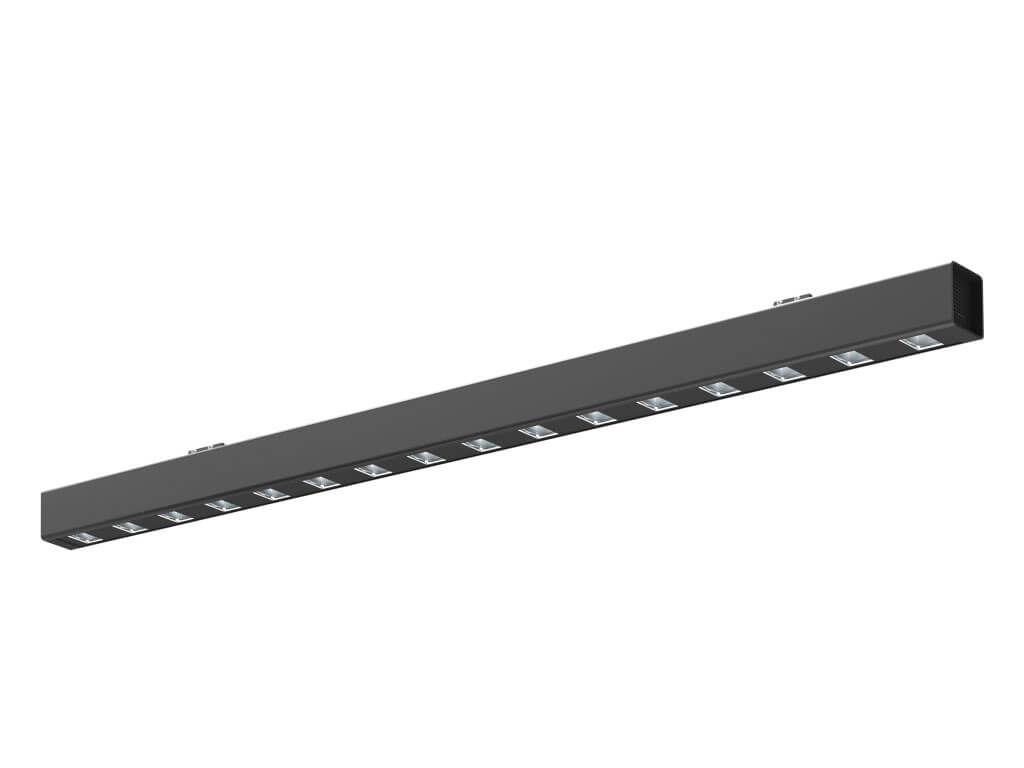

Casing color matt black RAL 9005 (XX = BL)
matt white RAL 9016 (XX = MW)
Material housing: aluminium
  reflector glass: polycarbonate

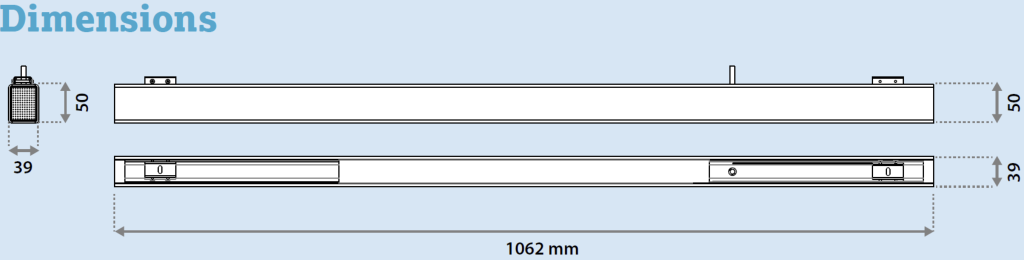

Dimensions 1062 mm x 39 mm
Height 50 mm
Application Inside area
Beam angle (FWHM/FWTM) Standard 85°/100°
UGR (4H8H 70/50/20) < 19
Colour consistency (MacAdam) SDCM3
IP Code IP20
IK Code IK03
Operating temperature (Ta) -20°C / +45°C
Lifetime at 25° C
L70B50 134.000 hrs.
L80B50 82.000 hrs.
L90B50 37.000 hrs.
Safety sign EN60598 / EN62031 / EN62471
EMV Directive EN55015
Guarantee 7 years

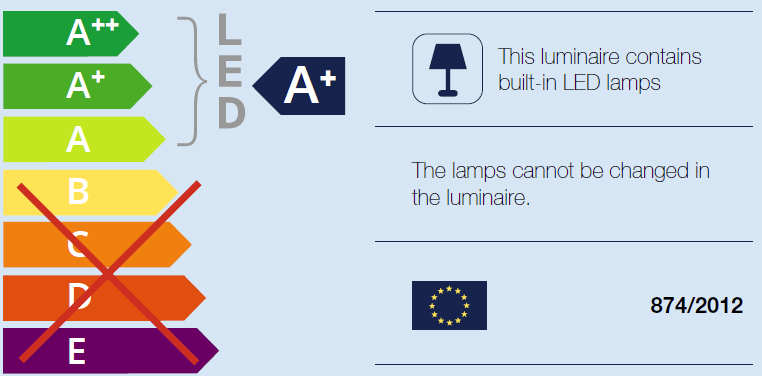

Energy class A+

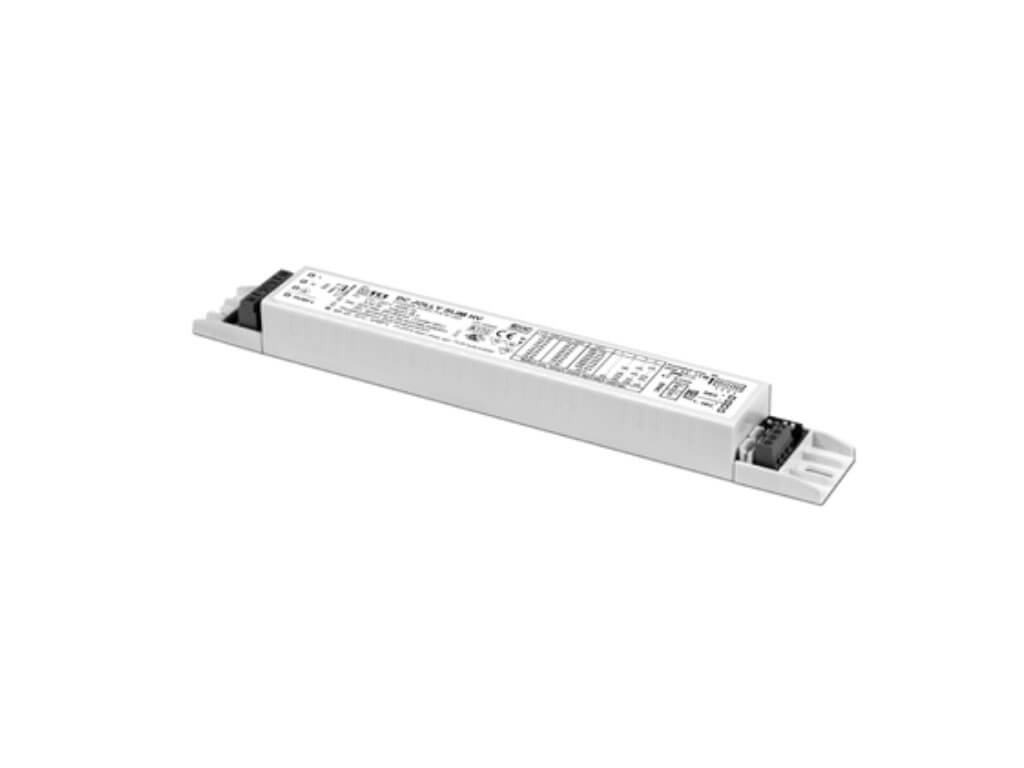

Type incl. LED driver
Input 220V - 240V/50Hz
Protection class I
Ripple < 3%
inrush current 5A 50µS


Aviora Line-SM available in 12 versions

All Aviora Line SM LED profiles are available with either 3000K or 4000K, as well as various housing Colours, lumen packages and ballasts included in the set as required (dimmable via DALI, 1-10V&Push or only switchable)
Overview of the available Aviora Line-SM with the article numbers.

Colour temperature 3000K 4000K
Luminous flux 3750 lm 3950 lm
Performance 34,1 W
Luminous efficacy (with ECG) 110 Lm/W 116 Lm/W
article numbers Switchable 3SDH03XXF202 3SDH03XXF302
1-10V & Push 3SDH03XXG202 3SDH03XXG302

For further information on the Aviora Line SM series please refer to the data sheet in the download tab.

The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
