CBU-A2D Casambi module 2ch

Variants from 80.75€ *
Net price: 67.86€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:

Casambi bluetooth control unit CBU-A2D - Control two devices with 0-10V or DALI via Bluetooth... more

Casambi bluetooth control unit CBU-A2D - Control two devices with 0-10V or DALI via Bluetooth

Features of the Casambi CBU A2D

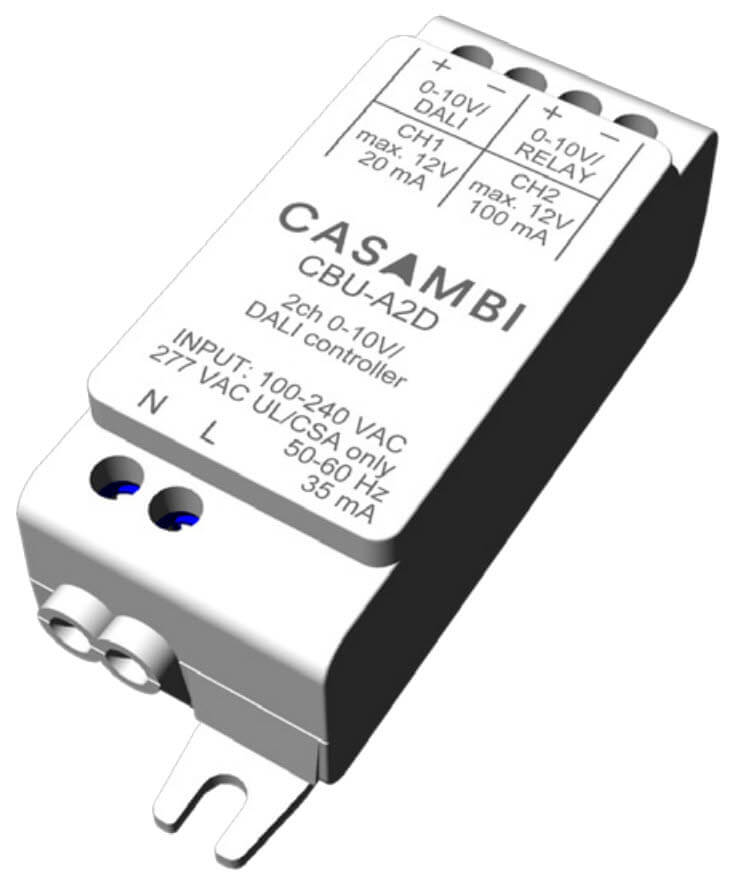

The CBU-A2D is a casambi bluetooth control unit with 2-channel 0-10V / DALI . The module is operated over a universal input voltage range of 100-277 VAC.

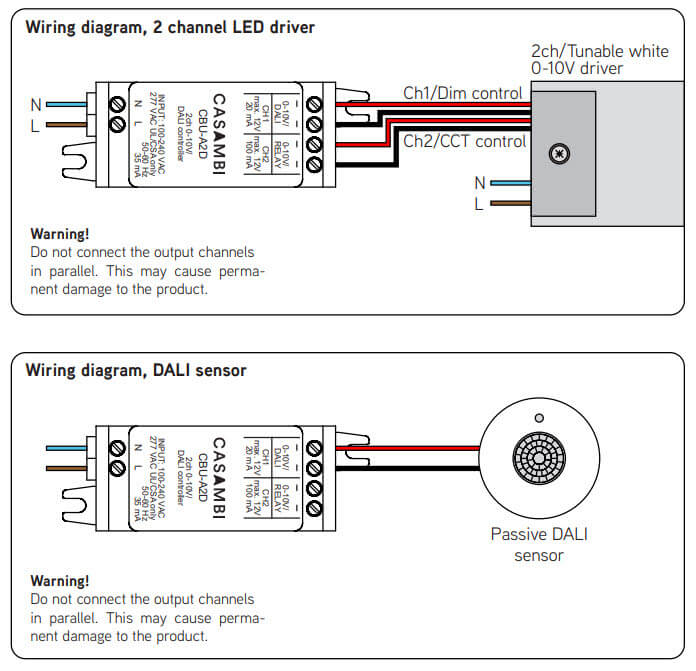

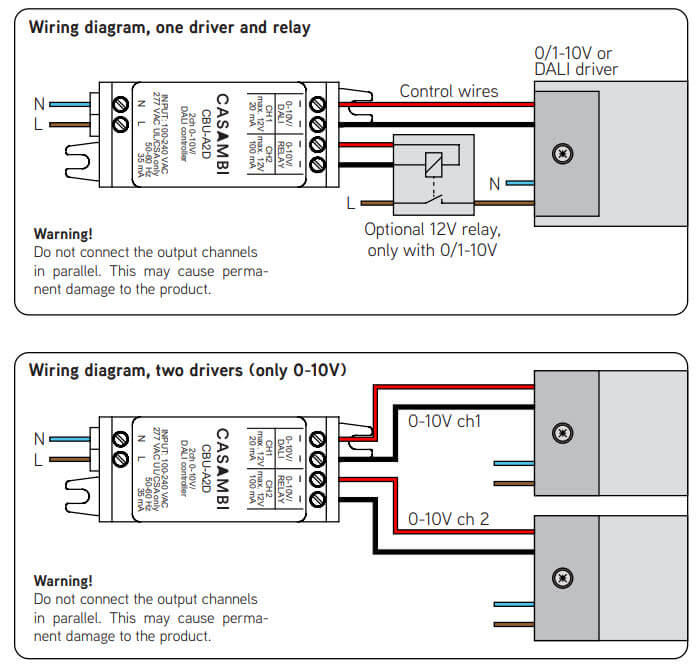

The CBU-A2D enables the control of two LED drivers with 0-10V or DALI input. Alternatively, the tuneable white control with two independent LED drivers for warm white / cold white is also possible.

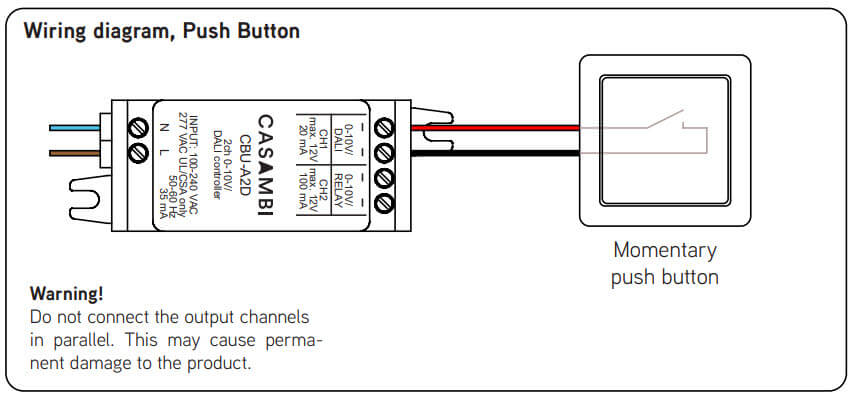

The product can also be configured as a DALI push-button interface, where it can be connected for presence and / or daylight use functions.

The CBU-A2D can be controlled and configured using the Casambi app.

Various Casambi-capable products can be used, from a simple direct control of a luminaire to a complete and full lighting control system, in which up to 250 units automatically form an intelligent mesh network.

Technical facts about the Casambi A2D

Voltage range 100-240 (CE/UL/CSA)
277 VAC (only UL/CSA)
Frequency 50-60 Hz
Max. main current 35 mA
No-load standby power <0,5 W
Channel 1 output Output voltage, 0-10V, 0-10 VDC, max. 7 mA (sinking)
Output voltage, DALI 12 VDC
max. 20 mA (sourcing)
Maximum number of drivers: 1
Channel 2 output Output voltage, 0-10V: 0-10 VDC, max
7mA (sinking)
Output voltage, relay control: 12 VDC,
max. 100 mA (sourcing)
Maximum number of drivers: 1

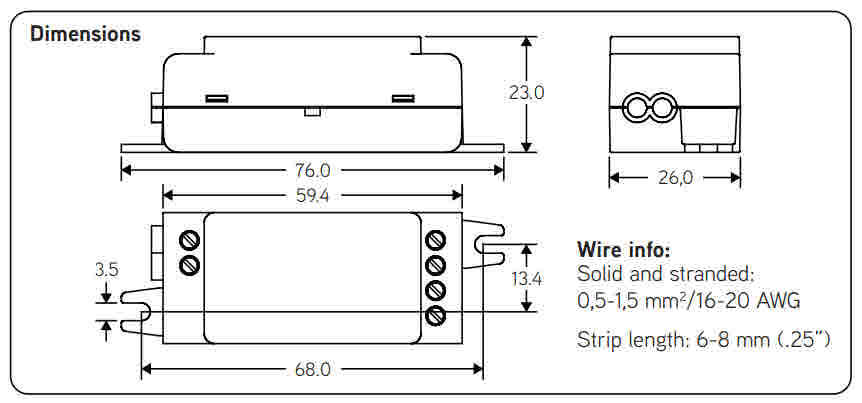

Dimensions 76,0 x 26,0 x 23,0 mm
3.0 x 1.0 x 0.9 Zoll
Protection IP20
Built-in class II
Related links to "CBU-A2D Casambi module 2ch"
Casambi module with 2 outputs for DALI or 1-10V or switching relays. Alternatively push button... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: 1..10V, BT4.0 (2,4 GHz), Casambi radio, DALI, Push-Button
Color Temperature/Color: Tuneable White
Casambi CBU-A2D (pdf)
Datasheet for the universal Casambi A2D
