This product is currently not available.

ELI Downlight 10W

Variants from 98.18€ *
Net price: 82.50€

Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Order number: 4824-SW-1-R
Hersteller-Nr.: ELIR-10SW1
Weight: 0.305 kg
Manufacturer: ALS GmbH

LED Recessed downlight The LED recessed downlight ELI with 10 W from ALS is available in 2700... more

Close menu

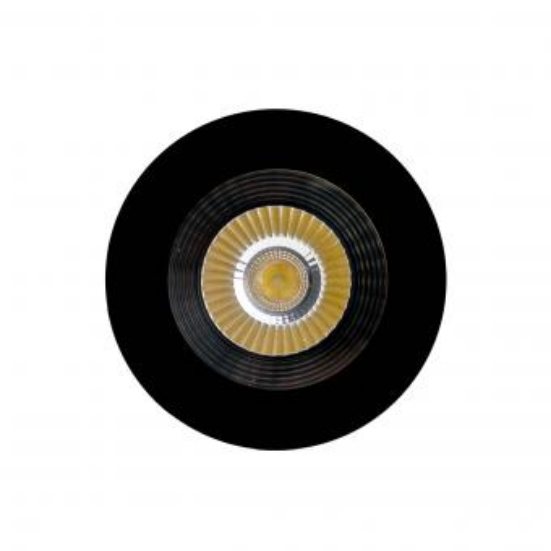

LED Recessed downlight

The LED recessed downlight ELI with 10 W from ALS is available in 2700 or 3000K for a 75mm ceiling cutout.
The lamp is equipped with a 2-pole cable for a 350mA connection with an external ballast (not included).

Technical characteristics of the ELI recessed downlight:

Case made of aluminum
Available in round and square
High-quality decor design cover (clear glass, white or black)
Powerful heat sink made of aluminum, black
Faceted high-performance reflector, set back, rigid
Expanding spring attachment
High power LED module
Degree of protection: IP20
Protection class: II

Technical specifications:

	COB LED*
Color temperature	2700K	3000K
Luminous flux	773 lm	786 lm
Beam angle	40°
System performance	10 W
Operating current	350 mA
Color rendering-index	CRI > 80
Energy efficiency:	A++ - A

design	round	square
Outer diameter	85 mm
Wall and ceiling cutout	75 mm	80 mm
Dimensions	H=82 mm	L=90B=90H=82 mm

*COB - LED stands for Chip-On-Board-LED. Many LED chips together make up an LED area. In connection with a reflector it perfectly imitates the well-known halogen spots e.g. MR16

For more information, please refer to the data sheet in the download tab.

Related links to "ELI Downlight 10W"

LED recessed downlights "ELI" with 10 W from ALS. Available in two colors, round... more

Close menu

Features/tags of this product family. Please refer about the details in the description or datasheet.

Hole diameter:	75mm, 80mm
Color Temperature/Color:	2700K, 3000K

Close menu

ELIE-10WW1 Datasheet ELI square
ELIR-10WW1 Datasheet ELI round
