K-AERA FLAT Luminaire 48W ZigBee/DALI DT8

From 474.81€ *
Net price: 399.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first




  • K-AERA-NL-595
  • K-AEF-595-NL
  • 8.5 kg
  • KITEO GmbH
Bright panel light K-AERA FLAT 48W - DALI DT8 or NeoLink / ZigBee dimmable The use of PI-LED... more

Bright panel light K-AERA FLAT 48W - DALI DT8 or NeoLink / ZigBee dimmable

The use of PI-LED Edge Light modules gives this LED panel light its very flat design. By realistically reproducing the course of daylight, it follows the guiding principle "Brings the sun into the room" and is ideally suited for large indoor lighting. In particular, K-AERA FLAT offers optimal conditions for VDU workstations. A high colour location stability as well as uniform light distribution and mixing make a significant contribution to this. In addition, there is a reduced-glare microprismatic optic.
Depending on the control (NeoLink / ZigBee or DALI DT8) and design, the LED light is available in different versions.

Another highlight are the innovative control options of the K-AERA FLAT:

  • Smart lighting control with NeoLink / ZigBee
  • Control of complex lighting systems with DALI DT8

Product overview and features of the K-AERA FLAT:

  • Ideal indoor use as wide area lighting
  • Very flat design
  • Improved concentration and increase in performance at the workplace due to the simulated circadian daylight sequence
  • Functionality: Colour temperature 1,800 K to 16,000 K
  • High colour stability from micro-controller controlled LED management with temperature compensation and factory calibration
  • Uniform light distribution and mixing through edge lighting
  • Optimal conditions for the displays of work stations UGR<19
  • Operating temperature monitoring with automatic dimming function
  • Direct 23 0V mains connection

K-AERA FLAT Product features over view

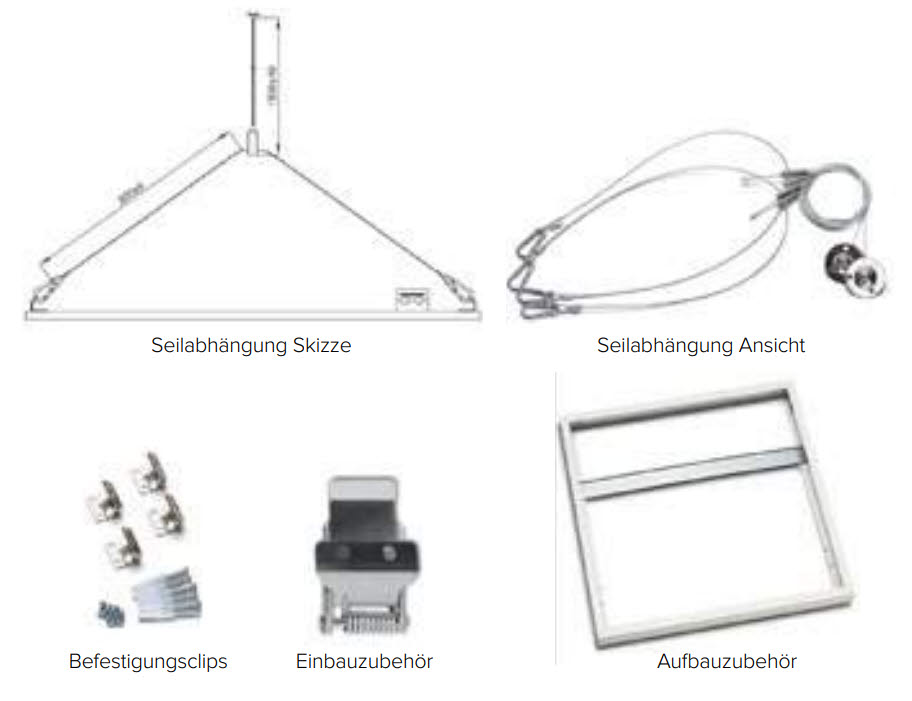

Installation instructions:

  • Size according to the common grid dimensions
  • Depending on the installation, the K-AREA FLAT can be used flexibly as a recessed, surface-mounted or pendant luminaire.

Technical data:

Article number K-AEF-595-NL K-AEF-620-NL K-AEF-595-DA K-AEF-620-DA
Luminous source LED-Modul (PI-LED)
Operating voltage 230 VAC
Power 48 W
Luminous flux 3600 lm
Colour temperature 1800 K - 16000 K
Colour rendering index (CRI) 90
Control NeoLink / ZigBee
Dimming range CCT/CIE-xy 5-100% / RGB 0-100%
Edge length 595 mm 620 mm 595mm 620 mm
Protection type IP20
Protectopn class SKI
Service lifetime L80/B10 50000 h
Dimensions 595 x 595 x 50 mm (L * W * H)
620 x 620 x 50 mm (L * W * H)

For further information please refer to the data sheet in the Download tab.

Related links to "K-AERA FLAT Luminaire 48W ZigBee/DALI DT8"
LED surface luminaire 48W for 1800-16000K, PI-LEDs, controllable via ZigBee or DALI DT8,... more
Features of the product family. Details on variants can be found in the description.
Application: Indoor
Power: 50W
Dimmable/Control: DALI, DALI DT8, Zigbee
Color Temperature/Color: 2700K, 3000K, 3500K, 4000K, >5000K, Tuneable White
Data sheet K-AERA FLAT
