K-MOTUS-DALI/ZigBee dimming built-in lighting 13,3W
Net price: 229.00€
Prices incl. VAT plus shipping costs
- Order number: K-MO-NL-R-W
- Hersteller-Nr.: K-MO-R-40-NL-WH.
- Weight: 0.4 kg
- Manufacturer: KITEO GmbH

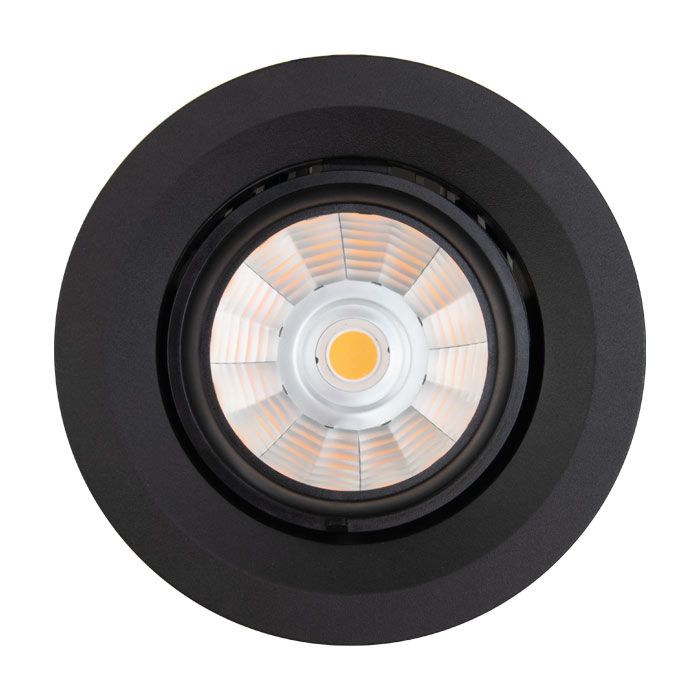

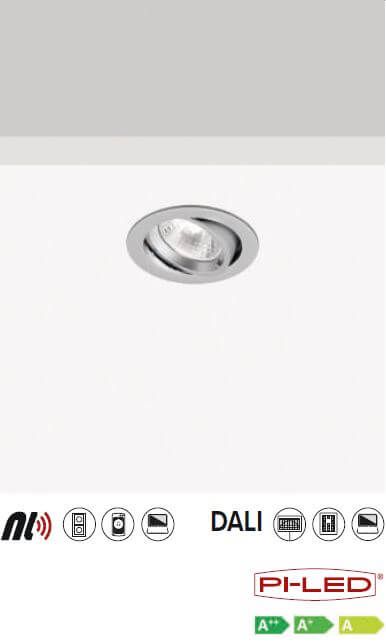

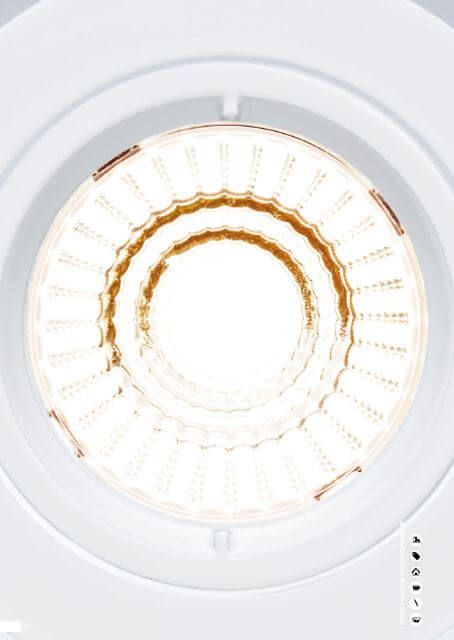

Compact recessed luminaire K-MOTUS 13.3W - ZigBee / DALI dimmable
With K-MOTUS you get a simple, universally usable recessed luminaire, which brings with it a uniform light distribution. In addition, there is a soft mix of light, which means that a wide variety of LED lighting systems can be ideally presented. The 50 ° beam angle and the swiveling ability of the LED module underline its flexibility and at the same time ensure very good lighting. The compact design is particularly advantageous during assembly, since only a small installation depth is required.
Another highlight are the innovative control options of the K-MOTUS:
- Smart lighting control with NeoLink / ZigBee
- Control of complex lighting systems with DALI DT
Product overview and Features:
- Can be swiveled by 35 °
- Range of functions: Color temperature 1,800 K to 16,000 K
- High color location stability thanks to microcontroller-controlled LED management with temperature compensation and factory calibration
- Uniform light distribution and soft light mix
- Trapezoidal leaf springs and bayonet lock
- Compact design with low installation depth
Ordering data for K-MOTUS:
The product is depending on
- Control (DALI or ZigBee)
- Design (round or square) and
- Surface (white or matt Chrome)
Available in different versions, with all built-in lights having integrated PI LEDs.
Technical data:
Light source | LED-Modul (PI-LED) | |||
Operating voltage | 230 VAC | |||
Power | 13,3 W | |||
Beam angle | 50° | |||
Luminous flux | 670 lm | |||
Color temperature | 1800 K - 16000 K | |||
Color Rendering index (CRI) | > 90 | |||
Control | NeoLink / ZigBee DALI DT8 | |||
Dimming range | CCT/CIE-xy 5-100% RGB 0-100% | |||
Protection class | IP20 | |||
Protection class | SKII | |||
Lifespan | L80/B10 50000 h | |||

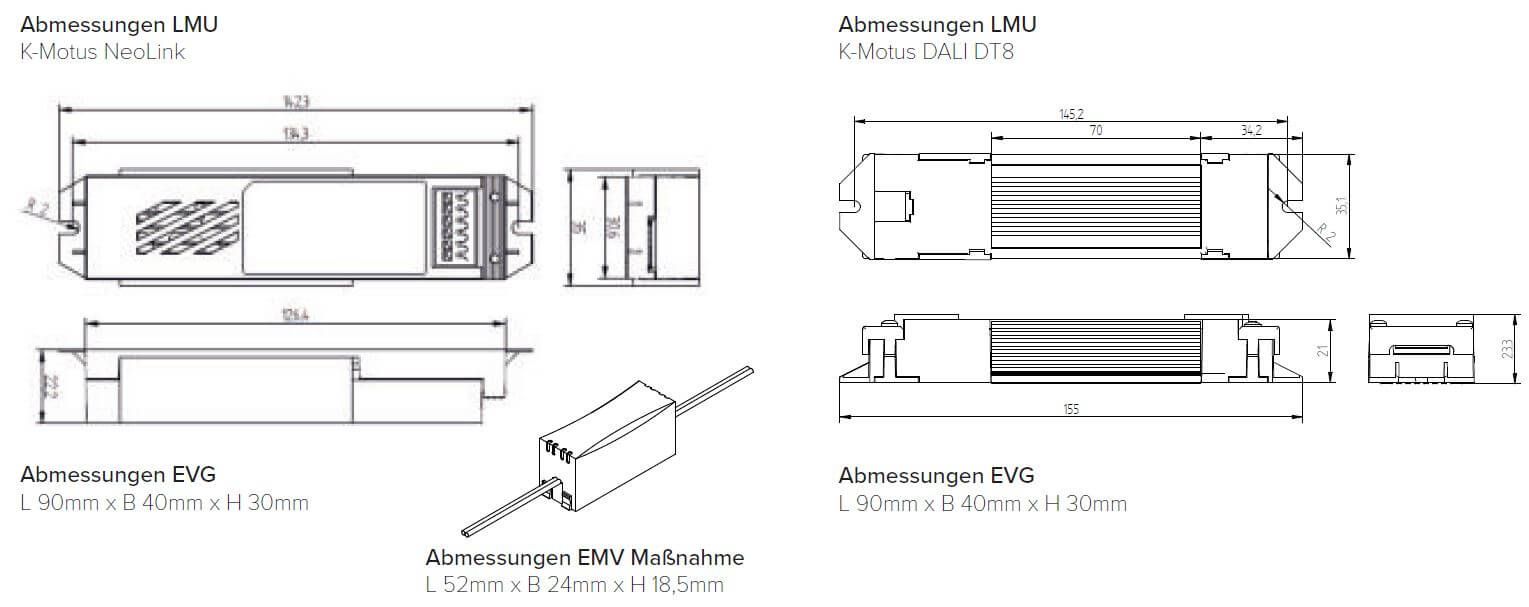

Dimensions (EVG) | 90 x 40 x 30 mm (L*W*H) |
For more information, please refer to the data sheet in the download tab.
Application/IP-Code: | IP20 - IP44 (Indoor) |
Lamp shape: | Recessed ceiling |
Dimmable/Control: | DALI DT8, Zigbee |
Color Temperature/Color: | 2700K, 3000K, 3500K, 4000K, >5000K, HCL/PI-LED, Tuneable White |
