Product information "LED Converter TCI DALI | 1-10V Mini ZB3 Interface ZIGBEE"

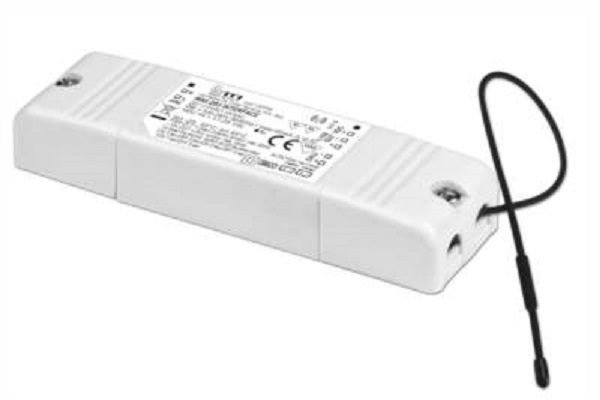

Converter ZIGBEE ZB3 - DALI/1-10V | 122553 Mini ZB3 Interface

This interface converts a WIRELESS ZIGBEE ZB3 signal into a DALI  (1) or a 0/1...10 V signal. It enables control of lighting control gear, such as switching power supplies ("electronic transformer"), electronic ballasts (ECG) or electronic power dimmers. Dimming of LED drivers via the 0-10V interface via ZIGBEE.


Features Zigbee 1-10V/Dali converter:

  • Interface, that can convert a WIRELESS ZB3 signal into a DALI or 0/1...10 V (1).
  • Protection class II against electric shock in case of direct or indirect contact.
  • The interface (converter) can be supplied directly from the mains (100 ÷ 240 VAC) or from a 12/24 VDC voltage.
  • Protective measures:
    -against input overvoltages from the mains;
    -against short circuit and open circuit;
    - Thermal protection = C.5.a.

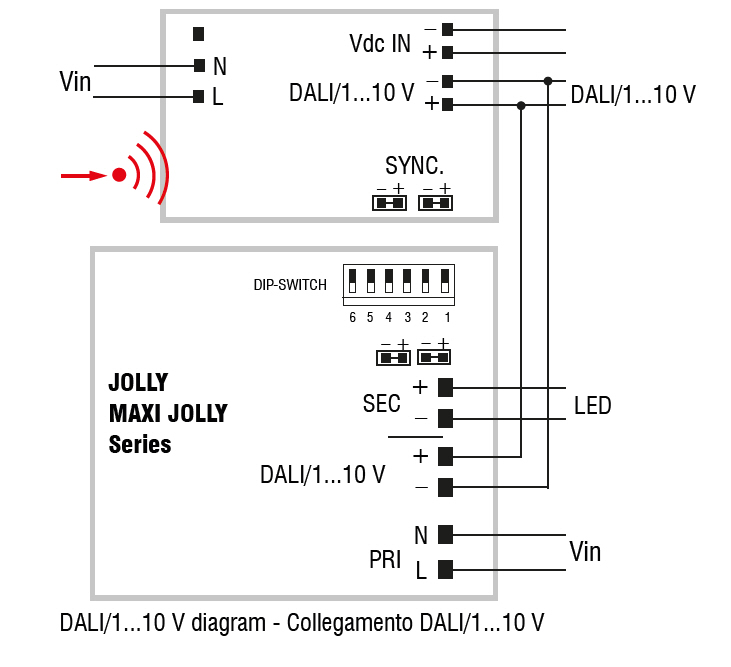

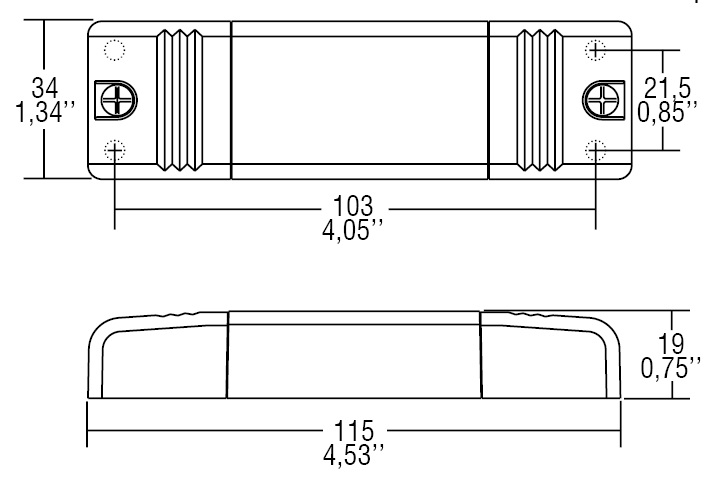

  • Abmessungen 115 x 19 x 34 mm

Mini ZB3 Interface ZIGBEE DALI | TCI 122553 (ex 122550)

Article Article No. VAC in VDC in Type ta °C tc °C lambda max.
Power Factor
Mini ZB§ Interface 122553 100 ÷ 240 11,5..25 ZB3- DALI/1-10V -25...+50 65 0,5 C



Operation mode:

  • -Developed for operation with DALI-2 systems.
  • -DALI connection max. 1 device @ 12Vdc input.
  • -DALI connection max. 4 device @ 24Vdc input.
  • -0/1-10 V connection Imax. 10mA.
  • -PWM output open collector type.
  • -Reset: perform 3 on/off cycles of 3-5-7 seconds. The fourth time the product is turned on, it will flash to confirm the reset..

Setup of the TCI devices like this:

Step 1: Hue-App go for "Search Luminaires"
Step 2: Switch on TCI Zigbee device
Device should be connected within some seconds.
Check signal level when close to metal surfaces or inside metal box.

For more information please refer to the data sheet in the Download Tab.
Some hints by LEDclusive.de:
We have successfully tested the TCI-Module with Philips Hue Bridge and got following experience. Just follow the setup procedure above, the device can be easy found in the setup of luminaires.
In case something went wrong, we recommend running the reset procedure. This is described on the label. Take care to follow the time sequences exactly.
We use one metronome for counting. Successful reset get confirmed by a short off and on of the connected LED-module.
