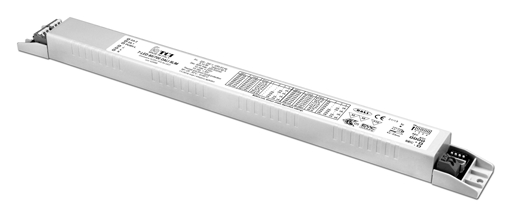

LED driver Linear T-LED 80/700 DALI Slim

Product information "LED driver Linear T-LED 80/700 DALI Slim"

TCI T-LED 80/700 LED driver linear dimming via DALI

LED driver with 80 Watt, max. constant current 700mA, programmable via dip-switch.
TCI 127087 can be dimmed via DALI or push-button function.

No flickering due to linear control

  • Multi-current or multi-voltage converter - universally applicable. Ext. temperature sensor optional.
  • Control via DALI interface or pushbutton.
  • On/Off with short key press, brightness change via held button.
  • Dimming level from 10% - 100%
  • For housing installation in e.g. luminaires
  • Flicker-free - linear control
  • Standby power < 0.5W
  • Efficiency > 92%

Currents for T-LED 80/700 DALI selectable via dip switches:
Ripple freeAM dimmingDALI, Bilevel, push, constant current logosTCI labels, not-SELV

Dip-SWPerformanceSpg. sekCurrent sek# LED
Position 142 W30...120 V350mA const.max 48
Position 245 W30...120 V375mA constmax 48
Position 348 W30...120 V400mA constmax 48
Position 451 W30...120 V425mA constmax 45
Position 554 W30...120 V450mA constmax 45
Position 657 W30...120 V475mA constmax 45
Position 760 W30...120 V.500mA constmax 45
Position 863 W30...120 V525mA constmax 45
Position 966 W30...120 V550mA constmax 40
Position 1069 W30...120 V575mA constmax 40
Position 1172 W30...120 V600mA constmax 40
Position 1275 W30...120 V625mA constmax 35
Position 1378 W30...120 V650mA constmax 35
Position 1480 W30...118 V675mA constmax 30
Position 1580 W30...114 V700mA constmax 30

TCI driver functions, safety protectionBuilt-in
For a detailed description, please refer to the data sheet.

Properties "LED driver Linear T-LED 80/700 DALI Slim"
·Constant Current: 0,35A, 0,38A, 0,4A, 0,45A, 0,5A, 0,55A, 0,6A, 0,65A, 0,7A
·Dimmable/Control: DALI, Linear/AM, Push-Button
·Power range: 50 - 100 W
Datasheet & further Infos about this product

Datasheet TCI Maxi Jolly DALI
Switch-Dim Resync Manual

Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma, 14 – Saronno 21047 (VA) – Italy
