TCI DC Jolly HC MD; universal dimmable LED converter
TCI 127550 50Watt selectable constant current, constant voltage via dip-switch
Multi current-multi voltage converter- universally applicable.

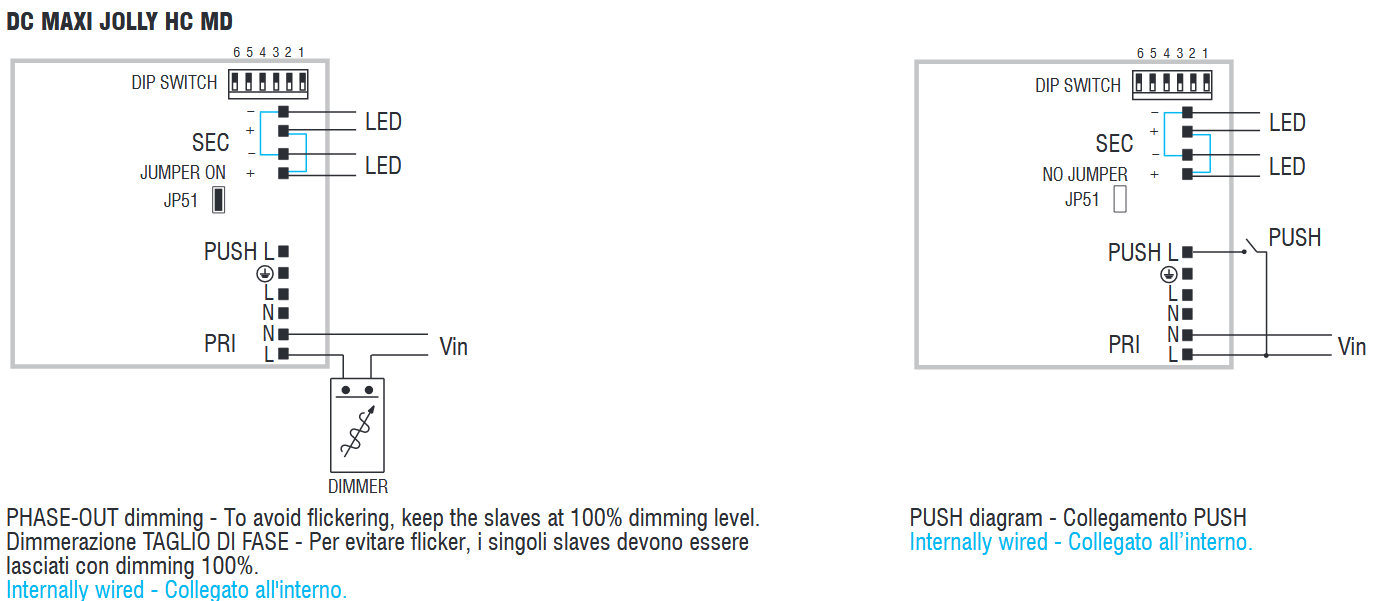

The dimmable LED Converter is Controllable via conventional dimmer (Phase-fired controller) or button (Push-Button).
On/off by a short push. Brightness can be changed by a longer push.
- Flicker ( Output Ripple ) <= 3%

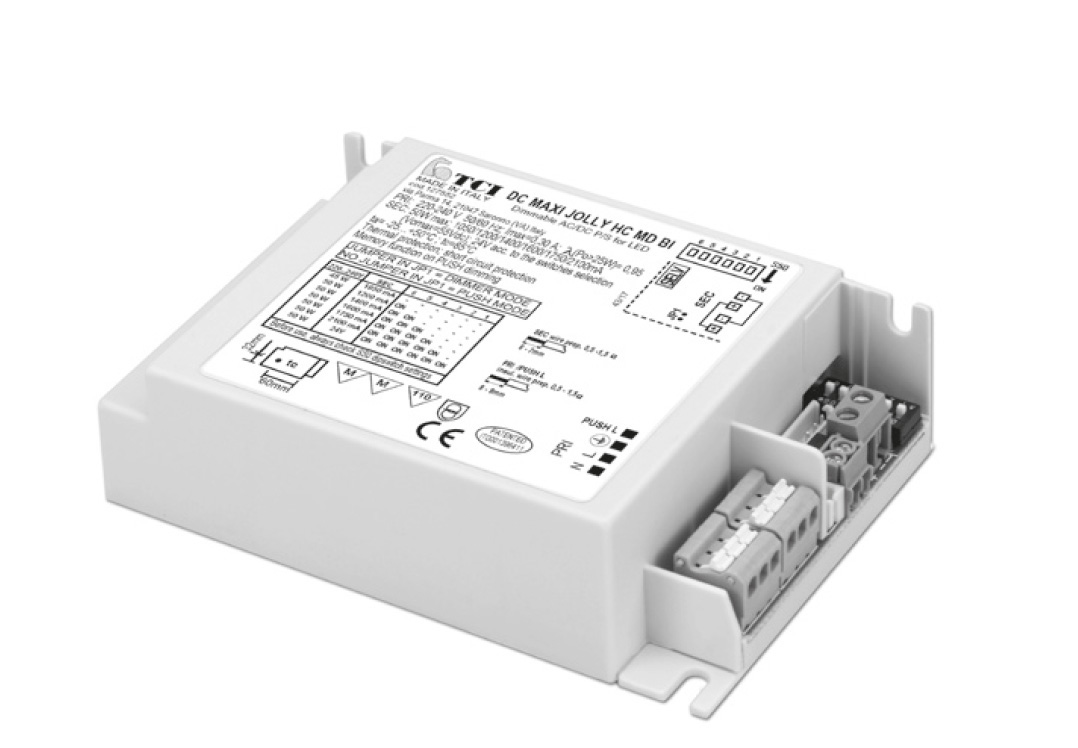

- Built-in version TCI 127552 50 Watt
- Designed as a constant current source for high currents, alternatively used as a constant voltage source.
- Constant current from 1,05A to 2,1A.
- Double terminal blocks to loop other driver (max. 5 A)

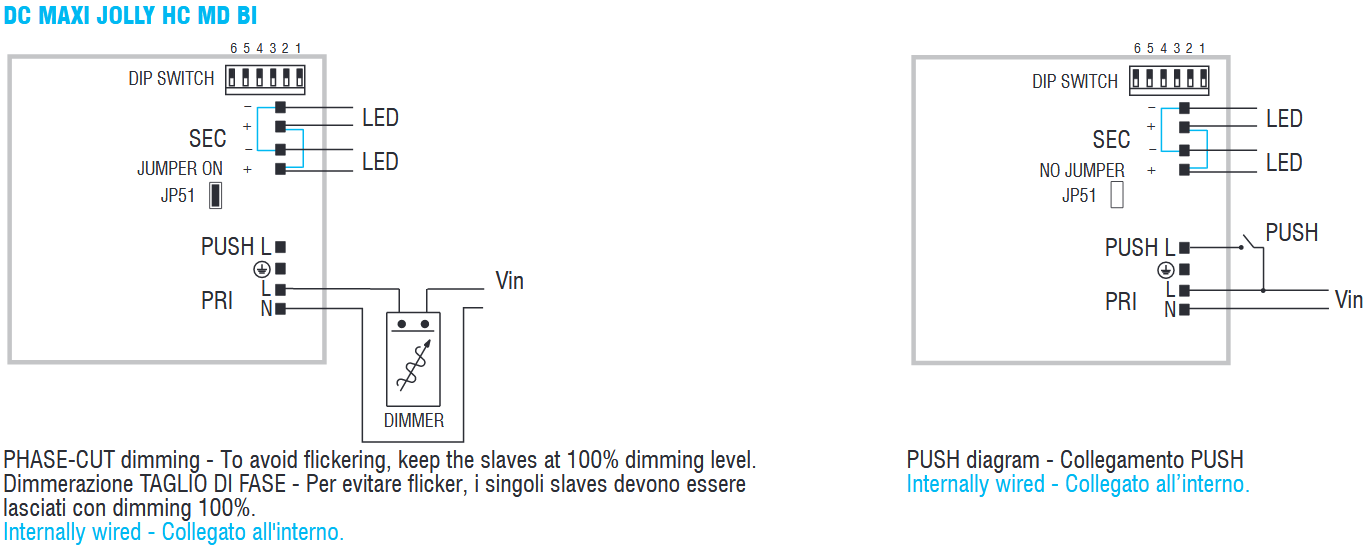

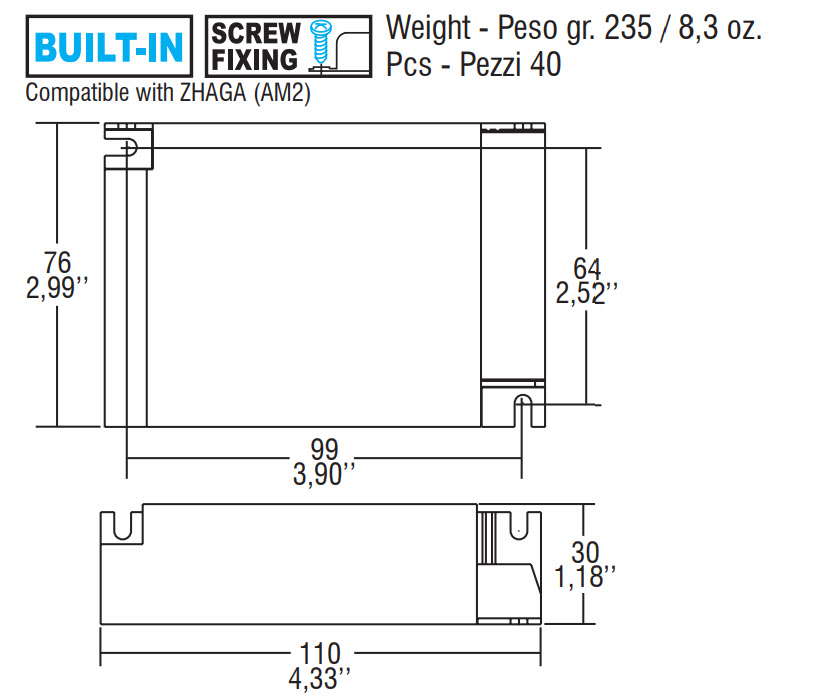

Version TCI 127552 is for Built-in use. (without strain relief and terminal cover)

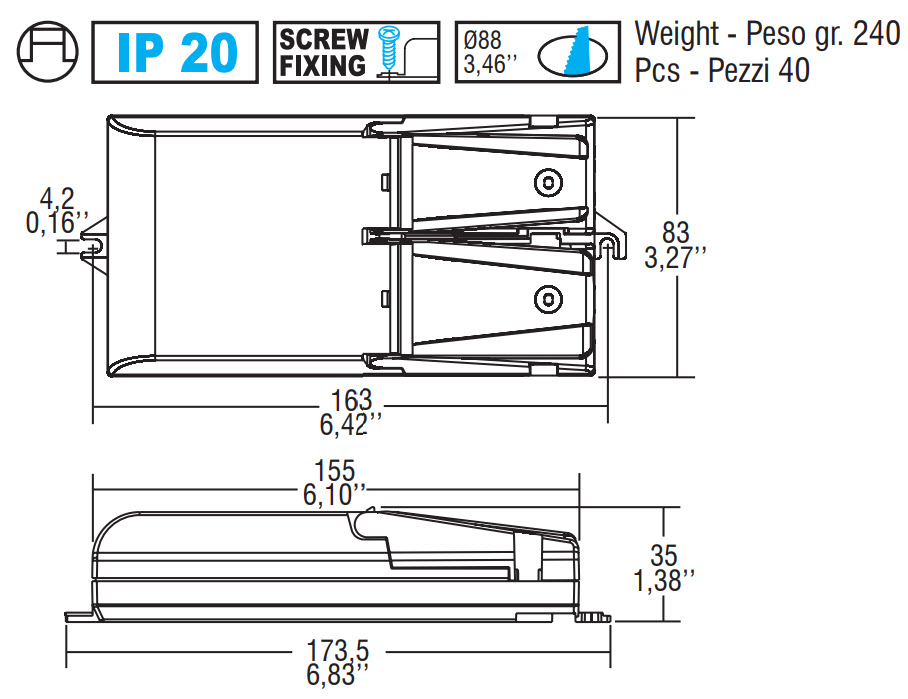

Version TCI 127550 has a terminal cover incl. strain relief
Dip switch overview with power, current and max. Voltage
|Dip-SW||Power out |
|Voltage out||Current out|
|Position 1||45 W||2...43 V||1,05 A const|
|Position 2||50 W||2...42 V||1,2 A const|
|Position 3||50 W||2...36 V||1,4 A const|
|Position 4||50 W||2...31 V||1,6 A const|
|Position 5||50 W||2...28 V||1,75 A const|
|Position 6||50 W||2...23 V||2,1 A const|
|Position 7||50 W||24 V const.||2,08 A max.|
- All TCI Jolly converter can be connected to each other via sync-cable. Thus, the control over only one button is possible.
- Maximum 10 drivers synchronization, is possible command only one driver (1 Master + 9 Slaves).
- Button and installation materials are not included in delivery.
For detailed description of dimmable LED converter please refer to the data sheet.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Dimmable/Control:||Phase-Cut (Triac), Push-Button|
|Constant Current:||1,05A, 1,2A, 1,4A, 1,6A, 1,75A, 2,1A|
|Power range:||20 - 50 W|
