Linessa 2L - 1195x295

Variants from 268.94€ *
Net price: 226.00€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Colour temperature:



  • IL1390-3DC403CHXE02
  • 3DC403CHXE02
  • 0.473 kg
  • 8716197271339
  • Illuxtron International BV
Illuxtron Linessa 2L (1195x295) Sustainability Less is more. Or in the case of Linessa:... more

Illuxtron Linessa 2L (1195x295)


Less is more. Or in the case of Linessa: Making technical innovation affordable by clever product design. The end result is a lighting panel that only has 7 parts and no glue, screws or tape. Linessa has a very minimalist design. At the end of life it is very easy to take the product apart or implement a new LED module. In this scenario we minimize the waste of materials, keeping it as low as possible. Compare this to hazardous fluorescent lamps that need to be replaced frequently.

Bartenbach Darklight Technology - UGR11

Normal diffuser panels distribute light in all directions and create a lot of glare. The Bartenbach Institute helped us to develop special reflector cups that ensure all of the light is reflected in ways that you need. Less glare in an office means less mistakes, less head aches and greater wellbeing for your employees.

Best in class Lux/Watt

The normal amount of lux for an office desk is around 500Lux. With the Linessa series this can be achieved with less energy. Compared to a normal diffuser LED panel of 25-40W it saves 25-40%.

No Multi Shadows

As soon as you try to focus light on to an object with multiple reflectors there will be an annoying multi shadow effect. By using 10 times more reflector cups than normal this effect will dissapear.

Bespoke Versions

The metal plate can be easily changed to different dimensions. It is even possible to integrate a sensor into the plate or air sleeves for ventilation.

Less Light Pressure

Existing LED reflector technology panels have low glare, but were uncomfortable to work under. By adding more reflector cups we managed to achieve the best comfort available in any LED panel on the market. The pressure from the LEDs is divided by an enormous amount of LEDs.

Features and benefits
• Application of Bartenbach's special Dark Light Technology with ultra-low UGR rating.
• Ideal for office applications
• Extremely low wattage for necessary lux level

The most important technical details of the Linessa 2L series:

Housing colour

matt white RAL 9016 (XX=MW)

Material Reflector cups: Chrome

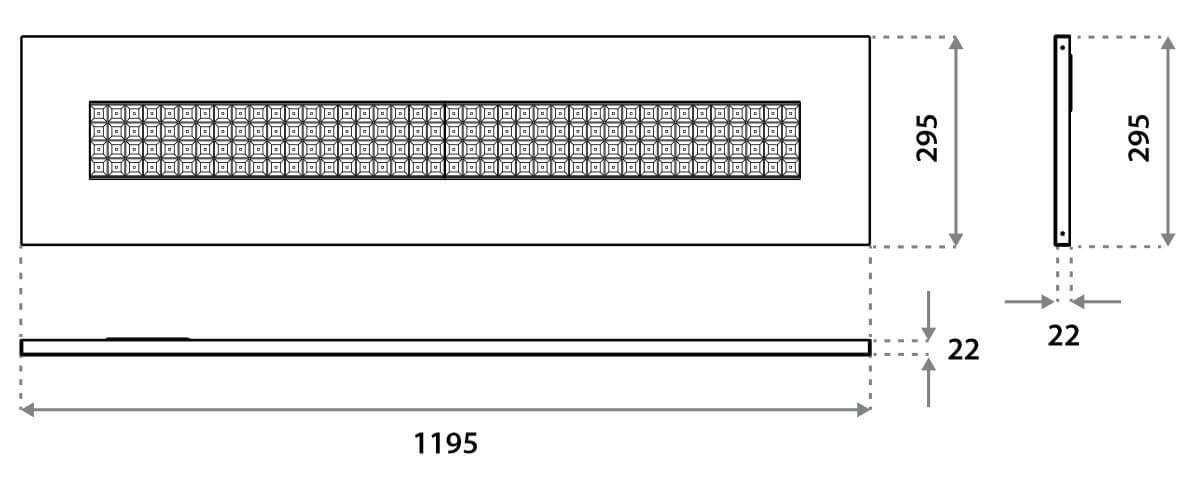

Dimensions 1195 x 295 mm
Usage Indoors
Colour Consistency (MacAdam) SDCM3
IP Code IP20 / IP44
IK Code IK03
Colour temperature (Ta) -20°C / +45°C
Life time bei 25°C
L70B50 > 100.000 h
L80B50 > 100.000 h
L90B50 > 54.000 h
Safety signs EN60598 / EN62031 / EN62471
EMV-Directive EN55015
Guarantee 7 years
Energy class A++

Linessa 2L

This panel is available in the size 1195 x 295 mm.

For further information about Linessa 2L please see the respective data sheet.

Linessa 2L


Not dimmable

1-10V&Push, DALI (*Note)


Casambi (*Note)

Art. No. 3DC403CHXA02 3DC403CHSG02 3DC403CHXB02 3DC403CHSH02 3DC403CHSJ02
Colour temperature 3000 K 4000 K 2700 - 6500 K
UGR 13,8 14,9 14,0 15,1 14,0
Luminous flux 3300 lm 4550 lm 3450 lm 4750 lm 3450 lm
Lm/W (with EVG) 139 135 145 141 145
CRI 83
Type Inc. connection box
Input 220-240 V
Power 23,8 33,6 23,8 33,6 23,8
Protection class II I II I
Pf 0,95 0,9

*Note: This table shows only the switchable version (3000K and 4000K), and the DALI version (2700-6500K). This panel is also dimmable as DALI, Casambi and 1-10V&Push.

For data sheets of the Linessa 2L-series see Download Tab:

The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Related links to "Linessa 2L - 1195x295"
Elegant LED panels Linessa 2L in the size of 1195x295 mm from Illuxtron combine modern design... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: 1..10V, Casambi radio, DALI
Color Temperature/Color: 3000K, 4000K
Lamp shape: LED Grid Inlay
Illuxtron datasheet
Linessa 2L 1195x295
