Luxmeter MAVOLUX-5032C Base

Product information "Luxmeter MAVOLUX-5032C Base"

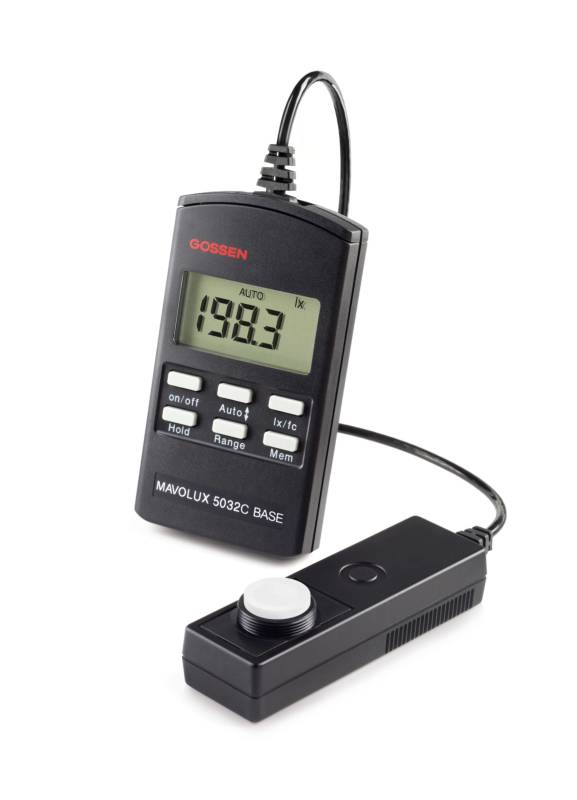

MAVOLUX-5032C Base - A high-quality luxmeter at a small price

The German company GOSSEN stands for high quality and a convincing precision due to a long-standing experience. With the MAVOLUX-5032C Base a luxmeter was developed which is a cheap measuring instrument but works very precise.
The absolutely reliable measuring values of daylight and even artificial light like LED, come about due to an extremely high-quality V(?)-adjustment and a fine adjusted cosine correction. The V(?)-adjustment works due to a color correction of the silicon-photodiode, whose spectral sensitivity is similar to the light sensitivity of the human eye.

The wide measuring range of the Mavolux-5032C Base, with a high starting sensitivity and resolution of 0,1 lx resp. 0,01 lc up to a very high illumination level of 199900 lx resp. 19990 lc, makes a perfect use - even under extrem conditions - possible.

The versatility of the Mavolux-5032C Base impresses

If you plan or built lighting systems, or if you control, repair and maintain them as a service, the Mavolux luxmeter is the perfect tool for you. You can reliably control and monitor the prescribed lighting conditions.

Calibration ability for certificated measuring

For the luxmeter Mavolux-5032C Base calibration certificates are optionally available. Via
DIN EN ISO 9001:2008 your device is audited and calibrated on your desired date.

Product characteristics:
  • Classification: Class C DIN 5032-7 / EN 13032-1 appendix B
  • Illumination level: 0,1 lx ... 199 900 lx / 0,01 fc ... 19990 fc
  • Measuring range: 4
  • Measuring range switching: manual/automatic
  • Measuring rate: 2 measurements per second
  • Measuring sensor: silicon-photodiod with V(?) filter
  • Measuring head with tripod socket
  • Measuring line: 1,5 m firmly attached
  • Data logger: 100 measuring values
  • Error limit - V(?)-adjustment (f1') typically: < 7,5%
  • Error limit - Total error typically: <= 15 %
  • Accurancy: +/- 3 % v. Ablesung +/- 1 Digit
  • Display: 3 1/2 character LCD-display
  • Controls: 6 keys
  • Battery: 2 x 1,5V Mignon, type AA
  • Automatic switch off: 4 min /continuous operation
  • Operating temperature: 0 °C to 50 °C
  • Dimensions: 65x120x19 mm (measuring device), 31x105x30 mm (measuring head)
  • Weight: 200g (without batteries)
  • Works certificate - H997B
  • DAkkS - certificate - H997D
  • Delivery:
    M502B incl. battery and manual

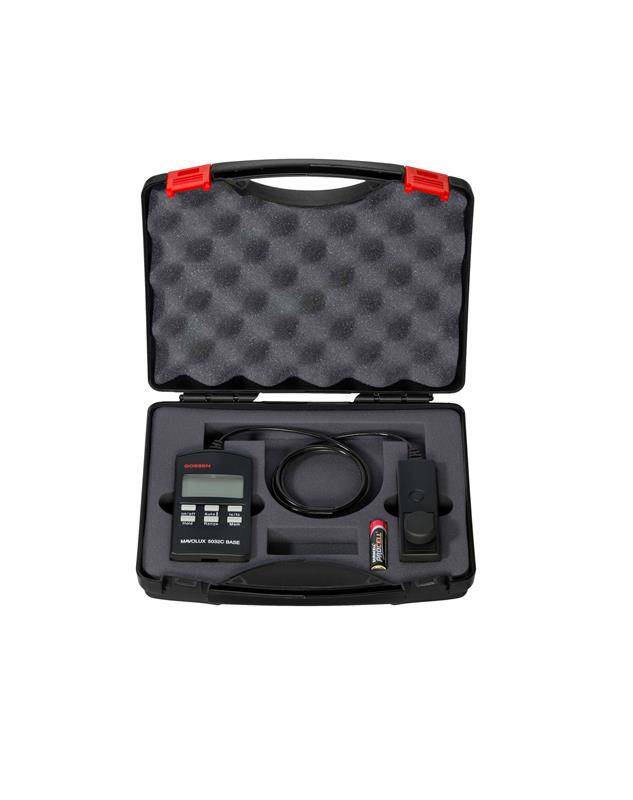

    M502BG incl. battery, manual in transport box F5032G

If you want to purchase only the plastic case, so click here.

Manufacturer "GOSSEN Foto- und Lichtmesstechnik GmbH"

The company Gossen Foto- und Lichtmesstechnik GmbH was founded in 1997. Today Gossen is one of the leading manufacturers of precision measurement technology escpecially in lighting measurement.
