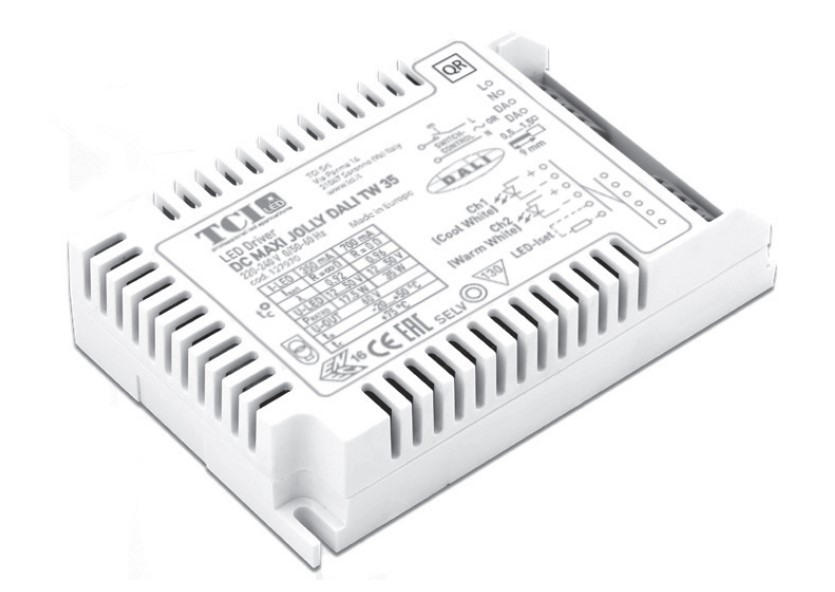

MAXI JOLLY DALI TW - 2 CHANNELS

Variants from 69.79€ *
Net price: 58.65€
Content: 1 Stück

Prices incl. VAT plus shipping costs

Please select a variant first

Construction:

Power:


Stück

DC MAXI JOLLY DALI TW 35/45 - 127970/127971 The MAXI JOLLY TW 35/45 is delivered with default... more

DC MAXI JOLLY DALI TW 35/45 - 127970/127971

The MAXI JOLLY TW 35/45 is delivered with default values.

Properties

  • Multipower driver with 2 channels for color control of the temperature of TW LED modules.
  • DALI Type 8 compatible. A DALI address for the 2 output channels to control the color temperature.
  • Drivers for integrated use.
  • Can be used for lighting equipment of protection classes I and II.
  • IP20 Class II independent driver (only with optional load relief), for indoor use.
  • Active power factor corrector.
  • Analog input (NTC) for connecting the temperature sensor.
  • Current control ± 5% including temperature changes.
  • Input and output terminals on the same side (wire section up to 1.5 mm2 / AWG15).
  • Protective measures:
    • against overheating and short circuits
    • against mains voltage spikes
    • against overload
  • Thermal protection = C.5.e

Operating Mode

  • Features of DALI type 8 - TW dimming (0 / 0.2 - 100%):
    • Save function for sets or light groups
    • Retrieval of stored functions
    • The DALI color control function has not been verified.
  • Designed to work with DALI 2 systems.
  • Default dimming AM + PWM: 0.2-20% PWM 750/1500 Hz + 20-100% AM.
  • 2% minimum dimming value during color temperature control.

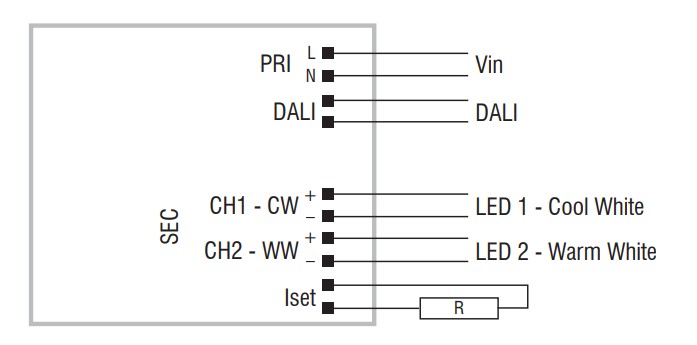

  • Output current programmable by PROGRAMMING TOOL via DALI or by external resistor.
  • Over temperature protection, programmable by PROGRAMMING TOOL.
  • CLO (Constant Light Output) programmable by PROGRAMMING TOOL.
  • Adjustable output current according to LED set

Other features

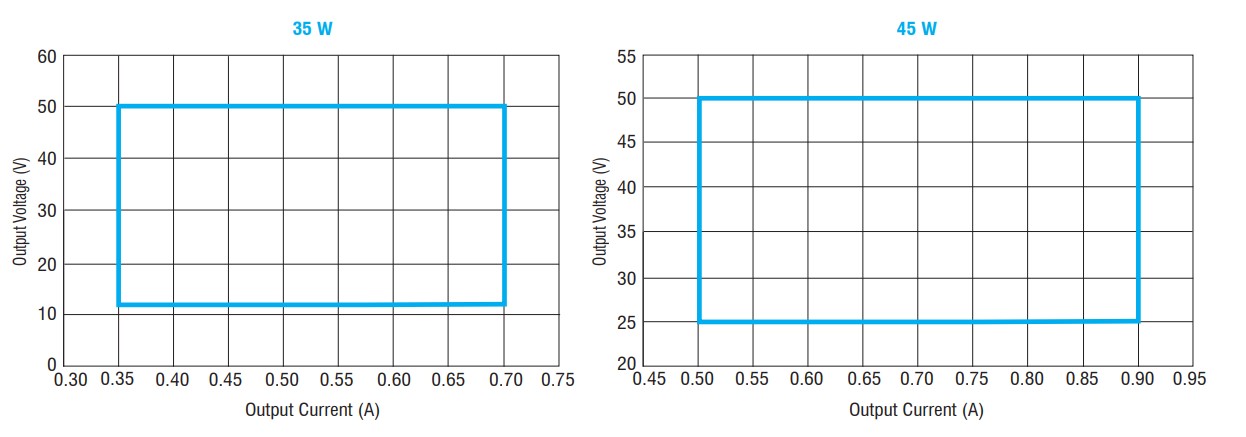

Article Code P out W V out DC I out DC Default I out DC U out V ta °C tc °C max. Power Factor max. Efficiency
DC MAXI JOLLY DALI TW35 127970 4..35 12..50 350...700mA cost. 350mA 60 -20..+50 75 0.92C - 0.96 > 88
DC MAXI JOLLY DALI TW45 127971 12..45 25..50 500..900mA cost. 500mA 60 -20..+50 75 0.93C - 0.97 > 88

For more information, please see our download tab.

Related links to "MAXI JOLLY DALI TW - 2 CHANNELS"
2 Channels 35/45W DALI more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI DT8
Color Temperature/Color: Tuneable White
Constant Current: 0,5A, 0,7A, 0,9A, 0,35A
Power range: 5 - 20 W, 20 - 50 W
Datasheet for DC MAXI JOLLY DALI TW
