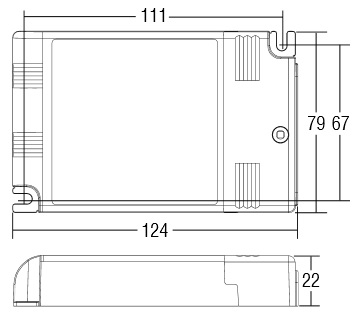

TCI Maxi Jolly US LED driver - Now available as Bilevel N Version
This LED driver TCI 122418N can be used in two different levels, for example at 100% power and a programmable value for night setback.
The reduction level of light can be changed with a simple programming on the mains or by connecting resistor to the "LEVEL" terminal block.
Bilevel N means that the LED driver is normally in reduction mode and through the control signal go to 100% of light output.
Ideal for stree lighting.
Multicurrent-multivoltage converter- universally applicable.
Flicker ( Output Ripple ) <= 3%
External temperature sensor optional.
The Maxi Jolly US Bilevel is also available as a high-voltage version: Maxi Jolly HV Bilevel
|Dip-SW||Power||Voltage out||Current out||# LED|
|Position 1||25 W||74 V max.||350mA const.||max 20|
|Position 2||35 W||72 V max.||500mA const||max 20|
|Position 3||39 W||72 V max.||550mA const||max 20|
|Position 4||46 W||72 V max.||650mA const||max 20|
|Position 5||50 W||71 V max.||700mA const||max 18|
|Position 6||50 W||66 V max.||750mA const||max 18|
|Position 7||50 W||58 V max.||850mA const||max 16|
|Position 8||50 W||55 V max.||900mA const||max 16|
|Position 9||50 W||48 V max.||1,05 A const||max 14|
|Position 10||50 W||48V constant voltage|
Efficiency depending of the power: 20W - 50W : 84% - 91%
All tci Jolly converter can be connected to each other via sync-cable. Thus, the control over only one button is possible.
Maximum 10 drivers synchronization, is possible command only one driver (1 Master + 9 Slaves).
Button and installation materials are not included in delivery.
For detailed description please refer to the data sheet.
|Constant Current:||0,35A, 0,5A, 0,55A, 0,65A, 0,7A, 0,75A, 0,85A, 0,9A, 1,05A|
|Power range:||20 - 50 W|
