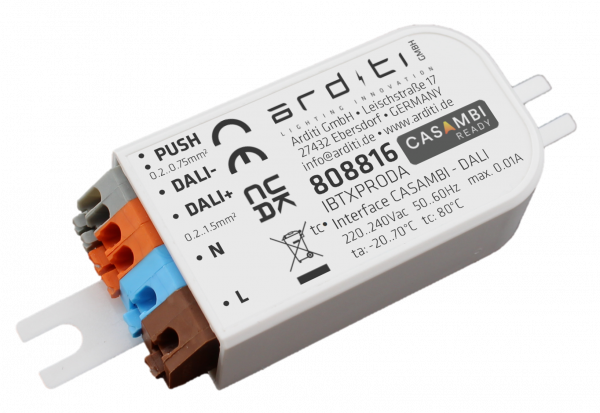

DALI interface with CASAMBI lighting control - configurable Smart Control for LED power packs
he DALI interface with CASAMBI lighting control offers you a convenient recessed solution to regulate your LED lighting with Smart devices. This innovative built-in interface enables the connection of LED power supplies with DALI signal inputs and offers numerous functions:
- Easy configuration with the CASAMBI app.
With the user-friendly CASAMBI app, you can set up the interface according to your wishes and use it in a variety of ways.
- Flexible broadcasting
You can send DALI broadcasts (1 channel) or address them specifically to a DALI address in the range from 0 to 3 (multi-channel).
- interface options
Configuration of the other interface types (DALI: 1..4 Ch, TW, RGB, RGB+W, RGB+TW) possible before coupling into the network: Change profile
- support of up to 5 units
This DALI interface allows you to control up to 5 devices to customise your lighting.
- Additional push-button input
The interface has an additional push-button input that can be freely configured in the CASAMBI app to make operation even more flexible.
- Maximum wiring lengths
The maximum DALI wiring length is 5 metres with a cable cross-section of 1 mm², and the maximum push-button cable length is 5 metres with a cross-section of 0.14 to 0.5 mm².
- Integrated antenna

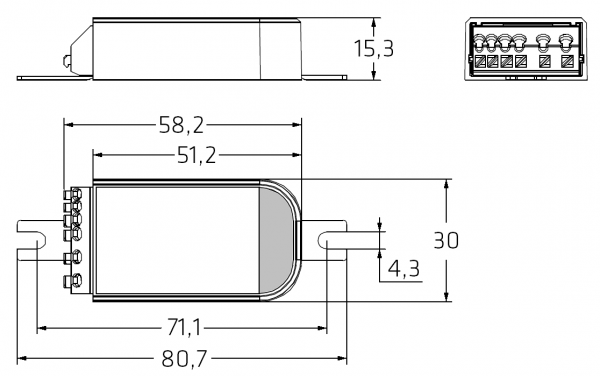

Please note that the interface has an integrated antenna (marked in the grey area of the drawing), which should not be covered with a metal housing.
With our DALI interface with CASAMBI lighting control, you have full control over your lighting and can customise it according to your preferences.
Technical data of the DALI interface with CASAMBI light control
|Supply input||220..240 V; 50 Hz|
|Radio signal||2,4..2,483 GHz; 4 dBm|
|Signal output||DALI / 10 mA|
|Range||Outdoor: up to 150 m|
|Ambient temperature (ta)||-20..+70 °C|
|Max. Rated temperature (tc)||80 °C|
|Dimensions||80,7 x 30 x 15,3 mm|
CASAMBI QR-Code and Links
For further information, please refer to the data sheet in the download tab.
|·Dimmable/Control:||BT4.0 (2,4 GHz), Casambi radio, DALI|
