LUNATONE DALI Power Supply PS2

(3)
Lunatone Industrielle Elektronik GmbH
From 41.65€ *
Net price: 35.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Mounting:


piece

Description Features Downloads Evaluations 3
Description
Lunatone DALI power supply designed for: ceiling installation, DIN rail... more
Close menu

Lunatone DALI power supply designed for:

  • ceiling installation,
  • DIN rail installation, or
  • socket installation

  • Centralised DALI power supply
  • Suited for the power supply of a complete DALI circuit up to 64 standard DALI devices
  • Output current up to 230mA
  • DALI is not SELV. The installation regulations for low voltage are applicable


Technical data

  • Supply: from the mains
  • Frequency of the supply voltage: 50/60Hz
  • Supply voltage: 120/240VAC
  • Maximum output current of 230mA for ceiling installation and DIN rail installation / maximum output current of 30mA for socket installation
  • Maximum power of 4W for ceiling installation and DIN rail installation / nominal power for socket installation: 1W
  • DALI output
  • Protection class: IP20
  • Temperature: 0-50 °C

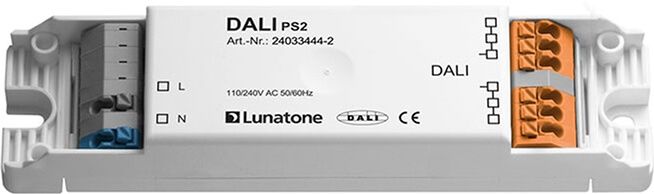

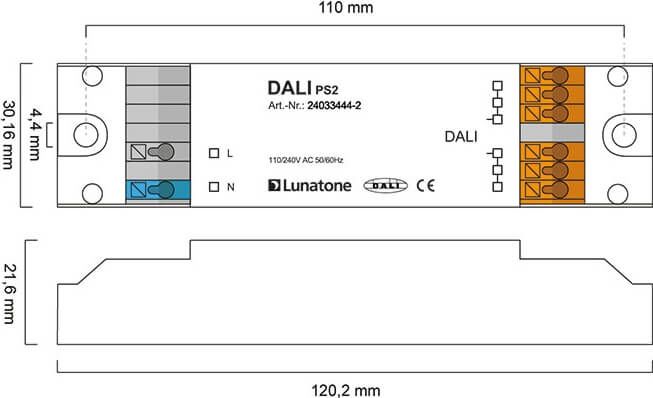

  • Dimensions for ceiling installation 24033444-2 (LxWxH): 120,20 mm x 30,16 mm x 21,60 mm

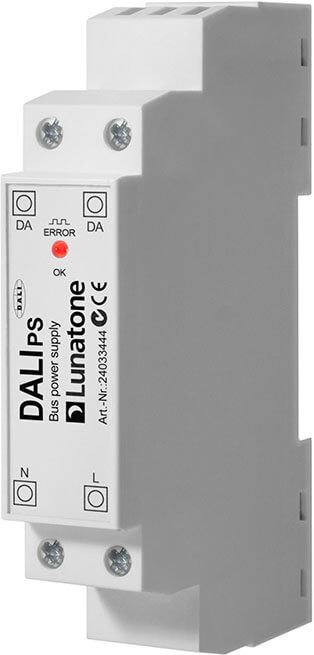

  • Dimensions for DIN rail installation 24033444 (LxWxH): 90,0 mm x 17,8 mm x 58,0 mm

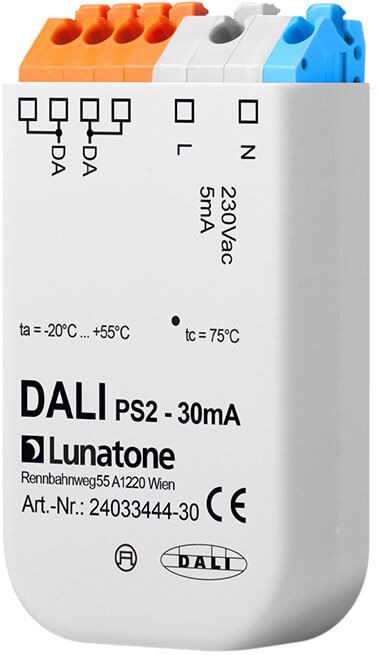

  • Dimensions for socket installation 24033444-30 (LxWxH): 58,5 mm x 32,5 mm x 15,0 mm
  • Cross-section of connecting wires: max. 2.5 mm²


Related links to "LUNATONE DALI Power Supply PS2"
Features
Central DALI power supply for up to 64 standard devices - designed for ceiling, DIN rail or... more
Close menu
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Downloads
more
Close menu
Manual DALI PS2
DALI Power Supply from Lunatone
Lunatone Overview
Evaluations 3
Read, write and discuss reviews... more
Close menu
Customer evaluation for "LUNATONE DALI Power Supply PS2"
From: On: 7 Jan 2021

From: On: 22 Oct 2020

Tut wie sie soll.

Hab die HS Version im Einsatz.

From: On: 15 Apr 2020

Kaufempfehlung

sehr zufieden , schnelle Lieferung
