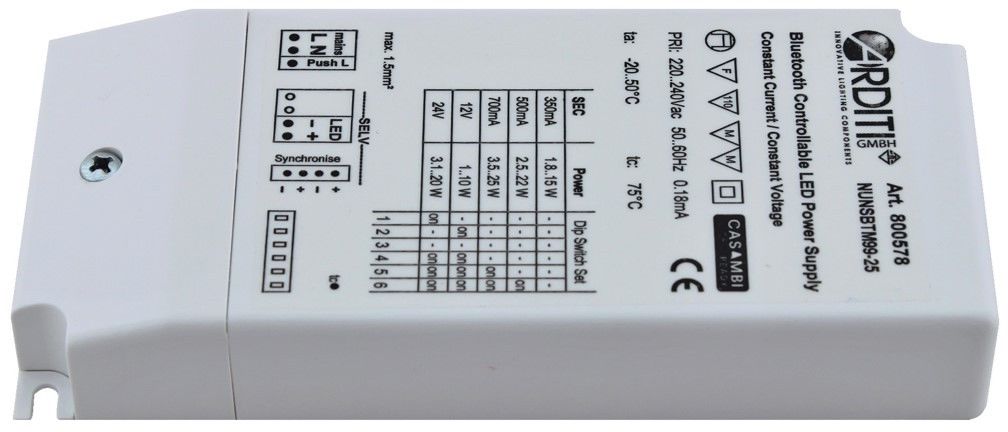

Multi-LED power supply with Casambi Inside

Product information "Multi-LED power supply with Casambi Inside"

Universal LED power supply with integrated Casambi radio module

This 25W multi-LED power supply can be controlled by smartphones and tablets of the operating systems Android and iOS via Bluetooth. The free app from Casambi controls brightness, configures luminaires or networks, creates scenes and animations and automatically detects new luminaires. The power supply has an integrated antenna and does not require a gateway. Additionally  can also be operated via wall switches. Synchronisation and power extension with further power supplies (article no.: 800579) possible in master/slave mode.

Signal input: Bluetooth 4.0 light, Smart devices
Radio signal: 2.4 - 2.483GHz, 4dBm
Controllable via existing mobile phone or any smart device, UP-Casambi switch Interface or Xpress

Perfect for series connection of LEDs in with constant current operation or for LED strips with operation at constant voltage of 12V or 24V.
Please note that this power supply is not connected in the secondary circuit. For power extension the power supply can be synchronized as slave (max.9).

Technical Data of the Casambi Multi-LED Power Supply:

Operating mode350mA500mA700mA12V24V
Article number/Typ800578 / NUBTM99-25
Input voltage220-240V
Working output voltage5 - 43V5 - 43V5 - 36V12V24V
Max. Output voltage49V49V49V12V24V
Rated output current350mA500mA700mA-
Power output

1,8 - 15W

2,5 - 22W

3,5 - 25W

1 - 10W

3,1 - 20W

Rated output voltage-12V24V
Ambient temperature-20 - 50°C
max. rated temperature75°C
Dimensions149 x 68 x 24mm

For more information please refer to the data sheet in the Download-Tab.
Properties "Multi-LED power supply with Casambi Inside"
·Power range: 5 - 20 W, 20 - 50 W
·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio, Push-Button
·Constant Current: 0,35A, 0,5A, 0,7A
·Constant Voltage: 12V, 24V
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Data sheet Arditi 800578
