STAMP LED Marker light 3/6 W, 1/2 light emissions

Variants from 191.90€ * 208.25€ * (7.85% saved)
Net price: 161.26€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Colour temperature:

Version:

Surface:


piece

  • 6828-1L-NW-GG
  • STAMP1-3NW6
  • 0.482 kg
  • ALS GmbH
Waterproof LED Outdoor light 3/6W with 1 or 2 light emissions - primary aluminium, IP65 The... more

Waterproof LED Outdoor light 3/6W with 1 or 2 light emissions - primary aluminium, IP65

The new range of waterproof lamps for outdoor use, reinvents the concept of wall recessed fixtures. Indeed, the minimal 25-30 mm protrusion offers all the advantages of recessed installation, without requiring any wall cavity. The body, characterised by an essential and minimalist line, contains a high technology and excellent lighting efficiency LED which works directly at 230V (DOB - driver on board).

The downward orientation of light (for versions with antidazzle lid) and the possibility to regulate optical inclination, are features which identify it as a path marker. In addition, it is possible to choose between different colour temperatures and housing colorus.

Overview:

  • LED Marker light from primary aluminium
  • Sturdy design (Protection type IP65, protection class 1, impact-resistent, waterproof)

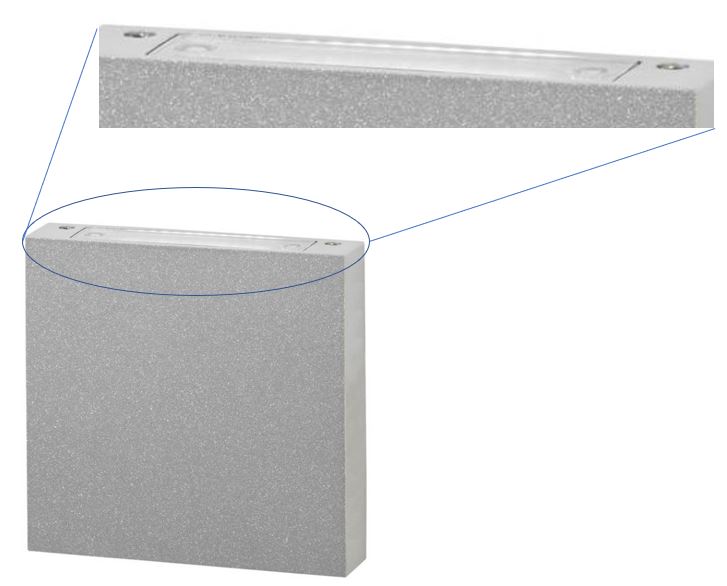

  • Large-area illumination (possibly by two light emissions)
  • Good colour rendering (CRI>80)
  • 60.000 h lifespan
  • incl. power supply
  • Special formworks enable flush wall mounting
  • A dedicated spacer also enables side cable entry/ exit

Note:

  • Not possible with motion sensor
  • 24V DC on request

Technical data:

Versionen:

  • 1 Light emission: 3W System power, 215lm luminous flux
  • 2 Light emissions: 6W System power, 430lm luminous flux
Colour temperature 3000 K 4000 K
Housing colour Graphitgrau Metallgrau Graphitgrau Metallgrau
Article number (Version 1 light emission) STAMP1-3WW6 STAMP1-3WW7 STAMP1-3NW6 STAMP1-3NW7
Article number (Version 2 light emissions) STAMP2-6WW6 STAMP2-6WW7 STAMP2-6NW6 STAMP2-6NW7
Light up with LED
System power 3 W per light emission
Luminous flux 215 lm per light emission
Colour rendering index (CRI) > 80
Power supply incl.
Connection voltage 220-240 V
System efficacy 72 lm/W
Energy efficacy A++
Protection class 1
Test certificate CE
Mechanical load IK10
Material Primary aluminium
Protection type IP65
Lifespan L80 B20; 60.000 h

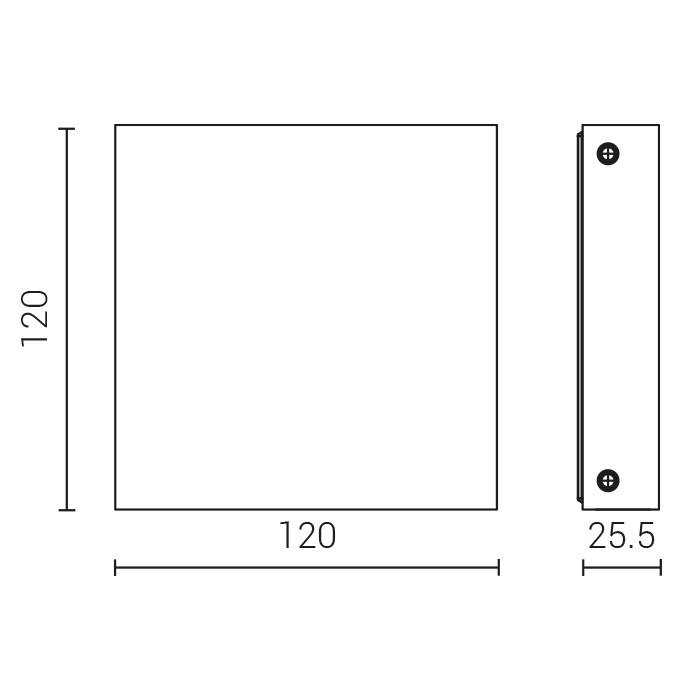

Dimensions L=120*W=120*H=25,5 mm

For further information please refer to the data sheet in the download tab.

Related links to "STAMP LED Marker light 3/6 W, 1/2 light emissions"
Waterproof outdoor LED marker light, 3W per light emission, 220-240V, primary aluminum, IP65,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP65/67 (Outdoor)
Color Temperature/Color: 3000K, 4000K
Data sheet STAMP1 WW GG
STAMP1-3WW6
Data sheet STAMP1 WW MG
STAMP1-3WW7
Data sheet STAMP1 NW GG
STAMP1-3NW6
Data sheet STAMP1 NW MG
STAMP1-3NW7
Data sheet STAMP2 WW GG
STAMP2-6WW6
Data sheet STAMP2 WW MG
STAMP2-6WW7
Data sheet STAMP2 NW MG
STAMP2-6NW7
Data sheet STAMP2 NW GG
STAMP2-6NW6
