STAMP Recessed mounted LED marker light 4,5W/10W

Variants from 209.98€ * 270.73€ * (22.44% saved)
Net price: 176.45€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Colour temperature:

Power:

Surface:


piece

  • 6846-10-NW-GG
  • STAMPE-8NW6
  • 1.04 kg
  • ALS GmbH
Universal LED outdoor light 4,5W/10W as mounted module - adjustable optics, IP65 The new... more

Universal LED outdoor light 4,5W/10W as mounted module - adjustable optics, IP65

The new range of waterproof lamps for outdoor use, reinvents the concept of wall recessed fixtures. Indeed, the minimal 25-30 mm protrusion offers all the advantages of recessed installation, without requiring any wall cavity. The body, characterised by an essential and minimalist line, contains a high technology and excellent lighting efficiency LED which works directly at 230V (DOB - driver on board).

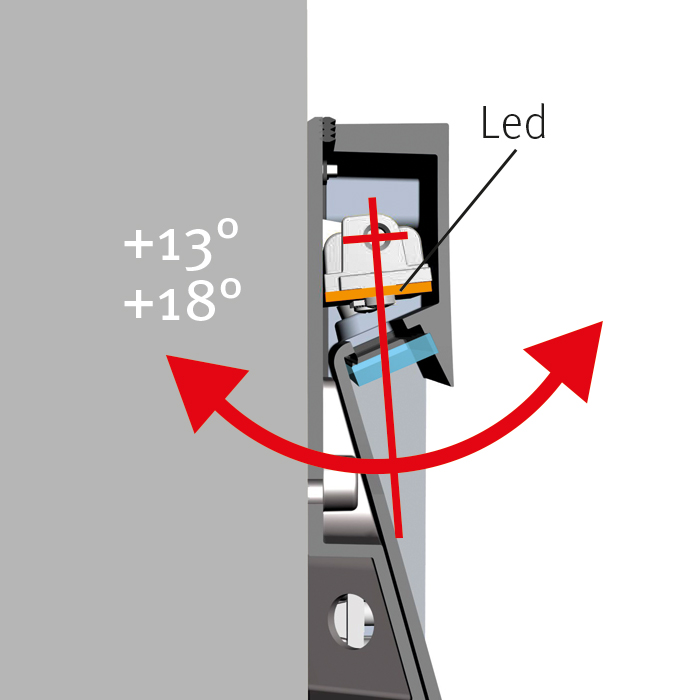

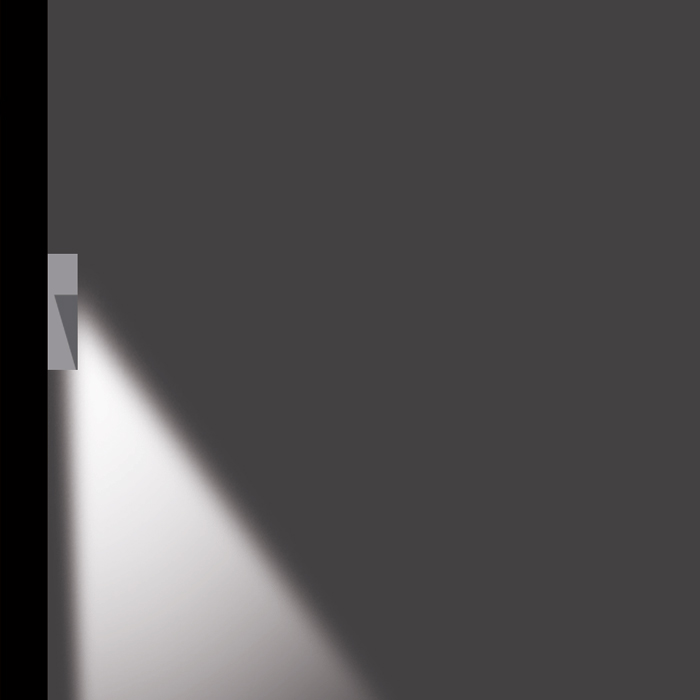

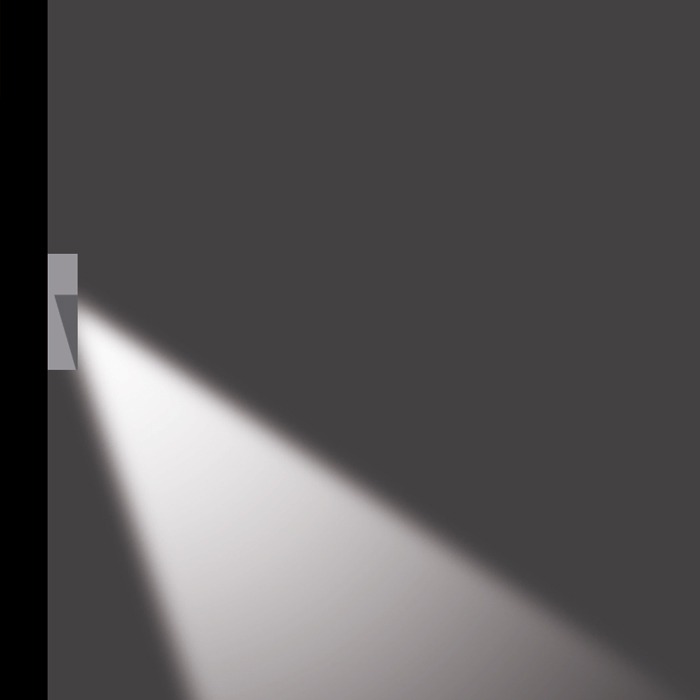

The function of STAMP as a marker light is underlined by the possibility to adjust the inclination of the optics (+ 13° or + 18°). The downward orientation of light (for versions with antidazzle lid) and the possibility to regulate optical inclination, are features which identify it as a path marker

This LED outdoor light is available in a version with 4.5W and 10W and in different colour temperatures and housing colours. The 10W module can also be operated with 500mA constant current. On request, a dimming function by an external button is possible.

Overview:

  • LED Marker light from primary aluminium
  • Adjustable optics by 13° / 18° integrated
  • Sturdy design (Protection type IP65, protection class 1, impact-resistent, waterproof)
  • Good colour rendering (CRI>80)
  • 60.000 h lifespan
  • incl. power supply
  • Special formworks enable flush wall mounting
  • A dedicated spacer also enables side cable entry/ exit

Note:

  • Not possible with motion sensor
  • 24V DC on request

Technical data:

System power
4,50 W 10 W
Colour temperature 3000 K 3000 K
4000 K 4000 K
Housing colour Graphite Metallized grey Graphite Metallized grey
Article number STAMPE-4WW6 STAMPE-4WW7 STAMPE-10WW6 STAMPE-10WW7
STAMPE-4NW6 STAMPE-4NW7 STAMPE-10NW6 STAMPE-10NW7
Light up with LED
Luminous flux 300 lm 800 lm
Colour rendering index (CRI) > 80
Power supply incl.
Connection voltage 220-240 V
Operating current 25 mA 500 mA
System efficacy 67 lm/W 80 lm/W
Energy efficacy A++
Protection class 1
Test certificate CE
Mechnical load IK10
Material Primary aluminium
Version adjustable optics +13° adjustable optics +18°
Protection type IP65
Lifespan L80 B20; 60.000 h

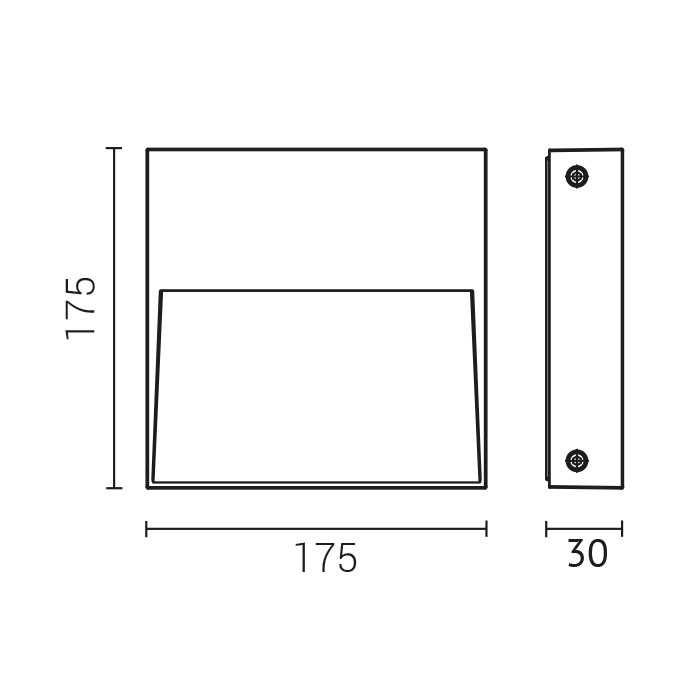

Dimensions L=110*W=110*H=25 mm L=175*W=175*H=30 mm

For further information please refer to the data sheet in the download tab.

Related links to "STAMP Recessed mounted LED marker light 4,5W/10W"
Elegant LED built-in module with swiveling optics at 13° / 18° for 3000K and 4000K at 4.5W /... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP65/67 (Outdoor)
Dimmable/Control: Push-Button
Color Temperature/Color: 3000K, 4000K
Data sheet STAMPE 4,5 WW GG
STAMPE-4WW6
Data sheet STAMPE 4,5 WW MG
STAMPE-4WW7
Data sheet STAMPE 4,5 NW GG
STAMPE-4NW6
Data sheet STAMPE 4,5 NW MG
STAMPE-4NW7
Data sheet STAMPE 10 WW GG
STAMPE-10WW6
Data sheet STAMPE 10 WW MG
STAMPE-10WW7
Data sheet STAMPE 10 NW GG
STAMPE-10NW6
Data sheet STAMPE 10 NW MG
STAMPE-10NW7
Read, write and discuss reviews... more
Customer evaluation for "STAMP Recessed mounted LED marker light 4,5W/10W"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

Hint!

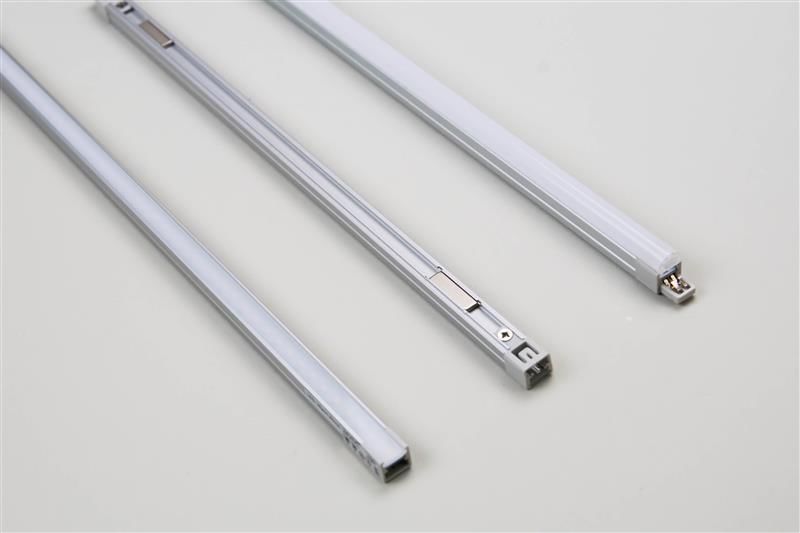

Magnetic LED light bar Magnetic LED light bar
Variants from 24.99€ * 28.26€ *
Order number: NAH-F-4-WW
PASSUM UP 9,5W Downlight PASSUM UP 11W
Variants from 473.03€ *
Order number: 4501-WW-MG-R
STANDING product picture STANDING LED Aluminium bollard 230V 8W
Content 1
Variants from 397.23€ * 422.45€ *
Order number: 6790-WW3000-GG

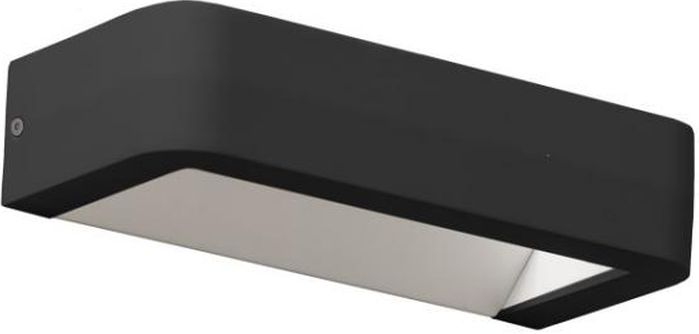

METOO luminaire product picture METOO LED Wall mounted luminaire 14 W
