Jolly US PLV with touch dimming potential-free
- Order number: 125425
- Hersteller-Nr.: 125425
- Weight: 0.11 kg
- GTIN/EAN: 8010703375680
- Manufacturer: TCI TELECOMUNICAZIONI ITALIA S.R.L.
TCI DC Jolly US PLV - Professional LED driver LED driver with 20 Watt, constant... more
TCI DC Jolly US PLV - Professional LED driver
LED driver with 20 Watt, constant current or voltage programmable via dip switches.
Features of the LED driver:
- Multipower driver supplied with dip-switch for the selection of the output current and voltage
- IP20 independent driver, for indoor use
- Class II protection against electric shock for direct or indirect contact
- Active Power Factor Corrector
- Current regulation ±5 % including temperature variations
- Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15)
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
- Thermal protection = C.5.a.
| Dip-SW | Power | Voltage out | Current out |
|---|---|---|---|
| Position 1 | 13 W | 15-53 V max. | 250mA const |
| Position 2 | 16 W | 15-53 V max. | 300mA const |
| Position 3 | 18 W | 10-53 V max. | 350mA const |
| Position 4 | 21 W | 10-53 V max. | 400mA const |
| Position 5 | 23 W | 5-52 V max. | 450mA const |
| Position 6 | 25 W | 2-50 V max. | 500mA const |
| Position 7 | 27 W | 2-50 V max. | 550mA const |
| Position 8 | 30 W | 2-50 V max. | 600mA const |
| Position 9 | 32 W | 2-49 V max. | 650mA const |
| Position 10 | 32 W | 2-46 V max. | 700mA const |
| Position 11 | 20 W | 2-27 V max. | 750mA const |
| Position 12 | 20 W | 2-25 V max. | 800 mA const |
| Position 13 | 20 W | 2-24 V max. | 850 mA const |
| Position 14 | 20 W | 2-22 V max | 900 mA const |
| Position 15 | 11 W | 12V const | 900 mA max. |
| Position 16 | 20 W | 24V const | 830 mA max. |
Efficiency as a function of power:> 88

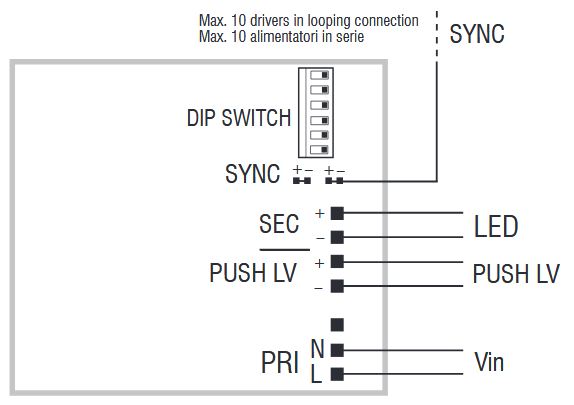

- All TCI Maxi Jolly LED converters can be connected via sync cables. Thus the control of further LED drivers is possible via only one button or one LED driver DALI. Save costs!
- Up to 10 LED converters (slave) can be operated via one master.
Please refer to the data sheet for a detailed description.
Related links to "Jolly US PLV with touch dimming potential-free"
LED driver DALI 20W versatile programmable. 250 -900mA const. 12/24V const. 125425 - All-rounder more
Features/tags of this product family. Please refer about the details in the description or datasheet.
| Constant Voltage: | 12V, 24V |
| Power range: | 5 - 20 W, 20 - 50 W |
| Dimmable/Control: | Push-Button |
| Constant Current: | 0,3A, 0,4A, 0,5A, 0,6A, 0,7A, 0,8A, 0,9A, 0,25A, 0,35A, 0,55A, 0,65A, 0,75A, 0,85A |
| Application/IP-Code: | IP20 - IP44 (Indoor) |
| #Kategoriefilter: | LED-Trafos- alles mit CV, LED-Treiber-alles mit CC |
