TCI MAXI JOLLY SV 70 NFC DALI

Product information "TCI MAXI JOLLY SV 70 NFC DALI"

TCI MAXI JOLLY SV 70 DALI NFC (142100 / 142102)

The TCI MAXI JOLLY SV 70 DALI NFC is a versatile, dimmable multipower LED driver with NFC programming for selecting output currents (300–1400 mA in 1 mA steps). It supports DALI-2, 0/1–10V, Push-Dim and ADIM, offering amplitude dimming for flicker-free light with excellent visual comfort. Additionally, the RIPPLE-FREE technology (<=3%) ensures consistent, stable light Output.

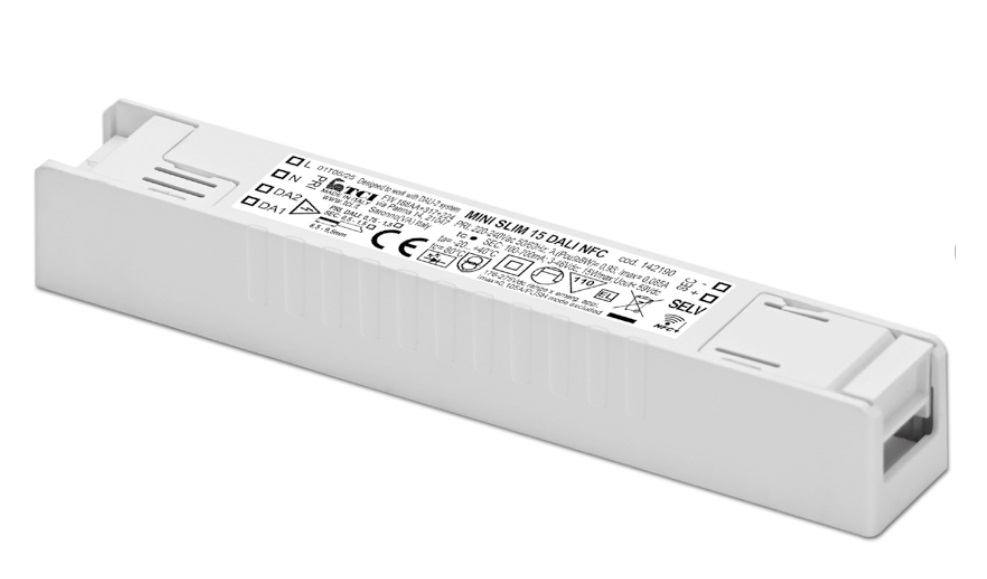

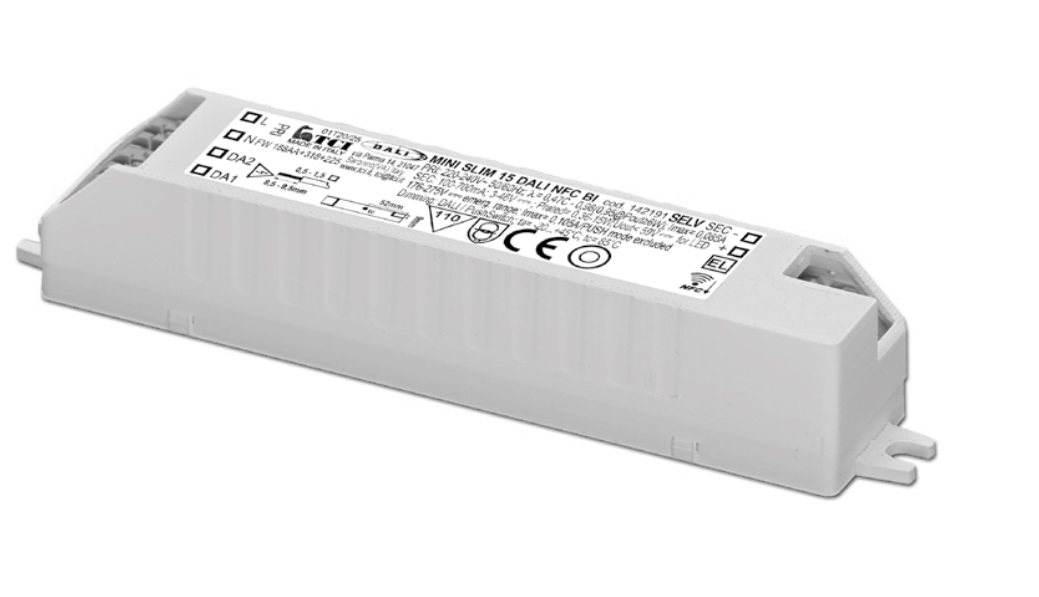

The driver is available in two versions: as a stand-alone device (IP20) for indoor use or as a built-in version (BI) for integration into luminaires. Both versions are ENEC and CE certified and suitable for Class I and II luminaires.

Thanks to RIPPLE-FREE technology (<= 3%), the driver produces a smooth, low-ripple output voltage. This provides stable, flicker-free lighting, making it particularly suitable for demanding applications such as offices, schools or studios.

In addition, the driver meets the requirements of the PstLM value (short-term flicker severity index). With PstLM ≤ 1.0, it guarantees standard-compliant, practically flicker-free lighting according to the EU Ecodesign Directive. This ensures high light quality that supports comfort and well-being.

In addition to DALI-2, the driver offers ADIM (analogue dimming) for easy integration into existing control systems. With AM dimming technology (Amplitude Modulation), brightness is controlled by current regulation – completely flicker-free even at low dimming levels.

In combination with Dim-to-Warm concepts, the colour temperature can be dynamically lowered when dimming. This creates a warm,

Thanks to integrated NFC programming, the driver can be configured quickly and wirelessly. Output currents and operating parameters can be set via smartphone or NFC programming device – without direct access to terminals or opening the housing. This simplifies the series programming of multiple drivers, saves time and reduces errors. Adjustments can also be made easily after installation, ensuring maximum flexibility for maintenance and modifications.

Features TCI MAXI JOLLY SV 70 DALI NFC

  • DALI-2 interface with extensive control functions
  • NFC programming for quick and flexible configuration
  • Multipower output: 300–1400 mA
  • AM dimming and Dim-to-Warm support
  • PstLM-compliant, flicker-free lighting
  • RIPPLE FREE output for stable, eye-friendly lighting comfort
  • Active power factor correction (PFC >0.9)
  • Thermal, short-circuit, overvoltage and overload protection
  • ENEC and CE certified

Technical Data

Property142100142102 – BI version (Built-in)
Input voltage110–127 V / 220–240 V AC (99–264 V AC range)
Frequency50 / 60 Hz
Power range1–70 W
Output current300–1400 mA, programmable via NFC
Output voltage3–54 V DC
Efficiency> 91 %
Power factorλ = 0.93 (at full load)
Ripple<= 3 % (RIPPLE FREE)
Standby consumption<= 0.5 W
Inrush current5 A / 50 µs
Operating temperature-25 °C … +45/50 °C
Max. Tc85 °C
Dimensions (L x W x H)124 x 84 x 22 mm111 x 79 x 22 mm
Protection classIP20
Weight215 g198 g

Further technical details about the TCI MAXI JOLLY SV 70 DALI NFC can be found in the datasheet.

Properties "TCI MAXI JOLLY SV 70 NFC DALI"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Constant Current: Programmable, 0,1A, 0,15A, 0,2A, 0,25A, 0,3A, 0,35A, 0,4A, 0,45A, 0,5A, 0,6A, 0,7A, 1,1A, 1,3A
·Dimmable/Control: 1..10V, DALI, DALI2, Linear/AM, Push-Button
·Power range: 1 - 5 W, 5 - 20 W
Datasheet & further Infos about this product

TCI MINI SLIM 15 DALI NFC

Datasheet to 142190 and 142191

synchronization of TCI LED drivers with SwitchDim function (touch dimming)

SwitchDim touch dimming instructions for synchronization problems

Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma, 14 – Saronno 21047 (VA) – Italy


E-Mail: m.librandi@tci.it
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
