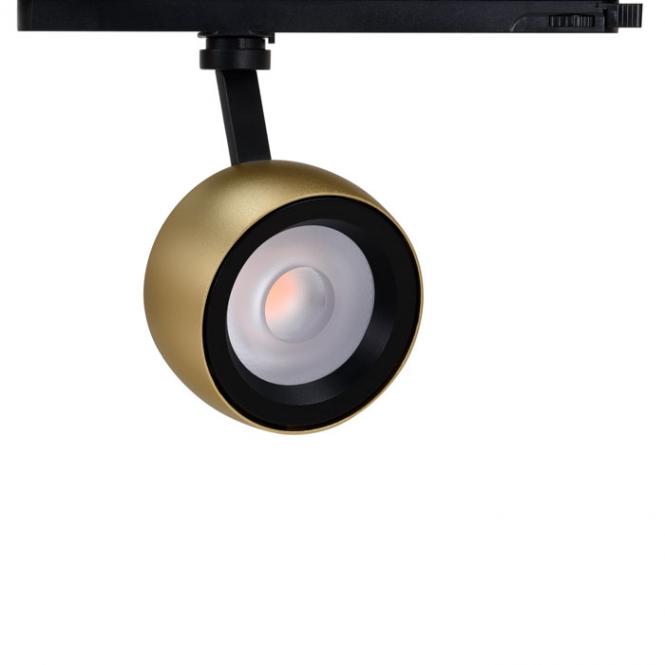

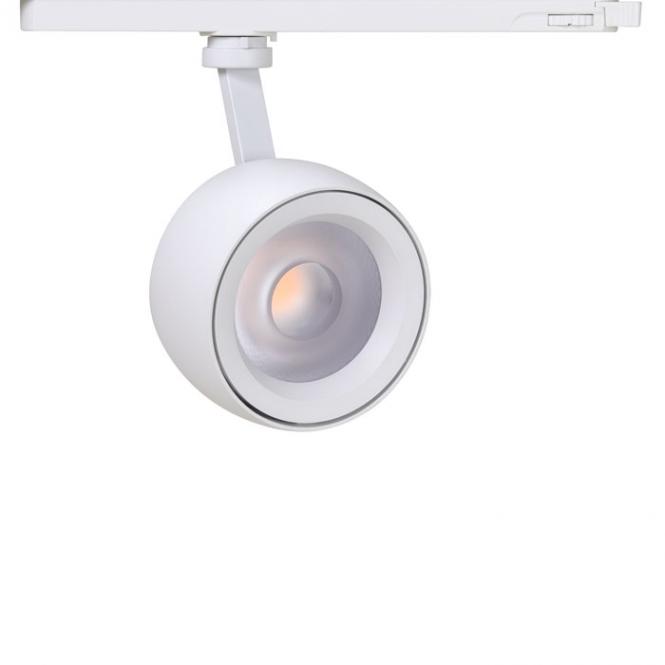

MAYA Track spotlights

Variant

27 %

€119.45*

net-price: €100.38 % €163.63* (27% saved)

Prices incl. VAT plus shipping costs

delivery time 3-5 Working days*

Product number: Maya25-2-WW-15

Manufacturer: ALS GmbH

Manufacturer product number: MAYA-25WW12-2S

Weight: 0.887 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "MAYA Track spotlights"

Elegant LED ceiling recessed luminaire 13W with reflector and COB

You know that. The whole ceiling is covered with LED-Spots with different diameters. It is like a starry sky, but mostly the bright light points or round little light surfaces of the spots or panels are blinding.

The solution:
These LED ceiling recessed luminaire have their LED-COB light source strongly moved upwards inside the lamp. The light is given out and spread through a reflector of the luminaire. This is how you get an unique outcome. You sit in a pleasantly bright room but still you don't really recognize the luminaires.

A perfect solution for challenging rooms. From living rooms, to conference rooms and off course hotels and many more.

With 13W you reach a better brightness than with a 100W bulb lamp. With 3000K you get a pleasant warm white light.
The luminaire is available with different assembly rings. (angular, round, white, different width).
Furthermore you can choose between different ballasts. Choose the most suitable system for your purposes for the dimming of the LED ceiling-installation lamp.

Overview of the LED ceiling recessed luminaire lamp 13W:

Housing from sheet metal, chromed,
Cooling fins from aluminium,black, fixed
COB-LED-module
Kit with different, external ballasts choosable or separately.
Number of light sources : 1 x COB 13W
Different attachments choosable (round/angular, 120mm/140mm)

Please note: A ceiling frame is mandatory for ceiling installation!

You can operate multiple luminaires in series on one ballast and save money with this. A description of these possibilities references for the dimming variants you find here.
Or contact us.

Technical data of the recessed luminaire LED-COB:

Light source, Socket :	COB-LED
Light current :	1141 lm
Colour temperature :	3000 K
Light colour :	warm white
Colour reproduction :	>80 CRI
Power supply :	ballasts (see options)
Connecting voltage :	220-240 V
Connecting power (LED-module):	13 W at 350mA
System efficiency :	88 lm/W
Energy efficiency :	A++ - A
Protection type :	20
Test mark :	CE
Height :	109 mm
Outside diameter :	96 mm (without attachment round/angular)
Colour :	white
Radiation angle :	69° (see LVK in the download area)

Note:
The products from the manufacturer ALS are custom-made specifically for you according to your specifications. This also explains the longer delivery time depending on the workload.

Properties "MAYA Track spotlights"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Color Temperature/Color:	2700K, 3000K, 4000K
·Lamp shape:	Power rail
·Power range:	5 - 20 W

Datasheet & further Infos about this product

Datasheet MAYA-25SW11-1

More information about Maya Downlight

Manufacturer "ALS GmbH"

A.L.S. GmbH

is a supplier and manufacturer of lighting systems as well as a service provider of lighting concepts.The main focus at A.L.S is the production of lighting elements, lamps and accessories.

For more than 10 years we have been offering more than 100 products form the manufacture ALS worldwide.
Below is our Portfolio of products. Tip: Use the filter function to quickly find the Light source you Need, or give us a call.

A.L.S. Architektonische Lichtsysteme GmbH.
Mastorter Straße 31 - 88069 Tettnang - Germany

E-Mail: info@als.de

Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
